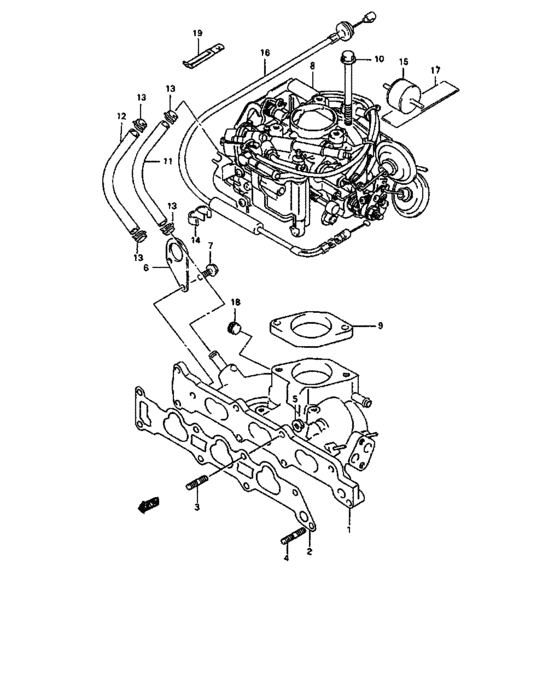

Intake manifold and carburetor (Hong Kong) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-71G00-000
マニホールド,インテーク
|
13110-71G00-000 |
— | ||
| replacement | |||||
|
1
|
1
13110-71GV0-000
MANIFOLD,INTK
|
13110-71GV0-000 |
— | ||
|
1
|
1
13110-71G10-000
マニホールド,インテーク
JSAEHA11S00100349~ |
13110-71G10-000 |
— | ||
| replacement | |||||
|
1
|
1
13110-71GV0-000
MANIFOLD,INTK
JSAEHA11S00100349~ |
13110-71GV0-000 |
— | ||
|
2
|
2
13119-71G00-000 GASKET,INTK MANF |
13119-71G00-000 |
US $16.80 |
||
|
3
|
3
01411-06203-000
New Genuine Part
|
01411-06203-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0620A-000 BOLT,STUD |
01411-0620A-000 |
US $0.91 |
||
|
4
|
4
01411-06253-000
Bolt, stud
|
01411-06253-000 |
— | ||
| replacement | |||||
|
4
|
4
01411-0625A-000 BOLT,STUD |
01411-0625A-000 |
US $0.96 |
||
|
5
|
5
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
11851-70B01-000
HOOK,ENGINE
|
11851-70B01-000 |
— | ||
|
7
|
7
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
8
|
8
13200-71G01-000
CARBURETOR ASSY
MT |
13200-71G01-000 |
— | ||
|
9
|
9
13121-72X51-000 INSULATOR,CARBURETOR |
13121-72X51-000 |
US $16.45 |
||
|
10
|
10
01550-08753-000
Bolt
|
01550-08753-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0875B-000 BOLT |
01550-0875B-000 |
from US $1.40 |
||
|
10
|
10
01550-0875A-000 BOLT |
01550-0875A-000 |
from US $1.60 |
||
|
11
|
11
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600->120 |
09352-70121-600 |
from US $4.64 |
||
|
12
|
12
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600->210 |
09352-70121-600 |
from US $4.64 |
||
|
13
|
13
09401-11407-000
CLIP
TYPE 1 |
09401-11407-000 |
— | ||
| replacement | |||||
|
13
|
13
09401-11415-000 CLIPTYPE 1 |
09401-11415-000 |
from US $1.06 |
||
|
13
|
13
09401-11415-000 CLIPTYPE 2 |
09401-11415-000 |
from US $1.06 |
||
|
14
|
14
09408-00100-000 CLIP |
09408-00100-000 |
US $19.50 |
||
|
15
|
15
18114-80010-000 JET |
18114-80010-000 |
US $23.55 |
||
|
16
|
16
15910-70G01-000
ケーブルアッシ,アクセル
|
15910-70G01-000 |
— | ||
| replacement | |||||
|
16
|
16
15910-70G02-000 CABLE ASSY,ACCEL |
15910-70G02-000 |
US $43.42 |
||
|
17
|
17
15439-73B00-000
CUSHION,VACUUM HOSE
|
15439-73B00-000 |
— | ||
|
18
|
18
09246-08002-000 PLUG~JSAEHA11S00100348 |
09246-08002-000 |
US $18 |
||
|
19
|
19
09404-06432-000
CLAMP(L:65)
JSAEHA11S00110302~ |
09404-06432-000 |
— | ||
| replacement | |||||
|
19
|
19
09404-06039-000 Clamp(L:65)JSAEHA11S00110302~ |
09404-06039-000 |
from US $1.82 |
||
