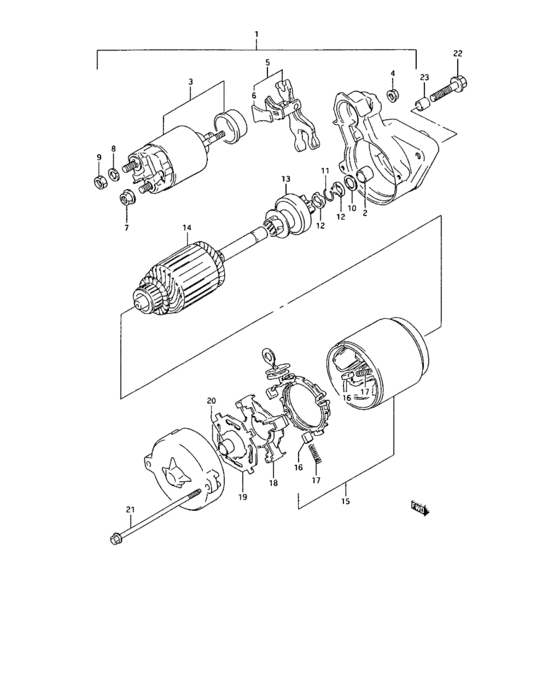

Starting motor (STARTING MOTOR) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Asia
- transmission
- 4MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-70B21-000
Motor assy,starting
|
31100-70B21-000 |
— | ||
|
2
|
2
31152-51A10-000 BUSH |
31152-51A10-000 |
from US $2.77 |
||
|
3
|
3
31220-51A10-000 SWITCH ASSY |
31220-51A10-000 |
from US $99.16 |
||
|
4
|
4
31255-78210-000
ナット
|
31255-78210-000 |
— | ||
| replacements | |||||
|
4
|
4
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
4
|
4
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
5
|
5
31191-85020-000 LEVER ASSY |
31191-85020-000 |
from US $9.27 |
||
|
6
|
6
31264-51A10-000
SEAL,STARTER
|
31264-51A10-000 |
— | ||
|
7
|
7
31266-78221-000
ナット
|
31266-78221-000 |
— | ||
| replacements | |||||
|
7
|
7
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
7
|
7
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
8
|
8
08321-01083-000
Lock washer
|
08321-01083-000 |
— | ||
| replacements | |||||
|
8
|
8
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
8
|
8
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.88 |
||
|
9
|
9
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
9
|
9
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
9
|
9
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
10
|
10
31153-51A10-000 WASHER |
31153-51A10-000 |
from US $0.68 |
||
|
11
|
11
31312-51A10-000 RING,SNAP |
31312-51A10-000 |
from US $1.71 |
||
|
12
|
12
31313-51A10-000
NUT
|
31313-51A10-000 |
— | ||
| replacement | |||||
|
12
|
12
31310-51A10-000 NUT,PINION STOP |
31310-51A10-000 |
from US $11.18 |
||
|
13
|
13
31320-80110-000
CLUTCH ASSY
|
31320-80110-000 |
— | ||
|
14
|
14
31311-80110-000 ARMATURE |
31311-80110-000 |
US $303.60 |
||
|
15
|
15
31110-52A50-000 YOKE ASSY |
31110-52A50-000 |
US $206.08 |
||
|
16
|
16
31131-51A10-000 BRUSH |
31131-51A10-000 |
from US $5.36 |
||
|
17
|
17
31135-51A10-000 SPRING,BRUSH |
31135-51A10-000 |
from US $1.58 |
||
|
18
|
18
31173-51A10-000 HOLDER,BRUSH |
31173-51A10-000 |
from US $21.89 |
||
|
19
|
19
31175-51A10-000 INSULATOR |
31175-51A10-000 |
from US $1.46 |
||
|
20
|
20
31172-51A10-000 BUSH |
31172-51A10-000 |
from US $2.41 |
||
|
21
|
21
31281-51A10-000 Bolt |
31281-51A10-000 |
from US $2.57 |
||
|
22
|
22
01550-08403-000
Bolt
|
01550-08403-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
22
|
22
01550-0840A-000 Bolt |
01550-0840A-000 |
from US $1.12 |
||
|
23
|
23
04211-11129-000 PIN |
04211-11129-000 |
from US $0.99 |
||
