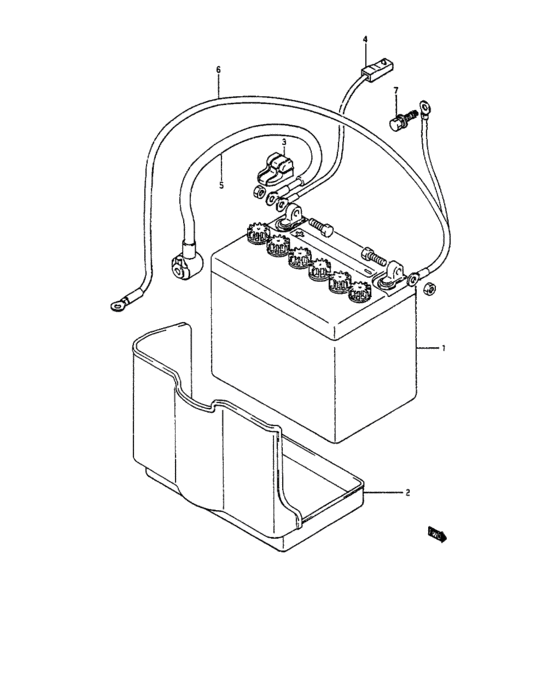

Battery (BATTERY) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-71520-000
Battery
|
33610-71520-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-87432-000
New Genuine Part
|
33610-87432-000 |
— | ||
|
2
|
2
33660-78000-000 TRAY,BATTERY |
33660-78000-000 |
US $16.41 |
||
|
3
|
3
33613-78000-000
インシュレータ,プラスターミナル
|
33613-78000-000 |
— | ||
|
4
|
4
36740-80000-000 FUSIBLE LINK |
36740-80000-000 |
US $21.60 |
||
|
5
|
5
33810-84000-000 CABLE,STG MOTOR |
33810-84000-000 |
US $53.20 |
||
|
6
|
6
33850-78002-000
Cable, ground
MT |
33850-78002-000 |
— | ||
| replacement | |||||
|
6
|
6
33850-80050-000
CABLE,BTRY GND
MT |
33850-80050-000 |
— | ||
|
7
|
7
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
7
|
7
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
