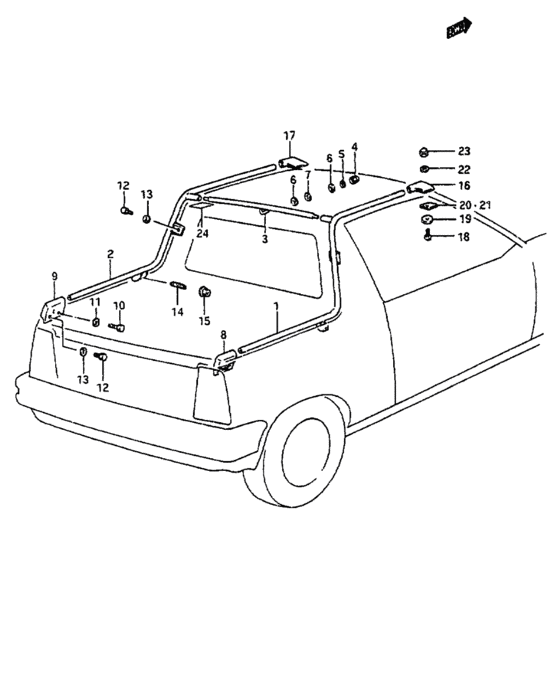

Deck rail pipe (DECK RAIL PIPE) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78610-81100-000
Pipe,deck side rail,r
|
78610-81100-000 |
— | ||
|
2
|
2
78620-81100-000
Pipe, deck side rail lh
|
78620-81100-000 |
— | ||
|
3
|
3
78630-81100-000
Pipe, deck upper cross
|
78630-81100-000 |
— | ||
| replacement | |||||
|
3
|
3
78681-81100-000
PACKING,DECK SIDE PIPE
|
78681-81100-000 |
— | ||
|
4
|
4
08313-11066-000
ナット
|
08313-11066-000 |
— | ||
| replacements | |||||
|
4
|
4
08313-1006A-000 NUT |
08313-1006A-000 |
from US $0.80 |
||
|
4
|
4
08313-1006B-000 NUT |
08313-1006B-000 |
from US $0.80 |
||
|
5
|
5
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
6
|
6
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
6
|
6
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
7
|
7
09161-06008-000 WASHER(6.5X13X1) |
09161-06008-000 |
from US $1.10 |
||
|
8
|
8
78661-81100-000
Support, deck side pipe rr rh
|
78661-81100-000 |
— | ||
|
9
|
9
78662-81100-000
SUPPORT,DECK SIDE PIPE REAR,L
|
78662-81100-000 |
— | ||
|
10
|
10
09128-06022-000
Bolt tensioner
|
09128-06022-000 |
— | ||
| replacement | |||||
|
10
|
10
09103-06212-000 BOLT(6X25) |
09103-06212-000 |
from US $0.91 |
||
|
11
|
11
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
11
|
11
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
12
|
12
09128-06042-000
Screw
|
09128-06042-000 |
— | ||
| replacement | |||||
|
12
|
12
09128-06045-000 BOLT(6X12) |
09128-06045-000 |
US $1.07 |
||
|
13
|
13
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
13
|
13
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
14
|
14
09108-06080-000
Stud bolt
|
09108-06080-000 |
— | ||
|
15
|
15
08316-16064-000
Nut
|
08316-16064-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
16
|
16
78651-81100-000
Support, deck side pipe fr rh
|
78651-81100-000 |
— | ||
|
17
|
17
78652-81100-000
Support, deck side pipe fr lh
|
78652-81100-000 |
— | ||
|
18
|
18
02112-06166-000
Screw
|
02112-06166-000 |
— | ||
| replacements | |||||
|
18
|
18
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.96 |
||
|
18
|
18
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
19
|
19
09161-06018-896
Washer
|
09161-06018-896 |
— | ||
|
20
|
20
78653-81100-000
Packing, deck side pipe,rh
|
78653-81100-000 |
— | ||
|
21
|
21
78654-81100-000
Packing,deck side pipe sprp,l
|
78654-81100-000 |
— | ||
|
22
|
22
78655-81100-000
WASHER
|
78655-81100-000 |
— | ||
|
23
|
23
08313-11063-000 New Genuine Part |
08313-11063-000 |
US $1.03 |
||
| replacements | |||||
|
23
|
23
08313-1006A-000 NUT |
08313-1006A-000 |
from US $0.80 |
||
|
23
|
23
08313-1006B-000 NUT |
08313-1006B-000 |
from US $0.80 |
||
|
24
|
24
78671-81100-000
FILM,DECK SIDE PIPE
|
78671-81100-000 |
— | ||
