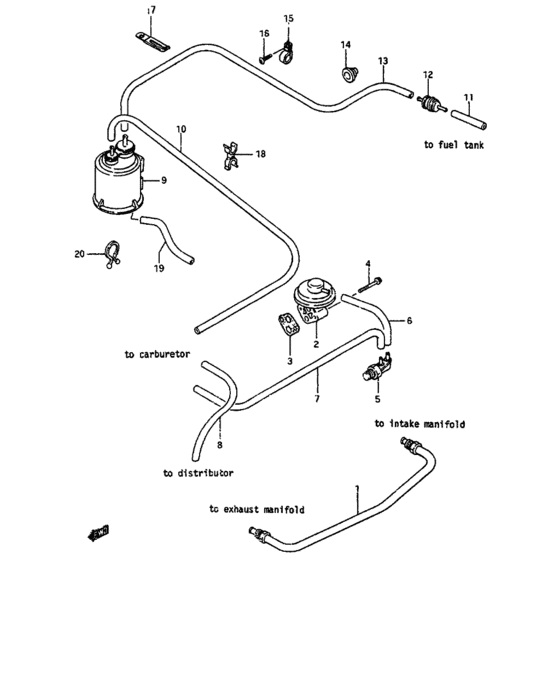

Emission control (MT) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18530-84000-000
パイプ,EGR
|
18530-84000-000 |
— | ||
|
2
|
2
18111-81100-000
Valve, egr
|
18111-81100-000 |
— | ||
|
3
|
3
18529-78101-000
ガスケット,EGRバルブ
|
18529-78101-000 |
— | ||
| replacement | |||||
|
3
|
3
18529-60A00-000 GASKET,EGR VALVE |
18529-60A00-000 |
US $1.60 |
||
|
4
|
4
01537-06453-000
ボルト
|
01537-06453-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0645A-000 Bolt |
01550-0645A-000 |
from US $0.96 |
||
|
5
|
5
18550-78101-000 VALVE ASSY,BIMETAL SW BVS |
18550-78101-000 |
US $84.80 |
||
|
6
|
6
09343-03079-000
New Genuine Part
|
09343-03079-000 |
— | ||
| replacements | |||||
|
6
|
6
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
6
|
6
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.74 |
||
|
7
|
7
09343-03096-000
ホース,#8/3.5X7.5X170
|
09343-03096-000 |
— | ||
| replacements | |||||
|
7
|
7
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
7
|
7
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.74 |
||
|
8
|
8
09343-03100-000
New Genuine Part
|
09343-03100-000 |
— | ||
| replacements | |||||
|
8
|
8
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
8
|
8
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.74 |
||
|
9
|
9
18560-78400-000
Canister
|
18560-78400-000 |
— | ||
|
10
|
10
09343-03084-000
Hose, canister to carb
L:600 |
09343-03084-000 |
— | ||
| replacements | |||||
|
10
|
10
09355-35754-601
HOSE(3.5X7.5X601)
L:600 |
09355-35754-601 |
— | ||
|
10
|
10
09355-35006-601 Hose(3.5X7.5X601)L:600 |
09355-35006-601 |
from US $5.74 |
||
|
11
|
11
09343-05278-000
Hose, tank to valve
L:90 |
09343-05278-000 |
— | ||
| replacements | |||||
|
11
|
11
09354-53103-600
HOSE(5.3X10.5X600)
L:90 |
09354-53103-600 |
— | ||
|
11
|
11
09355-53001-600 Hose(5.3X10.5X600)L:90 |
09355-53001-600 |
from US $7 |
||
|
12
|
12
85451-75100-000 VALVE,2WAY CHECKValve, check |
85451-75100-000 |
from US $30.40 |
||
|
13
|
13
09343-05290-000 Hose (5.3x10.5x600) filter->pumpL:600 |
09343-05290-000 |
US $11.24 |
||
| replacements | |||||
|
13
|
13
09354-53103-600
HOSE(5.3X10.5X600)
L:600 |
09354-53103-600 |
— | ||
|
13
|
13
09355-53001-600 Hose(5.3X10.5X600)L:600 |
09355-53001-600 |
from US $7 |
||
|
14
|
14
85428-78001-000 GROMMET |
85428-78001-000 |
US $9.28 |
||
|
15
|
15
09403-14402-000
CLAMP
|
09403-14402-000 |
— | ||
|
16
|
16
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
16
|
16
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
17
|
17
09404-06413-000
Clamp throttle
|
09404-06413-000 |
— | ||
| replacements | |||||
|
17
|
17
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
17
|
17
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
18
|
18
09408-00056-000 CLIP |
09408-00056-000 |
from US $4.22 |
||
|
19
|
19
09343-07161-000 ホース,7X12X170 |
09343-07161-000 |
US $5.74 |
||
| replacements | |||||
|
19
|
19
09354-65113-600
HOSE(6.5X11.5X600)
|
09354-65113-600 |
— | ||
|
19
|
19
44421-12FR0-000 HOSE |
44421-12FR0-000 |
from US $16.64 |
||
|
19
|
19
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) |
09355-70125-600 |
from US $6.17 |
||
|
19
|
19
09355-65001-600 Hose(6.5X11.5X600) |
09355-65001-600 |
from US $14.74 |
||
|
20
|
20
09408-00021-000 CLIP(ID:16)Clip, oil warning reset sw |
09408-00021-000 |
US $9.20 |
||
