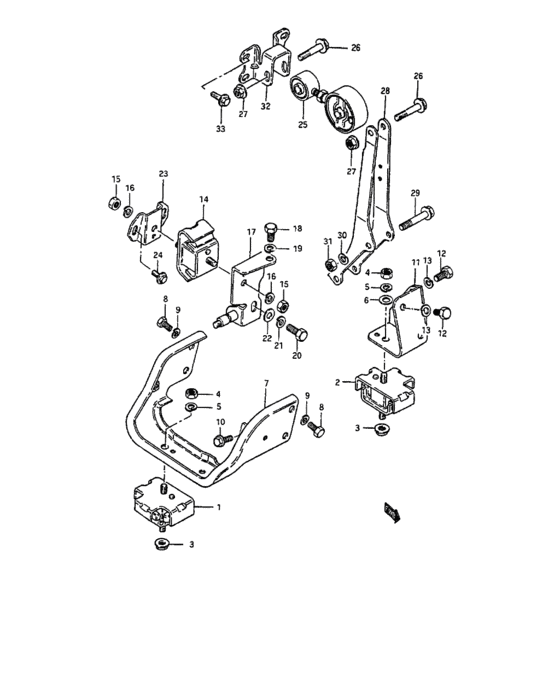

Engine mounting (MT) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-78001-000
Mounting, engine rh
|
11610-78001-000 |
— | ||
| replacement | |||||
|
1
|
1
11610-78231-000
MOUNTING,ENG,R
|
11610-78231-000 |
— | ||
|
2
|
2
11620-78001-000
Mounting, engine lh
|
11620-78001-000 |
— | ||
| replacement | |||||
|
2
|
2
11610-78231-000
MOUNTING,ENG,R
|
11610-78231-000 |
— | ||
|
3
|
3
09159-10014-000
Nut
|
09159-10014-000 |
— | ||
| replacement | |||||
|
3
|
3
09159-10046-XC0 NUT |
09159-10046-XC0 |
from US $2.77 |
||
|
4
|
4
08310-12103-000 Nut |
08310-12103-000 |
US $0.61 |
||
| replacements | |||||
|
4
|
4
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
4
|
4
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
5
|
5
08321-21103-000 Lock washer |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
5
|
5
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
5
|
5
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
6
|
6
09160-10020-000 WASHER(10.5X24X1)Washer (10.5x24x1.0) |
09160-10020-000 |
from US $2.82 |
||
|
7
|
7
11660-78110-000
Bracket, mounting rh
|
11660-78110-000 |
— | ||
|
8
|
8
01107-08203-000
Bolt
|
01107-08203-000 |
— | ||
| replacement | |||||
|
8
|
8
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
9
|
9
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
9
|
9
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
9
|
9
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
10
|
10
01517-08203-000
ボルト
|
01517-08203-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
10
|
10
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
11
|
11
11671-78001-000
Bracket, mounting lh
|
11671-78001-000 |
— | ||
|
12
|
12
01107-10203-000 ボルト |
01107-10203-000 |
US $2.22 |
||
| replacement | |||||
|
12
|
12
01500-1020B-000 BOLTBolt, axle bearing housing |
01500-1020B-000 |
from US $0.76 |
||
|
13
|
13
08321-21103-000 Lock washer |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
13
|
13
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
13
|
13
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
14
|
14
11710-78401-000
Mounting,engine,rear
|
11710-78401-000 |
— | ||
|
15
|
15
08310-12103-000 Nut |
08310-12103-000 |
US $0.61 |
||
| replacements | |||||
|
15
|
15
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
15
|
15
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
16
|
16
08321-21103-000 Lock washer |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
16
|
16
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
16
|
16
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
17
|
17
11730-78001-000
Bracket, rear mounting
|
11730-78001-000 |
— | ||
|
18
|
18
01107-10203-000 ボルト |
01107-10203-000 |
US $2.22 |
||
| replacement | |||||
|
18
|
18
01500-1020B-000 BOLTBolt, axle bearing housing |
01500-1020B-000 |
from US $0.76 |
||
|
19
|
19
08321-21103-000 Lock washer |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
19
|
19
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
19
|
19
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
20
|
20
01107-10253-000
ボルト
|
01107-10253-000 |
— | ||
| replacement | |||||
|
20
|
20
01500-1025A-000 Bolt |
01500-1025A-000 |
US $0.91 |
||
|
21
|
21
08321-21103-000 Lock washer |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
21
|
21
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
21
|
21
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
22
|
22
08322-11103-000 ワッシャ |
08322-11103-000 |
US $1.07 |
||
| replacements | |||||
|
22
|
22
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
22
|
22
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
23
|
23
11741-78001-000
Bracket, rear body side
|
11741-78001-000 |
— | ||
|
24
|
24
01537-08163-000
Bolt
|
01537-08163-000 |
— | ||
| replacement | |||||
|
24
|
24
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
25
|
25
11910-78101-000
Torque rod, rh
|
11910-78101-000 |
— | ||
| replacement | |||||
|
25
|
25
11910-78120-000
ROD,TORQUE
|
11910-78120-000 |
— | ||
|
26
|
26
09103-10047-000
Nut
|
09103-10047-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-1050B-000 BOLT |
01550-1050B-000 |
US $1.22 |
||
|
26
|
26
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
27
|
27
08316-16103-000 Nut |
08316-16103-000 |
US $1.30 |
||
| replacement | |||||
|
27
|
27
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
28
|
28
11921-78102-000
Bracket, rod engine side
|
11921-78102-000 |
— | ||
|
29
|
29
01107-10653-000 Bolt |
01107-10653-000 |
US $3.34 |
||
| replacement | |||||
|
29
|
29
01500-1065B-000 Bolt |
01500-1065B-000 |
from US $8.01 |
||
|
30
|
30
08321-21103-000 Lock washer |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
30
|
30
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
30
|
30
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
31
|
31
08310-12103-000 Nut |
08310-12103-000 |
US $0.61 |
||
| replacements | |||||
|
31
|
31
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
31
|
31
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
32
|
32
11931-81000-000
Bracket, rod body side
|
11931-81000-000 |
— | ||
|
33
|
33
01537-08163-000
Bolt
|
01537-08163-000 |
— | ||
| replacement | |||||
|
33
|
33
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
