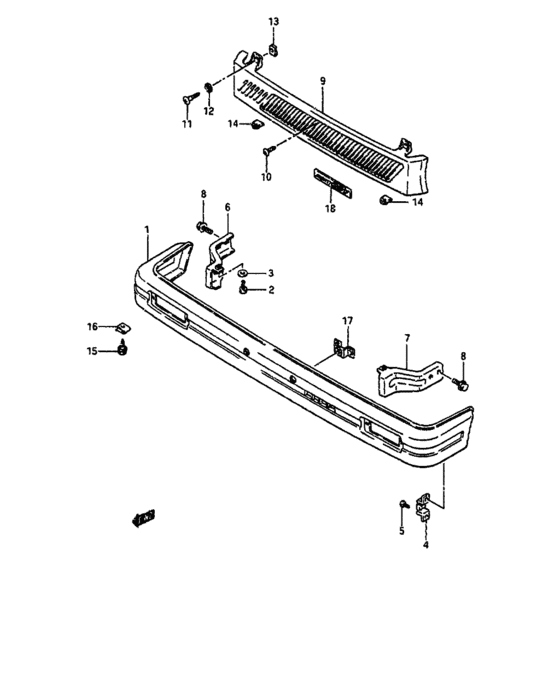

Front bumper (FRONT BUMPER) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-81000-281
BUMPER,FR(BLACK)
|
71711-81000-281 |
— | ||
|
2
|
2
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
2
|
2
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
3
|
3
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
3
|
3
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
4
|
4
71721-81000-000 STAY,FRONT BUMPER SIDE |
71721-81000-000 |
US $2.08 |
||
|
5
|
5
03241-04126-000
Screw l:12
|
03241-04126-000 |
— | ||
| replacement | |||||
|
5
|
5
03242-0412B-000 SCREW |
03242-0412B-000 |
from US $0.84 |
||
|
6
|
6
71741-81000-000
STAY,FRONT BUMPER,R
|
71741-81000-000 |
— | ||
|
7
|
7
71751-81000-000
STAY,FRONT BUMPER,L
|
71751-81000-000 |
— | ||
|
8
|
8
01517-08126-000
Bolt, front
|
01517-08126-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
8
|
8
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
|
9
|
9
72111-81002-7RT
Grille, radiator
ST' GERMAIN RED |
72111-81002-7RT |
— | ||
| replacement | |||||
|
9
|
9
72111-810V0-000
Grille,radiator
ST' GERMAIN RED |
72111-810V0-000 |
— | ||
|
9
|
9
72111-81002-7RS
Grille, radiator
WHITE |
72111-81002-7RS |
— | ||
| replacement | |||||
|
9
|
9
72111-810V0-000
Grille,radiator
WHITE |
72111-810V0-000 |
— | ||
|
9
|
9
72111-81002-7RW
Grille, radiator
CRYSTAL SILVER METALLIC |
72111-81002-7RW |
— | ||
| replacement | |||||
|
9
|
9
72111-810V0-000
Grille,radiator
CRYSTAL SILVER METALLIC |
72111-810V0-000 |
— | ||
|
9
|
9
72111-81002-7SA
Grille, radiator
LACOSTA BEIGE METALLIC |
72111-81002-7SA |
— | ||
|
9
|
9
72111-81002-7RU
Grille, radiator
CREAMY YELLOW |
72111-81002-7RU |
— | ||
| replacement | |||||
|
9
|
9
72111-810V0-000
Grille,radiator
CREAMY YELLOW |
72111-810V0-000 |
— | ||
|
9
|
9
72111-81002-7RV
Grille, radiator
UNIVERSAL BLACK |
72111-81002-7RV |
— | ||
| replacement | |||||
|
9
|
9
72111-810V0-000
Grille,radiator
UNIVERSAL BLACK |
72111-810V0-000 |
— | ||
|
9
|
9
72111-81002-7RZ
Grille, radiator
ABRIL BLUE METALLIC |
72111-81002-7RZ |
— | ||
|
9
|
9
72111-81002-7SB
Grille, radiator
BLUE VERT METALLIC |
72111-81002-7SB |
— | ||
| replacement | |||||
|
9
|
9
72111-810V0-000
Grille,radiator
BLUE VERT METALLIC |
72111-810V0-000 |
— | ||
|
9
|
9
72111-81002-7RY
Grille, radiator
SPANISH RED METALLIC |
72111-81002-7RY |
— | ||
| replacement | |||||
|
9
|
9
72111-810V0-000
Grille,radiator
SPANISH RED METALLIC |
72111-810V0-000 |
— | ||
|
10
|
10
03241-05123-000
Screw
|
03241-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
11
|
11
09139-05035-000
スクリュ
|
09139-05035-000 |
— | ||
| replacement | |||||
|
11
|
11
09139-05056-000 SCREW(5X15.5) |
09139-05056-000 |
US $1.22 |
||
|
12
|
12
09165-05006-000
ワッシャ
|
09165-05006-000 |
— | ||
|
13
|
13
09148-05003-000 NUT |
09148-05003-000 |
from US $0.70 |
||
|
14
|
14
09320-05014-000 CUSHION |
09320-05014-000 |
US $15.80 |
||
|
15
|
15
09136-05037-000
スクリュ
|
09136-05037-000 |
— | ||
| replacement | |||||
|
15
|
15
09139-05056-000 SCREW(5X15.5) |
09139-05056-000 |
US $1.22 |
||
|
16
|
16
09148-05003-000 NUT |
09148-05003-000 |
from US $0.70 |
||
|
17
|
17
57515-79001-000
RETAINER,LICENSE PLATE
|
57515-79001-000 |
— | ||
|
18
|
18
77821-81101-000
EMBLEM,RADIATOR GRILLE
|
77821-81101-000 |
— | ||
