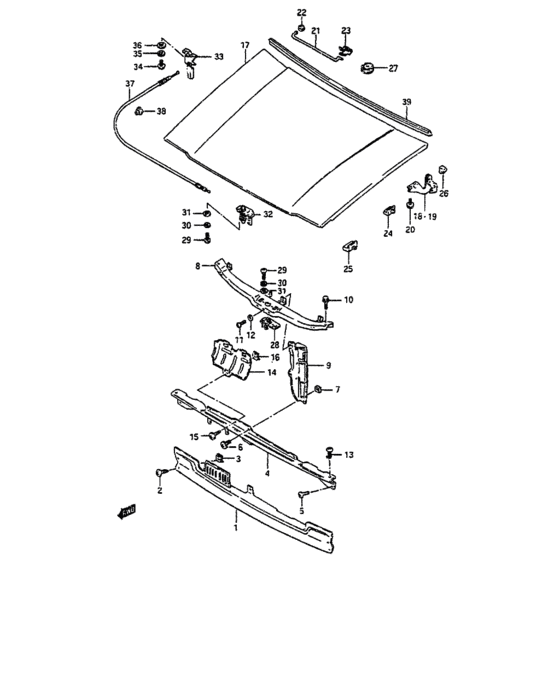

Front hood panel (FRONT HOOD PANEL) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57111-81001-000
PANEL,FRONT BALANCE
|
57111-81001-000 |
— | ||
|
2
|
2
03242-05169-000
Screw
|
03242-05169-000 |
— | ||
| replacement | |||||
|
2
|
2
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
3
|
3
09148-05003-000 NUT |
09148-05003-000 |
from US $0.70 |
||
|
4
|
4
57121-81001-000
PANEL,GRILLE LOWER
|
57121-81001-000 |
— | ||
|
5
|
5
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
5
|
5
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
6
|
6
03242-05129-000
Screw
|
03242-05129-000 |
— | ||
| replacement | |||||
|
6
|
6
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
7
|
7
09148-05003-000 NUT |
09148-05003-000 |
from US $0.70 |
||
|
8
|
8
57210-81004-000
Member, front upper
MT |
57210-81004-000 |
— | ||
|
9
|
9
57221-81001-000 MEMBER,FR CTR |
57221-81001-000 |
US $55.20 |
||
|
10
|
10
01517-06106-000
Bolt, t/f shift plate
|
01517-06106-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.96 |
||
|
10
|
10
01550-0610A-000 Bolt |
01550-0610A-000 |
from US $0.96 |
||
|
11
|
11
09128-06011-000
SCREW(6X12)
|
09128-06011-000 |
— | ||
| replacement | |||||
|
11
|
11
09128-06092-000 SCREW(6X12) |
09128-06092-000 |
from US $2.79 |
||
|
12
|
12
08322-21067-000
Washer
|
08322-21067-000 |
— | ||
| replacement | |||||
|
12
|
12
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
13
|
13
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
13
|
13
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
14
|
14
72611-81000-000
Water proof, plug
|
72611-81000-000 |
— | ||
|
15
|
15
03242-05129-000
Screw
|
03242-05129-000 |
— | ||
| replacement | |||||
|
15
|
15
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
16
|
16
09148-05003-000 NUT |
09148-05003-000 |
from US $0.70 |
||
|
17
|
17
57300-61001-000
Hood assy, front
|
57300-61001-000 |
— | ||
|
18
|
18
57410-81000-000
Hinge,fr hood rh
|
57410-81000-000 |
— | ||
|
19
|
19
57420-81000-000
Hinge,fr hood lh
|
57420-81000-000 |
— | ||
|
20
|
20
01517-06106-000
Bolt, t/f shift plate
|
01517-06106-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.96 |
||
|
20
|
20
01550-0610A-000 Bolt |
01550-0610A-000 |
from US $0.96 |
||
|
21
|
21
72311-81001-000
Stay,front hood
|
72311-81001-000 |
— | ||
|
22
|
22
09308-07012-000 GROMMET |
09308-07012-000 |
from US $0.74 |
||
|
23
|
23
09403-07311-000 CLAMP |
09403-07311-000 |
from US $1.31 |
||
|
24
|
24
09321-05009-000
Cushion, front hood
|
09321-05009-000 |
— | ||
|
25
|
25
09321-05018-000
Cushion, front hood front
|
09321-05018-000 |
— | ||
|
26
|
26
72361-81000-000
Dust seal, inner side
|
72361-81000-000 |
— | ||
|
27
|
27
09250-30008-000 CAP(OD:40) |
09250-30008-000 |
US $13.20 |
||
| replacement | |||||
|
27
|
27
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
|
28
|
28
82110-82000-000
ラッチ,フード
|
82110-82000-000 |
— | ||
| replacement | |||||
|
28
|
28
82110-82001-000 LATCH,HOOD |
82110-82001-000 |
from US $6.93 |
||
|
29
|
29
02112-06126-000
Screw 6x12
|
02112-06126-000 |
— | ||
| replacements | |||||
|
29
|
29
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
29
|
29
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
30
|
30
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
30
|
30
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
31
|
31
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
31
|
31
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
32
|
32
82120-81000-000
Striker, hood lock
|
82120-81000-000 |
— | ||
|
33
|
33
82150-81000-000
Lever, hood lock
|
82150-81000-000 |
— | ||
|
34
|
34
02112-06126-000
Screw 6x12
|
02112-06126-000 |
— | ||
| replacements | |||||
|
34
|
34
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
34
|
34
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
35
|
35
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
35
|
35
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
36
|
36
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
36
|
36
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
37
|
37
82160-81000-000
Cable, hood lock release
|
82160-81000-000 |
— | ||
|
38
|
38
82191-82000-000
グロメット,ラッチレリーズケーブル
|
82191-82000-000 |
— | ||
| replacement | |||||
|
38
|
38
82191-50E00-000 GROMMET,LATCH RELEASE CABLE |
82191-50E00-000 |
from US $2.16 |
||
|
39
|
39
79811-78000-000
Weathertrip, engine room,partition
|
79811-78000-000 |
— | ||
