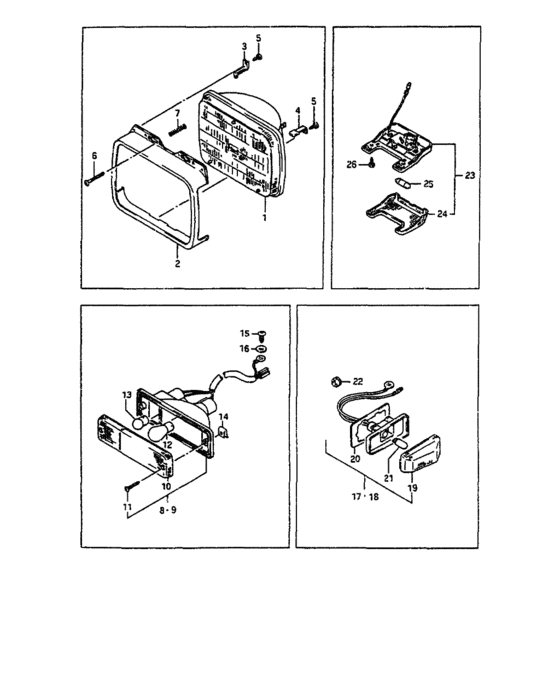

Front lamp (FRONT LAMP) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35121-81010-000
ユニット,ヘッドランプ
|
35121-81010-000 |
— | ||
| replacement | |||||
|
1
|
1
35121-77301-000 UNIT,LAMP KOITO |
35121-77301-000 |
US $243.20 |
||
|
2
|
2
35131-81010-000
RETAINER
|
35131-81010-000 |
— | ||
|
3
|
3
35136-81010-000
PLATE,NO.1
|
35136-81010-000 |
— | ||
|
4
|
4
35137-81010-000
PLATE,NO.2
|
35137-81010-000 |
— | ||
|
5
|
5
03212-04109-000
Screw 4x10
|
03212-04109-000 |
— | ||
| replacement | |||||
|
5
|
5
03211-0410B-000 SCREW |
03211-0410B-000 |
from US $0.80 |
||
|
6
|
6
35151-67020-000
Screw
|
35151-67020-000 |
— | ||
| replacement | |||||
|
6
|
6
09136-05031-000 SCREW(5X35) |
09136-05031-000 |
from US $0.65 |
||
|
7
|
7
35154-67020-000
Spring
|
35154-67020-000 |
— | ||
| replacement | |||||
|
7
|
7
09440-09020-000 SPRING |
09440-09020-000 |
from US $0.70 |
||
|
8
|
8
35601-81020-000 LAMP ASSY,FR COMB,R |
35601-81020-000 |
from US $35.42 |
||
|
9
|
9
35602-81020-000 LAMP ASSY,FR COMB,L |
35602-81020-000 |
from US $37.87 |
||
|
10
|
10
35612-81010-000 LENS |
35612-81010-000 |
from US $4.07 |
||
|
11
|
11
03112-04259-000
Screw tapping
|
03112-04259-000 |
— | ||
| replacement | |||||
|
11
|
11
03112-0425B-000 SCREW |
03112-0425B-000 |
US $0.96 |
||
|
12
|
12
09471-12045-000 BULB(12V21W) |
09471-12045-000 |
from US $3.11 |
||
|
13
|
13
09471-12059-000 Ampoule (12v,10w) |
09471-12059-000 |
from US $2.14 |
||
| replacement | |||||
|
13
|
13
09471-12140-000 BULB(12V5W) |
09471-12140-000 |
from US $2.03 |
||
|
14
|
14
09148-04019-000 Gsxgf nut lugga |
09148-04019-000 |
US $1.52 |
||
| replacement | |||||
|
14
|
14
09148-04015-000 NUT |
09148-04015-000 |
from US $1.60 |
||
|
15
|
15
03111-05126-000
New Genuine Part
|
03111-05126-000 |
— | ||
| replacement | |||||
|
15
|
15
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
16
|
16
08322-21056-000
Washer
|
08322-21056-000 |
— | ||
| replacements | |||||
|
16
|
16
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
16
|
16
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
17
|
17
36410-78040-000
Lamp assy, side turn signal rh
|
36410-78040-000 |
— | ||
| replacement | |||||
|
17
|
17
36410-78050-000
Lamp assy,side turn signal,r
|
36410-78050-000 |
— | ||
|
18
|
18
36430-78040-000
Lamp assy, side turn signal lh
|
36430-78040-000 |
— | ||
| replacement | |||||
|
18
|
18
36430-78050-000
Lamp assy,side turn signal,l
|
36430-78050-000 |
— | ||
|
19
|
19
36412-78040-000
Lens,side turn signal lamp
|
36412-78040-000 |
— | ||
|
20
|
20
36413-78041-000 GASKET |
36413-78041-000 |
US $19.76 |
||
|
21
|
21
09471-12076-000
Bulb (12v,5w)
|
09471-12076-000 |
— | ||
| replacement | |||||
|
21
|
21
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $3.02 |
||
|
22
|
22
09308-09014-000 GROMMET |
09308-09014-000 |
from US $0.74 |
||
|
23
|
23
36210-78012-000
ランプアッシ,ルーム
|
36210-78012-000 |
— | ||
| replacement | |||||
|
23
|
23
36210-78002-000 LAMP ASSY,ROOM |
36210-78002-000 |
US $51.52 |
||
|
24
|
24
36212-78001-000 LENS,ROOM LAMP |
36212-78001-000 |
from US $5.99 |
||
|
25
|
25
09471-12073-000 BULB(12V,5W) |
09471-12073-000 |
from US $2.39 |
||
|
26
|
26
03241-05108-000
New Genuine Part
|
03241-05108-000 |
— | ||
| replacements | |||||
|
26
|
26
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
26
|
26
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
