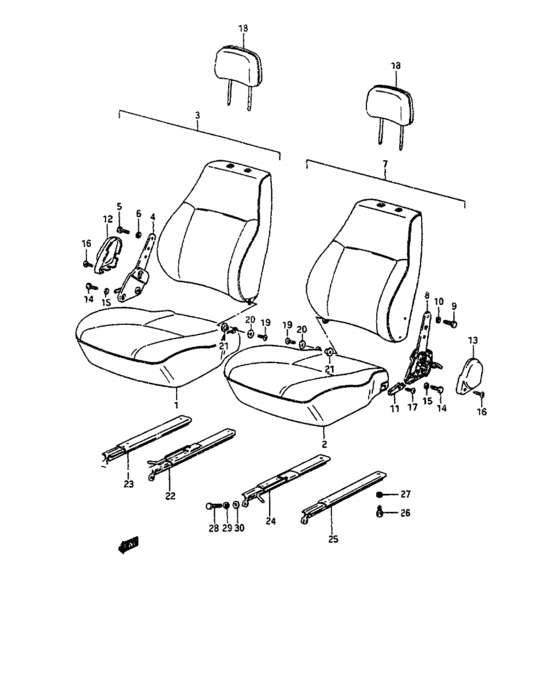

Front seat (FRONT SEAT) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-81060-7HM
Cushion assy, front rh
|
85101-81060-7HM |
— | ||
|
2
|
2
85102-81060-7HM
Cushion assy, front lh
|
85102-81060-7HM |
— | ||
|
3
|
3
85301-81060-7HM
Back assy, front rh
|
85301-81060-7HM |
— | ||
|
4
|
4
85210-81000-000
Reclining assy, rh
|
85210-81000-000 |
— | ||
|
5
|
5
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
5
|
5
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
6
|
6
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
6
|
6
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
6
|
6
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
7
|
7
85302-81060-7HM
Back assy, front lh
|
85302-81060-7HM |
— | ||
|
8
|
8
85710-81000-000
Reclining assy, lh
|
85710-81000-000 |
— | ||
|
9
|
9
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
10
|
10
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
10
|
10
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
10
|
10
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
11
|
11
85211-84100-281
ノブ,リクライニングアッシ(ブラック)
|
85211-84100-281 |
— | ||
| replacement | |||||
|
11
|
11
85211-84100-4BS
KNOB,RECLINING
|
85211-84100-4BS |
— | ||
|
12
|
12
85221-84000-281
カバー,リクライニングアッシ,ライト(ブラック)
|
85221-84000-281 |
— | ||
| replacement | |||||
|
12
|
12
85221-84000-5PK COVER,RECLINING ASSY,R |
85221-84000-5PK |
US $23.20 |
||
|
13
|
13
85721-84000-281
カバー,リクライニングアッシ,レフト(ブラック)
|
85721-84000-281 |
— | ||
| replacement | |||||
|
13
|
13
85721-84000-5PK COVER,RECLINING ASSY,L |
85721-84000-5PK |
US $23.20 |
||
|
14
|
14
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
14
|
14
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
15
|
15
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
15
|
15
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
15
|
15
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
16
|
16
03241-05125-000
Screw
|
03241-05125-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
17
|
17
03211-04105-000
スクリュ
|
03211-04105-000 |
— | ||
| replacement | |||||
|
17
|
17
03211-0410B-000 SCREW |
03211-0410B-000 |
from US $0.80 |
||
|
18
|
18
86401-81110-42F
Headrestraint assy
|
86401-81110-42F |
— | ||
|
19
|
19
02142-06125-000
Screw
|
02142-06125-000 |
— | ||
| replacements | |||||
|
19
|
19
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
19
|
19
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
20
|
20
09160-06039-000 Washer |
09160-06039-000 |
US $1.12 |
||
| replacement | |||||
|
20
|
20
09160-06109-000 WASHER(6.5X18X1.6) |
09160-06109-000 |
from US $0.80 |
||
|
21
|
21
85319-82000-000 BUSH,FR SEAT BACK FIXING |
85319-82000-000 |
US $1.92 |
||
|
22
|
22
86610-81000-000
Adjuster, inside
RH SEAT |
86610-81000-000 |
— | ||
|
23
|
23
86630-81000-000
Adjuster, outside
RH SEAT |
86630-81000-000 |
— | ||
|
24
|
24
86810-81000-000
Adjuster, inside
LH SEAT |
86810-81000-000 |
— | ||
|
25
|
25
86630-81000-000
Adjuster, outside
LH SEAT |
86630-81000-000 |
— | ||
|
26
|
26
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
26
|
26
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
27
|
27
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
27
|
27
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
28
|
28
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
28
|
28
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
29
|
29
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
29
|
29
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
29
|
29
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
30
|
30
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
30
|
30
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
30
|
30
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
