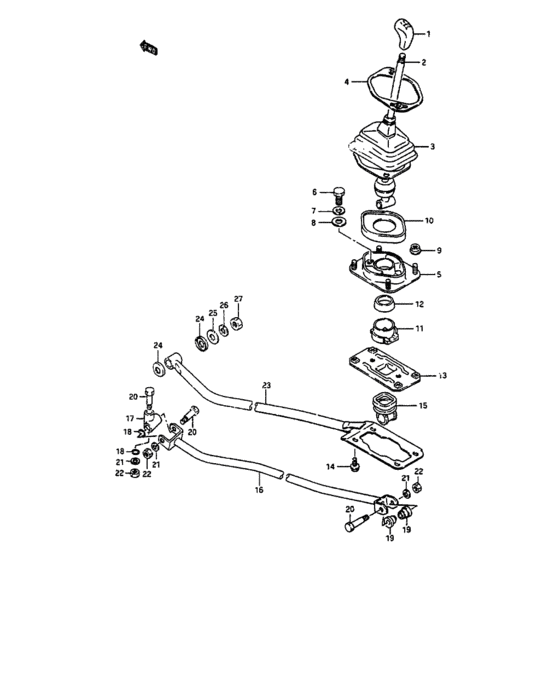

Gear shift control (MT) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28113-84000-281
ノブ(ブラック)
|
28113-84000-281 |
— | ||
| replacement | |||||
|
1
|
1
28113-50E20-6GL KNOB,GEAR SHF CONT LVR |
28113-50E20-6GL |
US $29.61 |
||
|
2
|
2
28110-78003-000
LEVER
|
28110-78003-000 |
— | ||
|
3
|
3
28135-78000-000 BOOT,GR SHF CONT LEVER |
28135-78000-000 |
from US $5.92 |
||
|
4
|
4
28145-78000-000
カバー,ギヤシフトコントロールブーツ
|
28145-78000-000 |
— | ||
| replacement | |||||
|
4
|
4
28145-70G00-000 COVER,GEAR SHF CONT BOOT |
28145-70G00-000 |
US $12.16 |
||
|
5
|
5
28180-78002-000 HOUSING,LEVER |
28180-78002-000 |
from US $7.07 |
||
|
6
|
6
01107-10163-000
ボルト
|
01107-10163-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-1016B-000 BoltPlug, oil drain |
01500-1016B-000 |
US $17.30 |
||
|
7
|
7
08321-21103-000 Lock washer |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
7
|
7
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.96 |
||
|
7
|
7
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.96 |
||
|
8
|
8
08322-11103-000 WASHER 105X18X16 |
08322-11103-000 |
from US $0.97 |
||
| replacements | |||||
|
8
|
8
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
8
|
8
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
9
|
9
08316-16083-000 NutNut |
08316-16083-000 |
from US $1.94 |
||
| replacement | |||||
|
9
|
9
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
10
|
10
28189-78000-000 COVER,GEAR HOUSING DUST SEAL |
28189-78000-000 |
US $1.60 |
||
|
11
|
11
28115-78140-000
Seat, gear shift lever
|
28115-78140-000 |
— | ||
| replacement | |||||
|
11
|
11
28115-78141-000 SEAT,GEAR SHIFT CONT NO.1 |
28115-78141-000 |
from US $2.57 |
||
|
12
|
12
28117-78100-000 SEAT,LEVER NO.2 |
28117-78100-000 |
from US $3.71 |
||
|
13
|
13
28190-78002-000
Plate, control lever guide
|
28190-78002-000 |
— | ||
| replacement | |||||
|
13
|
13
28190-78003-000 PLATE,CONT LEVER GUIDE |
28190-78003-000 |
US $23.18 |
||
|
14
|
14
01537-06103-000
Bolt
|
01537-06103-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0610A-000 Bolt |
01550-0610A-000 |
from US $0.96 |
||
|
14
|
14
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.96 |
||
|
15
|
15
28279-78001-000 BOOT,SHIFT |
28279-78001-000 |
from US $0.79 |
||
|
16
|
16
28250-78240-000
Shaft, gear shift control
|
28250-78240-000 |
— | ||
|
17
|
17
28271-78000-000 JOINT,SHAFT |
28271-78000-000 |
US $18.77 |
||
|
18
|
18
09280-08009-000 O RING(D:4,ID:7.8) |
09280-08009-000 |
US $9.60 |
||
|
19
|
19
09305-08015-000 BUSH |
09305-08015-000 |
from US $0.83 |
||
|
20
|
20
09111-06017-000 BOLT(6X50.3) |
09111-06017-000 |
from US $0.56 |
||
|
21
|
21
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
21
|
21
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
22
|
22
08310-11063-000 Nut m6x1x5 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
22
|
22
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
22
|
22
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
23
|
23
28260-78001-000
Rod, extension
|
28260-78001-000 |
— | ||
|
24
|
24
28269-78000-000
DUST SEAL,EXTENSION ROD
|
28269-78000-000 |
— | ||
|
25
|
25
09160-10078-000 Washer |
09160-10078-000 |
from US $1.22 |
||
| replacements | |||||
|
25
|
25
09160-10035-000 WASHER(10.5X28X2.3)Washer |
09160-10035-000 |
from US $1.28 |
||
|
25
|
25
09160-10129-000 WASHER(10.5X28X1.6)Washer (10.5x28x1.6) |
09160-10129-000 |
from US $0.97 |
||
|
26
|
26
08321-21103-000 Lock washer |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
26
|
26
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.96 |
||
|
26
|
26
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.96 |
||
|
27
|
27
08310-12103-000 Nut |
08310-12103-000 |
US $0.61 |
||
| replacements | |||||
|
27
|
27
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.83 |
||
|
27
|
27
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
