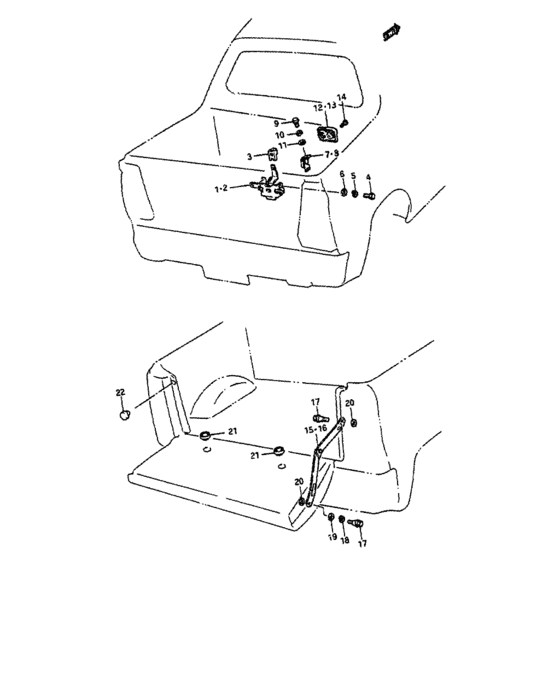

Rear gate lock (REAR GATE LOCK) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72810-81100-000
Lock, rear gate rh
|
72810-81100-000 |
— | ||
|
2
|
2
72860-81100-000
Lock, rear gate lh
|
72860-81100-000 |
— | ||
|
3
|
3
72815-81100-000
KNOB,LOCK LEVER
|
72815-81100-000 |
— | ||
|
4
|
4
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
5
|
5
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
6
|
6
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
6
|
6
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
7
|
7
72851-81100-000
Striker, rear gate lock rh
|
72851-81100-000 |
— | ||
|
8
|
8
72856-81100-000
Striker,rr gate lock lh
|
72856-81100-000 |
— | ||
|
9
|
9
09128-06038-000
Screw 6x12
|
09128-06038-000 |
— | ||
| replacement | |||||
|
9
|
9
09128-06045-000 BOLT(6X12) |
09128-06045-000 |
US $1.07 |
||
|
10
|
10
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
11
|
11
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
11
|
11
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
12
|
12
72891-81110-000
LID,RR GATE LOCK,R
|
72891-81110-000 |
— | ||
|
13
|
13
72896-81110-000
Lid, rear gate lock lh
|
72896-81110-000 |
— | ||
|
14
|
14
03142-05109-000
Screw 5x10
|
03142-05109-000 |
— | ||
| replacement | |||||
|
14
|
14
03142-0510B-000 SCREW |
03142-0510B-000 |
US $0.80 |
||
|
15
|
15
72830-81100-000
Link, rear gate rh
|
72830-81100-000 |
— | ||
|
16
|
16
72880-81100-000
Link, rear gate lh
|
72880-81100-000 |
— | ||
|
17
|
17
09135-06012-000
Bolt
|
09135-06012-000 |
— | ||
|
18
|
18
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
18
|
18
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
18
|
18
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
19
|
19
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
19
|
19
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
19
|
19
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
20
|
20
09180-06057-000
New Genuine Part
|
09180-06057-000 |
— | ||
|
21
|
21
09250-20011-000
キャップ
|
09250-20011-000 |
— | ||
| replacement | |||||
|
21
|
21
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
|
22
|
22
09321-05010-000
CUSHION
|
09321-05010-000 |
— | ||
| replacement | |||||
|
22
|
22
09321-05023-000 Cushion |
09321-05023-000 |
from US $1.67 |
||
