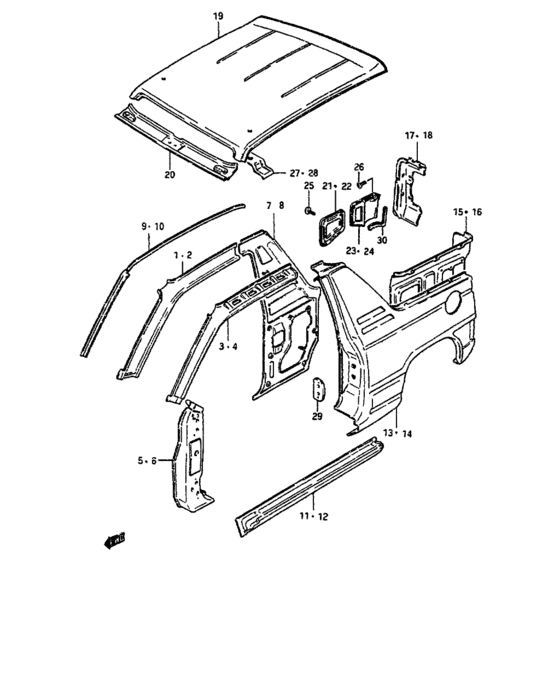

Side body panel (SIDE BODY PANEL) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-81000-000
Pillar, front inner upper rh
|
63111-81000-000 |
— | ||
|
2
|
2
63511-81000-000
Pillar, front inner upper lh
|
63511-81000-000 |
— | ||
|
3
|
3
64110-81000-000
Pillar, front outer upper rh
|
64110-81000-000 |
— | ||
|
4
|
4
64510-81000-000
Pillar, front outer upper lh
|
64510-81000-000 |
— | ||
|
5
|
5
64120-81000-000
Pillar, front outer lower rh
|
64120-81000-000 |
— | ||
|
6
|
6
64520-81000-000
Pillar, front outer lower lh
|
64520-81000-000 |
— | ||
|
7
|
7
63210-81130-000
Panel, senter pillar inner rh
|
63210-81130-000 |
— | ||
|
8
|
8
63610-81130-000
Panel, senter pillar inner lh
|
63610-81130-000 |
— | ||
|
9
|
9
64171-81100-000
Rail, roof drip rh
|
64171-81100-000 |
— | ||
|
10
|
10
64571-81100-000
Rail, roof drip lh
|
64571-81100-000 |
— | ||
|
11
|
11
64211-81000-000
Sill, side outer front rh
|
64211-81000-000 |
— | ||
|
12
|
12
64611-81000-000
Sill, side outer front lh
|
64611-81000-000 |
— | ||
|
13
|
13
64310-81830-000
Panel assy, quarter outer rh
|
64310-81830-000 |
— | ||
|
14
|
14
64710-81830-000
Panel assy, quarter outer lh
|
64710-81830-000 |
— | ||
|
15
|
15
63310-81120-000
Panel, deck side inner rh
|
63310-81120-000 |
— | ||
|
16
|
16
63710-81130-000
Panel, deck side inner lh
|
63710-81130-000 |
— | ||
|
17
|
17
64320-81100-000
Pillar, quarter end rh
|
64320-81100-000 |
— | ||
|
18
|
18
64720-81100-000
Pillar, quarter end lh
|
64720-81100-000 |
— | ||
|
19
|
19
65111-81110-000
Panel, roof
|
65111-81110-000 |
— | ||
|
20
|
20
65121-81000-000
Frame, roof inner front
|
65121-81000-000 |
— | ||
|
21
|
21
76431-81100-000
Lid, deck side front rh
|
76431-81100-000 |
— | ||
|
22
|
22
76436-81100-000
Lid, deck side front lh
|
76436-81100-000 |
— | ||
|
23
|
23
76432-81100-000
Lid, deck side rear rh
|
76432-81100-000 |
— | ||
|
24
|
24
76437-81110-000
Lid, deck side rear lh
|
76437-81110-000 |
— | ||
|
25
|
25
03142-05109-000
Screw 5x10
|
03142-05109-000 |
— | ||
| replacement | |||||
|
25
|
25
03142-0510B-000 SCREW |
03142-0510B-000 |
US $0.80 |
||
|
26
|
26
03241-05106-000
スクリュ
|
03241-05106-000 |
— | ||
| replacements | |||||
|
26
|
26
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
26
|
26
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
27
|
27
64113-81100-000
Reinf, roof fr side rh
|
64113-81100-000 |
— | ||
|
28
|
28
64513-81100-000
Reinf, roof fr side lh
|
64513-81100-000 |
— | ||
|
29
|
29
68190-78000-000
REINFORCEMENT,FR DOOR STRIKER
|
68190-78000-000 |
— | ||
|
30
|
30
76438-81110-000
Trim, deck side inner lh
|
76438-81110-000 |
— | ||
