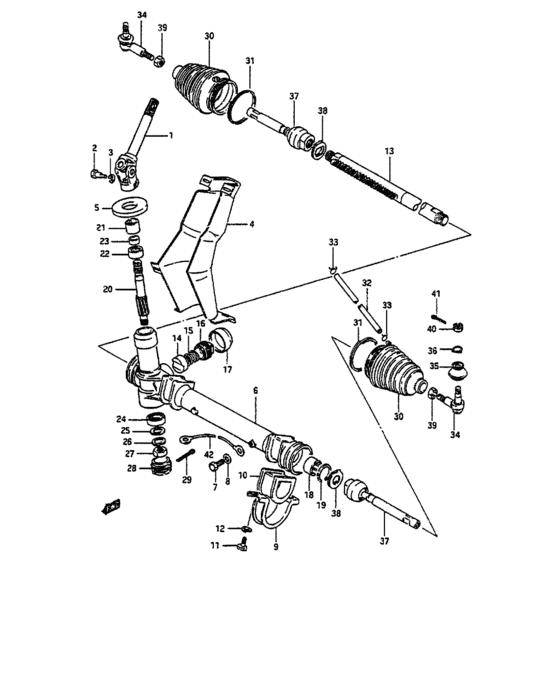

Steering link (STEERING LINK) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48220-81100-000
Joint, steering shaft
|
48220-81100-000 |
— | ||
|
2
|
2
09111-08052-000
ボルト
|
09111-08052-000 |
— | ||
| replacement | |||||
|
2
|
2
09111-08066-000 BOLT(8X30) |
09111-08066-000 |
US $1.92 |
||
|
3
|
3
08321-31086-000
Lock washer
|
08321-31086-000 |
— | ||
| replacements | |||||
|
3
|
3
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
3
|
3
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
4
|
4
48291-81000-000
Cover, steering joint
|
48291-81000-000 |
— | ||
|
5
|
5
48451-78000-000
Packing, steering gear case
|
48451-78000-000 |
— | ||
|
6
|
6
48511-78002-000
Case, steering gear
|
48511-78002-000 |
— | ||
|
7
|
7
01107-06106-000
Bolt, plate
|
01107-06106-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-0610B-000 BOLTBolt |
01500-0610B-000 |
from US $0.80 |
||
|
8
|
8
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
8
|
8
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
8
|
8
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
9
|
9
48521-78001-000
Bracket, steering gear case
|
48521-78001-000 |
— | ||
|
10
|
10
48525-78001-000
Mount,rubber,steer.gear case
|
48525-78001-000 |
— | ||
|
11
|
11
01107-08253-000 Bolt m8x1.25x25 |
01107-08253-000 |
US $1.26 |
||
| replacement | |||||
|
11
|
11
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
12
|
12
08321-31083-000
New Genuine Part
|
08321-31083-000 |
— | ||
| replacements | |||||
|
12
|
12
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
12
|
12
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
13
|
13
48531-78002-000
Rack, steering
|
48531-78002-000 |
— | ||
|
14
|
14
48534-78000-000
プランジャ,ステアリングラック
|
48534-78000-000 |
— | ||
| replacement | |||||
|
14
|
14
48534-50F00-000 PLUNGER,STEERING RACK |
48534-50F00-000 |
US $43.20 |
||
|
15
|
15
09440-19011-000 SPRING |
09440-19011-000 |
from US $1.37 |
||
|
16
|
16
48535-58000-000
Screw, rack damper
|
48535-58000-000 |
— | ||
| replacement | |||||
|
16
|
16
48535-85000-000 SCREW,RACK DAMPER |
48535-85000-000 |
US $4.23 |
||
|
17
|
17
48536-58000-000 CAP,RACK DAMPER SCREW |
48536-58000-000 |
US $1.92 |
||
|
18
|
18
48540-78000-000
BUSHING ASSY,STEERING RACK
|
48540-78000-000 |
— | ||
|
19
|
19
09381-28002-000
C ring
|
09381-28002-000 |
— | ||
|
20
|
20
48551-78000-000
Pinion, steering
|
48551-78000-000 |
— | ||
|
21
|
21
48561-78000-000
Bush,steering pinion
|
48561-78000-000 |
— | ||
|
22
|
22
09263-18013-000
Bearing,18x24x12
|
09263-18013-000 |
— | ||
|
23
|
23
09180-15048-000
Spacer, pinion bearing inner
|
09180-15048-000 |
— | ||
|
24
|
24
08113-62017-000
BEARING
|
08113-62017-000 |
— | ||
| replacement | |||||
|
24
|
24
08113-6201B-000 Bearing |
08113-6201B-000 |
from US $9.64 |
||
|
25
|
25
08322-11126-000
Washer
|
08322-11126-000 |
— | ||
| replacement | |||||
|
25
|
25
08322-0112B-000 WASHER |
08322-0112B-000 |
from US $0.80 |
||
|
26
|
26
08321-31126-000
Washer lock
|
08321-31126-000 |
— | ||
| replacement | |||||
|
26
|
26
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
27
|
27
08310-22126-000
Nut
|
08310-22126-000 |
— | ||
| replacement | |||||
|
27
|
27
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
28
|
28
48562-78000-000
Plug, pinion bearing
|
48562-78000-000 |
— | ||
|
29
|
29
04111-25256-000
Cotter pin
|
04111-25256-000 |
— | ||
| replacement | |||||
|
29
|
29
04111-2530A-000 PIN |
04111-2530A-000 |
from US $0.80 |
||
|
30
|
30
48570-78001-000
BOOT ASSY,STEERING RACK
|
48570-78001-000 |
— | ||
|
31
|
31
09460-01019-000 WIRE |
09460-01019-000 |
US $11.40 |
||
| replacement | |||||
|
31
|
31
09401-27402-000 CLIP |
09401-27402-000 |
US $1.44 |
||
|
32
|
32
09343-03038-000
ホース,3.6X6X430
|
09343-03038-000 |
— | ||
| replacement | |||||
|
32
|
32
09352-36602-600 HOSE(3.6X6X600)Hose (3.5x6.5x600) |
09352-36602-600 |
US $5.52 |
||
|
33
|
33
09401-05402-000
Clamp
|
09401-05402-000 |
— | ||
| replacement | |||||
|
33
|
33
09401-05402-XC0 CLIP |
09401-05402-XC0 |
from US $2.24 |
||
|
34
|
34
48810-78000-000
End, steering tierod
|
48810-78000-000 |
— | ||
| replacement | |||||
|
34
|
34
48810-78001-000
END,STEERING TIE-ROD
|
48810-78001-000 |
— | ||
|
35
|
35
48819-82000-000
BOOT SET,TIE ROD END
|
48819-82000-000 |
— | ||
| replacements | |||||
|
35
|
35
48819-82001-000
Boot Set,tie Rod End
|
48819-82001-000 |
— | ||
|
35
|
35
48800-82810-000 Boot Set,tie Rod End |
48800-82810-000 |
US $23.20 |
||
|
36
|
36
09401-23401-000
Clip
|
09401-23401-000 |
— | ||
| replacement | |||||
|
36
|
36
09401-23402-000 CLIP |
09401-23402-000 |
US $1.92 |
||
|
37
|
37
48830-78001-000
TIE-ROD,STEERING
|
48830-78001-000 |
— | ||
|
38
|
38
48841-78000-000
LOCK WASHER,TIE-ROD
|
48841-78000-000 |
— | ||
|
39
|
39
09140-12032-000
ナット
|
09140-12032-000 |
— | ||
| replacement | |||||
|
39
|
39
09140-12030-000 NUTNut, tie rod (rh thread) |
09140-12030-000 |
from US $1.31 |
||
|
40
|
40
08314-41123-000
Nut
|
08314-41123-000 |
— | ||
| replacement | |||||
|
40
|
40
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.95 |
||
|
41
|
41
04111-30206-000
コッタピン
|
04111-30206-000 |
— | ||
| replacement | |||||
|
41
|
41
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.59 |
||
|
42
|
42
48528-78200-000 LEAD WIRE |
48528-78200-000 |
from US $3.04 |
||
