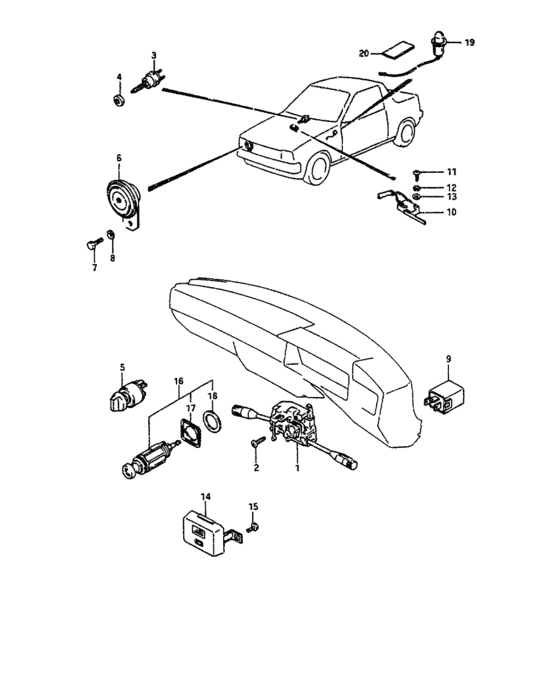

Switch (SWITCH) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37400-84221-000
Switch assy, combination
|
37400-84221-000 |
— | ||
| replacement | |||||
|
1
|
1
37400-80421-000 SWITCH ASSY,COMB |
37400-80421-000 |
US $843.20 |
||
|
2
|
2
03141-04086-000
New Genuine Part
|
03141-04086-000 |
— | ||
| replacement | |||||
|
2
|
2
03141-0408A-000 SCREW |
03141-0408A-000 |
US $0.80 |
||
|
3
|
3
37740-66010-000 SWITCH ASSY,BRAKE LAMP |
37740-66010-000 |
US $19.20 |
||
|
4
|
4
08310-22106-000
Nut
|
08310-22106-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
4
|
4
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
5
|
5
37870-81000-000
Switch assy, heater fan
|
37870-81000-000 |
— | ||
| replacement | |||||
|
5
|
5
37870-85000-000 SWITCH ASSY,HTR FAN MOTOR |
37870-85000-000 |
US $32.02 |
||
|
6
|
6
38500-78010-000
ホーンアッシ
|
38500-78010-000 |
— | ||
| replacement | |||||
|
6
|
6
38500-84101-000 HORN ASSY |
38500-84101-000 |
US $53.73 |
||
|
7
|
7
01107-08126-000
Bolt 8x12
|
01107-08126-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-0812A-000 Bolt |
01500-0812A-000 |
from US $0.77 |
||
|
8
|
8
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
8
|
8
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
8
|
8
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
9
|
9
38610-78304-000
Relay, turn signe1/4 way
|
38610-78304-000 |
— | ||
| replacement | |||||
|
9
|
9
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way |
38610-76G00-000 |
US $56.80 |
||
|
16
|
16
39400-83810-000
ライタアッシ,シガレット
|
39400-83810-000 |
— | ||
| replacement | |||||
|
16
|
16
39400-83811-000 LIGHTER ASSY,CIGARETTE |
39400-83811-000 |
US $14.40 |
||
|
17
|
17
39471-78001-000 RIM,CIGARETTE LIGHTER |
39471-78001-000 |
US $4.31 |
||
|
18
|
18
09160-23007-000 WASHER(23X34X1) |
09160-23007-000 |
US $15.50 |
||
|
19
|
19
37940-79000-000
スイッチアッシ,パーキングブレーキ
|
37940-79000-000 |
— | ||
| replacement | |||||
|
19
|
19
37940-50A00-000 SWITCH ASSY,PARKING BRAKE |
37940-50A00-000 |
US $7.73 |
||
|
20
|
20
36930-82000-000
カバー
|
36930-82000-000 |
— | ||
| replacement | |||||
|
20
|
20
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
