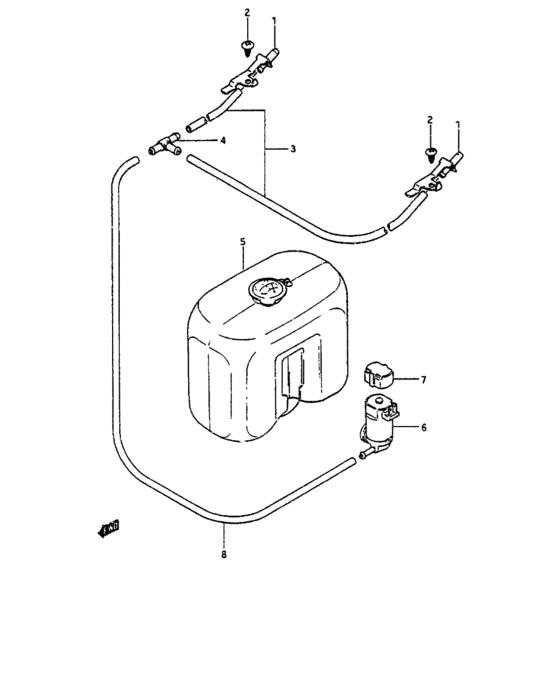

Washer (WASHER) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38480-81000-000
Nozzle,washer
|
38480-81000-000 |
— | ||
|
2
|
2
02112-05086-000
Screw
|
02112-05086-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-0508A-000 SCREW |
02112-0508A-000 |
from US $0.80 |
||
|
3
|
3
38490-81000-000
Hose assy
|
38490-81000-000 |
— | ||
|
4
|
4
38496-58110-000 JOINT |
38496-58110-000 |
US $1.82 |
||
|
5
|
5
38450-75001-000
Tank assy,washer
|
38450-75001-000 |
— | ||
|
6
|
6
38410-66112-000
Pump assy, washer
|
38410-66112-000 |
— | ||
| replacement | |||||
|
6
|
6
38410-66113-000 PUMP ASSY,WASHERPump assy, washer |
38410-66113-000 |
from US $59.20 |
||
|
7
|
7
38837-79500-000 CAP,WASHER MOTOR |
38837-79500-000 |
US $1.60 |
||
|
8
|
8
38491-82000-000
Hose, washer
L:800->600 |
38491-82000-000 |
— | ||
| replacement | |||||
|
8
|
8
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:800->600 |
38491-61A00-000 |
US $5.12 |
||
