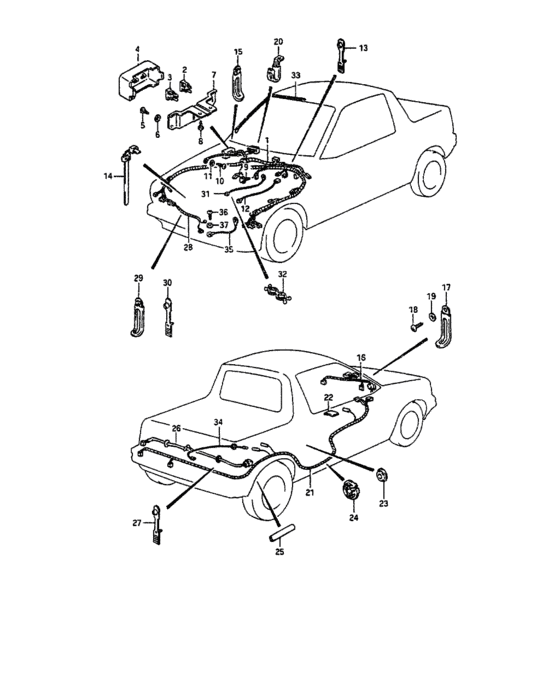

Wiring harness (WIRING HARNESS) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-81170-000
Harness assy, wiring no.1
MT |
36610-81170-000 |
— | ||
|
2
|
2
09481-10101-000 FUSE(10A) |
09481-10101-000 |
from US $1.28 |
||
|
3
|
3
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
4
|
4
36717-80021-000
Cover,fuse box
|
36717-80021-000 |
— | ||
|
5
|
5
03211-05128-000
Screw
|
03211-05128-000 |
— | ||
| replacement | |||||
|
5
|
5
03212-0512B-000 SCREW |
03212-0512B-000 |
from US $0.80 |
||
|
6
|
6
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
6
|
6
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
7
|
7
36791-81000-000
Bracket, fuse box
|
36791-81000-000 |
— | ||
|
8
|
8
03211-05128-000
Screw
|
03211-05128-000 |
— | ||
| replacement | |||||
|
8
|
8
03212-0512B-000 SCREW |
03212-0512B-000 |
from US $0.80 |
||
|
9
|
9
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
9
|
9
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
10
|
10
03111-05126-000
New Genuine Part
|
03111-05126-000 |
— | ||
| replacement | |||||
|
10
|
10
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
11
|
11
08322-21056-000
Washer
|
08322-21056-000 |
— | ||
| replacements | |||||
|
11
|
11
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
11
|
11
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
12
|
12
36919-84000-000
ワイヤ,ノイズサプレッサグランド
|
36919-84000-000 |
— | ||
| replacement | |||||
|
12
|
12
39312-60B20-000 WIRE,NOISE SUPPR NO.1 |
39312-60B20-000 |
US $2.72 |
||
|
13
|
13
09407-05405-000
Clamp (l:103)
|
09407-05405-000 |
— | ||
| replacement | |||||
|
13
|
13
09407-05406-000 CLAMP(L:118) |
09407-05406-000 |
from US $1.06 |
||
|
14
|
14
09407-10402-000 CLAMP(L:100)Clamp (l:100) |
09407-10402-000 |
from US $1.47 |
||
|
15
|
15
09404-06404-000
Clamp, fuel hose
|
09404-06404-000 |
— | ||
| replacements | |||||
|
15
|
15
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
15
|
15
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
15
|
15
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
15
|
15
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
16
|
16
36620-81071-000
Harness assy, wiring no.2
|
36620-81071-000 |
— | ||
|
17
|
17
09404-06404-000
Clamp, fuel hose
|
09404-06404-000 |
— | ||
| replacements | |||||
|
17
|
17
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
17
|
17
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
17
|
17
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
17
|
17
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
18
|
18
03211-05126-000
スクリュ
|
03211-05126-000 |
— | ||
| replacement | |||||
|
18
|
18
03211-0512A-000 SCREW |
03211-0512A-000 |
US $0.80 |
||
|
19
|
19
08322-21056-000
Washer
|
08322-21056-000 |
— | ||
| replacements | |||||
|
19
|
19
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
19
|
19
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
20
|
20
09404-06602-000
Clamp
|
09404-06602-000 |
— | ||
|
21
|
21
36630-81021-000
Harness assy, wiring no.3
MT |
36630-81021-000 |
— | ||
|
22
|
22
36930-82000-000
カバー
|
36930-82000-000 |
— | ||
| replacement | |||||
|
22
|
22
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
23
|
23
09308-05005-000 GROMMET |
09308-05005-000 |
from US $4.10 |
||
|
24
|
24
09308-25002-000 GROMMET |
09308-25002-000 |
US $11.80 |
||
|
25
|
25
09344-08002-000
ホース,8X9X70
|
09344-08002-000 |
— | ||
| replacement | |||||
|
25
|
25
09351-80902-600 PROTECTOR(8X9X600) |
09351-80902-600 |
US $3.28 |
||
|
26
|
26
36640-81000-000
Harness assy, wiring no.4
|
36640-81000-000 |
— | ||
|
27
|
27
09407-05404-000
クランプ
|
09407-05404-000 |
— | ||
| replacement | |||||
|
27
|
27
09407-05406-000 CLAMP(L:118) |
09407-05406-000 |
from US $1.06 |
||
|
28
|
28
36650-81020-000
Harness assy, wiring no.5
|
36650-81020-000 |
— | ||
|
29
|
29
09404-08413-000
Alternator w cl
|
09404-08413-000 |
— | ||
| replacement | |||||
|
29
|
29
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
30
|
30
09407-05405-000
Clamp (l:103)
|
09407-05405-000 |
— | ||
| replacement | |||||
|
30
|
30
09407-05406-000 CLAMP(L:118) |
09407-05406-000 |
from US $1.06 |
||
|
31
|
31
36810-78100-000
ワイヤ,ディストリビュータ
|
36810-78100-000 |
— | ||
| replacement | |||||
|
31
|
31
36810-81400-000 WIRE,DISTRIBUTOR |
36810-81400-000 |
US $3.72 |
||
|
32
|
32
09408-00010-000 CLIP |
09408-00010-000 |
US $11.40 |
||
|
33
|
33
36820-66000-000
WIRE,ROOM LAMP
|
36820-66000-000 |
— | ||
|
34
|
34
36840-82010-000
Wire, fuel gauge
|
36840-82010-000 |
— | ||
| replacement | |||||
|
34
|
34
36840-60B50-000 WIRE,FUEL GAUGE |
36840-60B50-000 |
US $11.41 |
||
|
35
|
35
39312-81000-000
Wire, radio noise suppressor
|
39312-81000-000 |
— | ||
|
36
|
36
03111-05126-000
New Genuine Part
|
03111-05126-000 |
— | ||
| replacement | |||||
|
36
|
36
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
37
|
37
08322-21056-000
Washer
|
08322-21056-000 |
— | ||
| replacements | |||||
|
37
|
37
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
37
|
37
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
