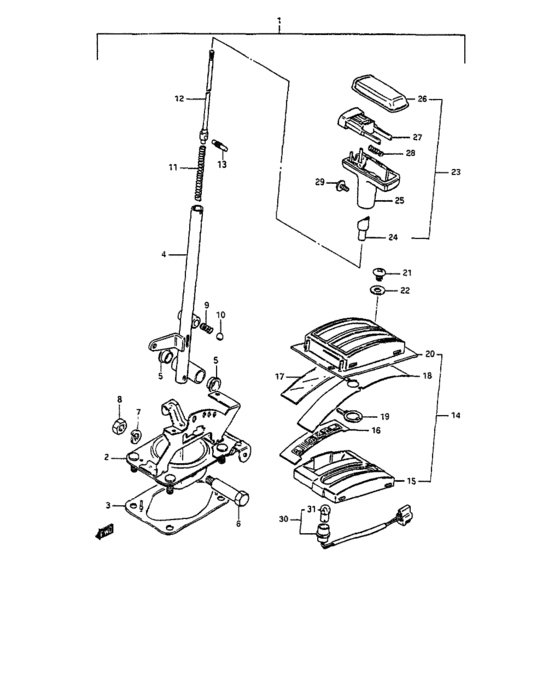

Selector lever (AT) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28100-81031-000
Selector assy, manual
|
28100-81031-000 |
— | ||
|
2
|
2
28110-78232-000
Housing selector lever
|
28110-78232-000 |
— | ||
|
3
|
3
28115-78230-000
Seat, selector lever housing
|
28115-78230-000 |
— | ||
| replacement | |||||
|
3
|
3
28115-82302-000
SHEET,SEL LEVER HOUSING
|
28115-82302-000 |
— | ||
|
4
|
4
28120-78234-000
Lever, selector
|
28120-78234-000 |
— | ||
|
5
|
5
09306-13003-000 BUSHING |
09306-13003-000 |
from US $0.63 |
||
|
6
|
6
28131-78230-000
Shaft, selector lever
|
28131-78230-000 |
— | ||
|
7
|
7
08321-21103-000 Lock washer |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
7
|
7
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.96 |
||
|
7
|
7
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.96 |
||
|
8
|
8
08310-12103-000 Nut |
08310-12103-000 |
US $0.68 |
||
| replacements | |||||
|
8
|
8
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.83 |
||
|
8
|
8
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
9
|
9
09440-07005-000 SPRING |
09440-07005-000 |
from US $0.92 |
||
|
10
|
10
06112-10004-000 BALL |
06112-10004-000 |
from US $0.74 |
||
| replacement | |||||
|
10
|
10
06111-10003-000 BALL |
06111-10003-000 |
from US $0.96 |
||
|
11
|
11
09440-08018-000
スプリング
|
09440-08018-000 |
— | ||
|
12
|
12
28140-78233-000
Rod, detent pin release
|
28140-78233-000 |
— | ||
|
13
|
13
28151-78231-000
ピン,デテント
|
28151-78231-000 |
— | ||
|
14
|
14
28102-78233-000
Indicator assy, select
|
28102-78233-000 |
— | ||
|
15
|
15
28161-78231-000
Cover, select lever,upper
|
28161-78231-000 |
— | ||
|
16
|
16
28162-78231-000
Plate, select position
|
28162-78231-000 |
— | ||
|
17
|
17
28163-78230-000
Cover, select position plate
|
28163-78230-000 |
— | ||
|
18
|
18
28164-78231-000
Cover, selector lever slide
|
28164-78231-000 |
— | ||
|
19
|
19
28165-78230-000
Plate, index
|
28165-78230-000 |
— | ||
|
20
|
20
28166-78230-000
Cover, selector lever,lower
|
28166-78230-000 |
— | ||
|
21
|
21
02112-05066-000
Screw
|
02112-05066-000 |
— | ||
| replacement | |||||
|
21
|
21
02112-0506B-000 SCREW |
02112-0506B-000 |
from US $2.92 |
||
|
22
|
22
08322-21056-000
Washer
|
08322-21056-000 |
— | ||
| replacements | |||||
|
22
|
22
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
22
|
22
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
23
|
23
28103-78233-000
ノブアッシ,セレクタレバー
|
28103-78233-000 |
— | ||
| replacement | |||||
|
23
|
23
28160-72B00-000
KNOB ASSY,SEL LEVER
|
28160-72B00-000 |
— | ||
|
24
|
24
28155-78231-000
ガイド,デテントレリーズロッド
|
28155-78231-000 |
— | ||
|
25
|
25
28181-78233-000
ノブ,セレクタレバー,ロア
|
28181-78233-000 |
— | ||
|
26
|
26
28171-78231-000
ノブ,セレクタレバー,アッパ
|
28171-78231-000 |
— | ||
|
27
|
27
26191-78231-000
Button, detent release
|
26191-78231-000 |
— | ||
|
28
|
28
09440-07017-000
Spring
|
09440-07017-000 |
— | ||
|
29
|
29
02142-05065-000 SCREW 5X6 |
02142-05065-000 |
US $0.72 |
||
| replacement | |||||
|
29
|
29
09125-05117-000 SCREW(5X6)Screw (5x6) |
09125-05117-000 |
from US $0.72 |
||
|
30
|
30
36550-81030-000
Lamp assy, illmination
|
36550-81030-000 |
— | ||
| replacement | |||||
|
30
|
30
36550-82302-000
Lamp assy,illumination
|
36550-82302-000 |
— | ||
|
31
|
31
09471-12004-000 BULB(12V1.7W,A71A)Bulb (12v,1.7w) |
09471-12004-000 |
from US $1.06 |
||
