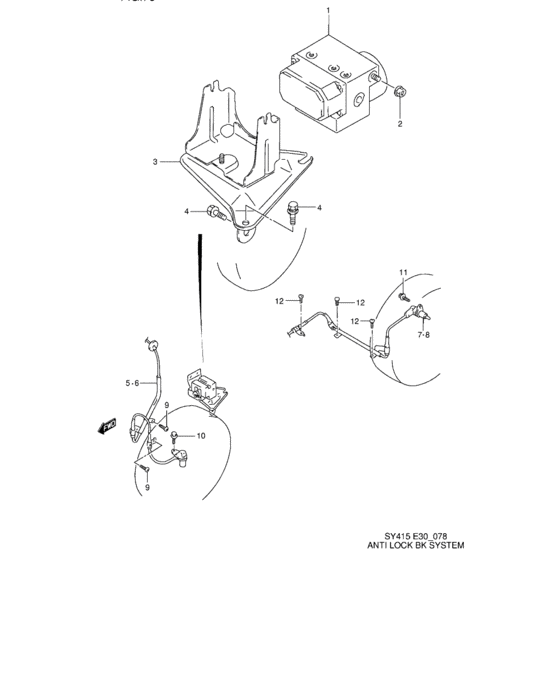

Anti lock bk system (W/ABS) Diagram Suzuki BALENO/ESTEEM
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56100-64G10-000
ACTUATOR ASSY,ABS
|
56100-64G10-000 |
— | ||
|
2
|
2
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
2
|
2
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
2
|
2
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
3
|
3
56160-64G00-000
Bracket comp,actuator
|
56160-64G00-000 |
— | ||
|
4
|
4
09112-08004-000 BOLT(8X25) |
09112-08004-000 |
US $1.22 |
||
|
5
|
5
56210-64G00-000
SENSOR,FR WHEEL,R
|
56210-64G00-000 |
— | ||
|
6
|
6
56220-64G00-000 SENSOR,FR WHEEL,L |
56220-64G00-000 |
US $144.99 |
||
|
7
|
7
56310-64G00-000
SENSOR,RR WHEEL,R
|
56310-64G00-000 |
— | ||
|
8
|
8
56320-64G00-000
SENSOR,RR WHEEL,L
|
56320-64G00-000 |
— | ||
|
9
|
9
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
9
|
9
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
10
|
10
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
10
|
10
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
10
|
10
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
|
11
|
11
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
11
|
11
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
12
|
12
09132-06006-000 SCREW(6X12) |
09132-06006-000 |
US $1.60 |
||
