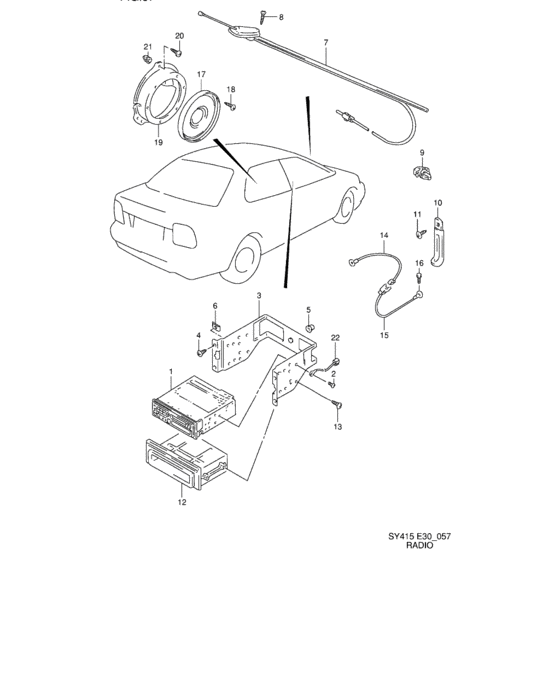

Radio (RADIO) Diagram Suzuki BALENO/ESTEEM
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39101-60G80-000
Tuner assy(am/fm,cassette)
|
39101-60G80-000 |
— | ||
|
2
|
2
02142-05083-000
Screw
|
02142-05083-000 |
— | ||
| replacement | |||||
|
2
|
2
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
|
3
|
3
39321-60G00-000 BRACKET,TUNER |
39321-60G00-000 |
US $48 |
||
|
4
|
4
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
4
|
4
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
5
|
5
34955-60E00-000 BUSH |
34955-60E00-000 |
US $2.40 |
||
|
6
|
6
09148-05045-000 NUT |
09148-05045-000 |
from US $0.81 |
||
|
7
|
7
39250-60G20-000 ANTENNA ASSY,R |
39250-60G20-000 |
US $65.50 |
||
|
8
|
8
39251-60B00-000
スクリュ
|
39251-60B00-000 |
— | ||
| replacement | |||||
|
8
|
8
09129-04004-000 SCREW(4X16) |
09129-04004-000 |
US $11.40 |
||
|
9
|
9
09403-05311-000 CLAMP |
09403-05311-000 |
US $14.40 |
||
|
10
|
10
09404-06435-000 CLAMP(L:135) |
09404-06435-000 |
from US $2.13 |
||
|
11
|
11
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
11
|
11
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
12
|
12
39182-70E21-000
Pocket, tuner
|
39182-70E21-000 |
— | ||
| replacement | |||||
|
12
|
12
39182-70E51-000 POCKET,TUNER |
39182-70E51-000 |
US $20 |
||
|
13
|
13
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
13
|
13
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
14
|
14
39312-60B20-000 WIRE,NOISE SUPPR NO.1 |
39312-60B20-000 |
US $2.72 |
||
|
15
|
15
39312-60G00-000 WIRE,NOISE SUPPR |
39312-60G00-000 |
US $6.40 |
||
|
16
|
16
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
16
|
16
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
17
|
17
39102-63G12-000 SPEAKER ASSY |
39102-63G12-000 |
US $36.06 |
||
|
18
|
18
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
18
|
18
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
19
|
19
39350-60G00-000
BRACKET,FR SPKR
|
39350-60G00-000 |
— | ||
|
20
|
20
03241-06203-000
スクリュ
|
03241-06203-000 |
— | ||
| replacement | |||||
|
20
|
20
03241-0620A-000 SCREW |
03241-0620A-000 |
US $0.80 |
||
|
21
|
21
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
22
|
22
39192-70G00-000 WIRE,TUNER GND NO.2 |
39192-70G00-000 |
US $2.91 |
||
