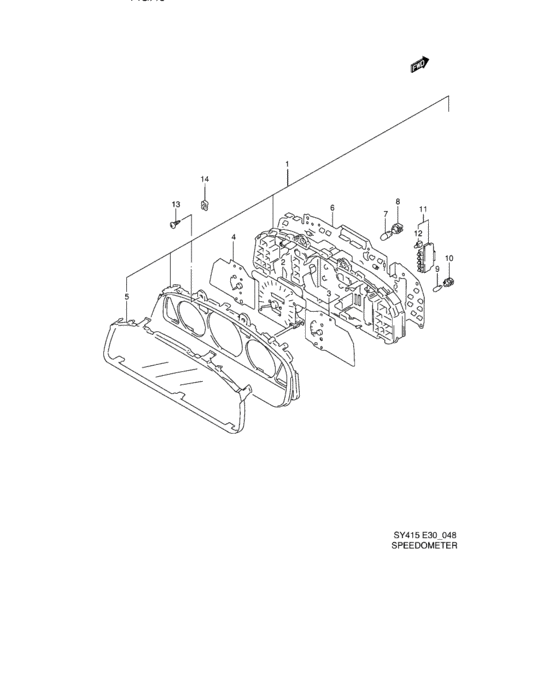

Speedometer (SPEEDOMETER) Diagram Suzuki BALENO/ESTEEM
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-65GF0-000
Speedometer assy,comb
AT |
34100-65GF0-000 |
— | ||
|
2
|
2
34120-60GD0-000
Body assy,speedometer
|
34120-60GD0-000 |
— | ||
|
3
|
3
34320-65GF0-000
BODY ASSY,FUEL METER
AT |
34320-65GF0-000 |
— | ||
|
4
|
4
34420-60G70-000
ボディアッシ,テンパレチャメータ
|
34420-60G70-000 |
— | ||
|
5
|
5
34112-60G60-000
GLASS,METER WINDOW
|
34112-60G60-000 |
— | ||
|
6
|
6
34152-61GF0-000
PLATE,PRINTED
AT |
34152-61GF0-000 |
— | ||
|
7
|
7
09471-12092-000 BULB(12V3.4W G30) |
09471-12092-000 |
US $2.56 |
||
|
8
|
8
34172-50E10-000 SOCKET |
34172-50E10-000 |
US $1.60 |
||
|
9
|
9
09471-12055-000 BULB(14V1.4W,T5)AT |
09471-12055-000 |
from US $2.40 |
||
|
10
|
10
34175-78900-000 SOCKETAT |
34175-78900-000 |
US $1.52 |
||
|
11
|
11
34156-60GE0-000
Body,shift ind
AT |
34156-60GE0-000 |
— | ||
|
12
|
12
34171-50E00-000 BULB,14V 1.12WAT |
34171-50E00-000 |
US $6.70 |
||
|
13
|
13
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
13
|
13
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
14
|
14
09148-05045-000 NUT |
09148-05045-000 |
from US $0.81 |
||
