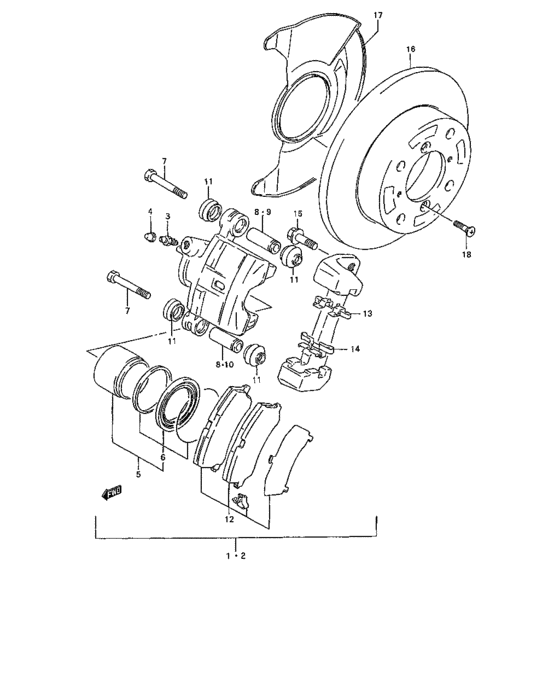

Front wheel brake (FRONT WHEEL BRAKE) Diagram Suzuki BALENO/ESTEEM
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-61G50-000
キャリパアッシ,フロントブレーキ,ライト
->55101-61G62,USED WITH 55800-61G60 |
55101-61G50-000 |
— | ||
| replacements | |||||
|
1
|
1
55101-61G57-999 CALIPER,FR BRAKE,R->55101-61G62,USED WITH 55800-61G60 |
55101-61G57-999 |
US $397.44 |
||
|
1
|
1
55800-61G61-000 PAD SET,DISC BRAKE->55101-61G62,USED WITH 55800-61G60 |
55800-61G61-000 |
US $140.21 |
||
|
1
|
1
55800-61G75-000 PAD SET,DISC BRAKE->55101-61G62,USED WITH 55800-61G60 |
55800-61G75-000 |
US $135.79 |
||
|
1
|
1
55101-61G52-000
キャリパアッシ,フロントブレーキ,ライト
JS2GB31S T5103918~ |
55101-61G52-000 |
— | ||
| replacements | |||||
|
1
|
1
55101-61G57-999 CALIPER,FR BRAKE,RJS2GB31S T5103918~ |
55101-61G57-999 |
US $397.44 |
||
|
1
|
1
55800-61G75-000 PAD SET,DISC BRAKEJS2GB31S T5103918~ |
55800-61G75-000 |
US $135.79 |
||
|
2
|
2
55102-61G50-000
キャリパアッシ,フロントブレーキ,レフト
->55102-61G62,USED WITH 55800-61G60 |
55102-61G50-000 |
— | ||
| replacements | |||||
|
2
|
2
55102-61G57-999 CALIPER,FR BRAKE,L->55102-61G62,USED WITH 55800-61G60 |
55102-61G57-999 |
US $397.44 |
||
|
2
|
2
55800-61G61-000 PAD SET,DISC BRAKE->55102-61G62,USED WITH 55800-61G60 |
55800-61G61-000 |
US $140.21 |
||
|
2
|
2
55800-61G75-000 PAD SET,DISC BRAKE->55102-61G62,USED WITH 55800-61G60 |
55800-61G75-000 |
US $135.79 |
||
|
2
|
2
55102-61G52-000
キャリパアッシ,フロントブレーキ,レフト
JS2GB31S T5103918~ |
55102-61G52-000 |
— | ||
| replacements | |||||
|
2
|
2
55102-61G57-999 CALIPER,FR BRAKE,LJS2GB31S T5103918~ |
55102-61G57-999 |
US $397.44 |
||
|
2
|
2
55800-61G75-000 PAD SET,DISC BRAKEJS2GB31S T5103918~ |
55800-61G75-000 |
US $135.79 |
||
|
3
|
3
55473-82030-000
Plug, bleeder
|
55473-82030-000 |
— | ||
| replacement | |||||
|
3
|
3
55151-78451-000 PLUG,BLEEDER |
55151-78451-000 |
from US $3.94 |
||
|
4
|
4
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
5
|
5
55840-61G50-000
Piston/seal set
|
55840-61G50-000 |
— | ||
| replacements | |||||
|
5
|
5
55840-61G52-000
PISTON / SEAL SET
|
55840-61G52-000 |
— | ||
|
5
|
5
55840-61G53-000 Piston / Seal Set |
55840-61G53-000 |
US $47.47 |
||
|
6
|
6
55830-61G50-000
Seal set,piston
|
55830-61G50-000 |
— | ||
| replacements | |||||
|
6
|
6
55830-61G52-000
SEAL SET,PISTON
|
55830-61G52-000 |
— | ||
|
6
|
6
55830-61G53-000 Seal Set,piston |
55830-61G53-000 |
US $15.20 |
||
|
7
|
7
55164-86040-000 BOLT,BRAKE CALIPER |
55164-86040-000 |
US $3.90 |
||
|
7
|
7
55164-61G50-000 BOLT,BRAKE CALIPER97 MODEL |
55164-61G50-000 |
from US $2.08 |
||
|
8
|
8
55191-61G50-000 BUSH,CYLINDER SLIDE |
55191-61G50-000 |
US $11.56 |
||
|
9
|
9
55191-61G50-000 BUSH,CYLINDER SLIDEJS2GB31S T5102090~ |
55191-61G50-000 |
US $11.56 |
||
|
9
|
9
55191-61G51-000 BUSHING,CYLINDER SLIDER97 MODEL |
55191-61G51-000 |
US $6.24 |
||
|
10
|
10
55192-61G00-000
ブッシング,シリンダスライダ
JS2GB31S T5102090~ |
55192-61G00-000 |
— | ||
| replacement | |||||
|
10
|
10
55191-61G00-000 BUSH,CYLINDER SLIDEJS2GB31S T5102090~ |
55191-61G00-000 |
US $10.05 |
||
|
10
|
10
55192-61G01-000 BUSHING,CYLINDER SLIDER97 MODEL |
55192-61G01-000 |
from US $5.92 |
||
|
11
|
11
55201-86040-000 BOOT,BUSH DUST |
55201-86040-000 |
from US $2.40 |
||
|
12
|
12
55800-61G60-000
Pad set,brake
|
55800-61G60-000 |
— | ||
| replacements | |||||
|
12
|
12
55800-61G61-000 PAD SET,DISC BRAKE |
55800-61G61-000 |
US $140.21 |
||
|
12
|
12
55800-61G75-000 PAD SET,DISC BRAKE |
55800-61G75-000 |
US $135.79 |
||
|
12
|
12
55800-61G70-000
パッドセット,ディスクブレーキ
JS2GB31S T5102090~ |
55800-61G70-000 |
— | ||
| replacement | |||||
|
12
|
12
55800-61G75-000 PAD SET,DISC BRAKEJS2GB31S T5102090~ |
55800-61G75-000 |
US $135.79 |
||
|
13
|
13
55234-60B00-000 PLATE,PAD SUPPORT NO.1 |
55234-60B00-000 |
US $5.45 |
||
| replacement | |||||
|
13
|
13
55234-78R00-000 F/Disc pad shim |
55234-78R00-000 |
from US $6.26 |
||
|
14
|
14
55235-60B00-000 PLATE,PAD SUPPORT NO.2 |
55235-60B00-000 |
US $6.19 |
||
| replacement | |||||
|
14
|
14
55235-78R00-000 Plate, pad support No.2 |
55235-78R00-000 |
from US $6.28 |
||
|
15
|
15
09117-12006-000 BOLT(12X27) |
09117-12006-000 |
US $1.92 |
||
|
16
|
16
55311-61G00-000
ディスク,フロントブレーキ
|
55311-61G00-000 |
— | ||
| replacement | |||||
|
16
|
16
55311-61G02-000 DISC,FR BRAKE |
55311-61G02-000 |
US $250.24 |
||
|
17
|
17
55321-60B40-000 COVER,BRAKE DISC DUST |
55321-60B40-000 |
US $80.80 |
||
|
18
|
18
02122-06163-000
Screw
|
02122-06163-000 |
— | ||
| replacements | |||||
|
18
|
18
02122-0616B-000 SCREWScrew, intake pipe |
02122-0616B-000 |
from US $0.80 |
||
|
18
|
18
02122-0616A-000 SCREW |
02122-0616A-000 |
from US $0.76 |
||
