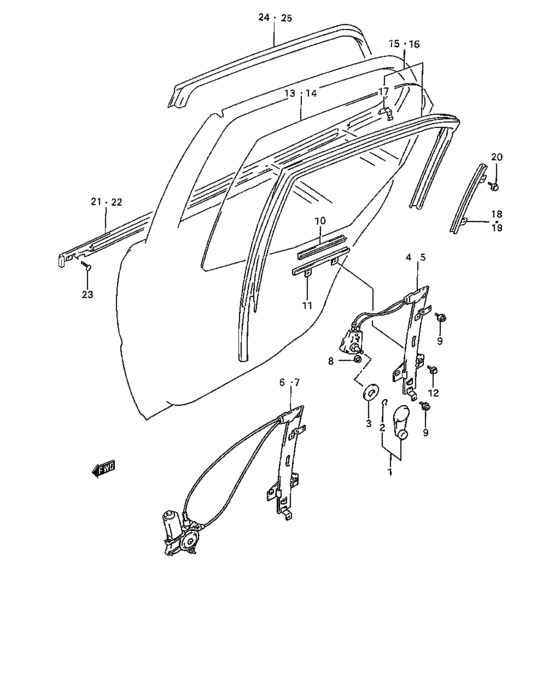

Rr dr regulator (RR DR REGULATOR) Diagram Suzuki BALENO/ESTEEM
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82960-60G00-5ES
HANDLE,DR WINDOW RGLTR(BLACK)
GL |
82960-60G00-5ES |
— | ||
|
2
|
2
78463-78000-000 SNAPGL |
78463-78000-000 |
US $1.60 |
||
|
3
|
3
82972-60G00-5ES
ESCUTCHEON,WINDOW RGLTR HDL
GL |
82972-60G00-5ES |
— | ||
|
3
|
3
82972-70B00-5ES ESCUTCHEON,WINDOW RGLTR HDL(BLGL,JS2GB31S T5106684~ |
82972-70B00-5ES |
US $3.09 |
||
|
4
|
4
83510-60G00-000
REGULATOR ASSY,RR WINDOW,R
GL |
83510-60G00-000 |
— | ||
|
5
|
5
83540-60G00-000
REGULATOR ASSY,RR WINDOW,L
GL |
83540-60G00-000 |
— | ||
|
6
|
6
83501-60G00-000 REGULATOR ASSY,RR WINDOW,RGLX |
83501-60G00-000 |
US $648 |
||
|
7
|
7
83502-60G00-000
REGULATOR ASSY,RR WINDOW,L
GLX |
83502-60G00-000 |
— | ||
|
8
|
8
08361-15063-000
Nut
|
08361-15063-000 |
— | ||
| replacement | |||||
|
8
|
8
08361-1506A-000 NUT |
08361-1506A-000 |
from US $0.74 |
||
|
9
|
9
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
9
|
9
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
10
|
10
83691-60A00-000 RUBBER,FR GLASS BOTTOM CHANNELL:250->180 |
83691-60A00-000 |
US $2.56 |
||
|
11
|
11
83630-60G00-000 CHANNEL,RR GLASS BOTTOM |
83630-60G00-000 |
US $11.19 |
||
|
12
|
12
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
12
|
12
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
13
|
13
84541-60G10-000
ガラス,リヤドアウィンド,ライト(ブルー)
|
84541-60G10-000 |
— | ||
| replacement | |||||
|
13
|
13
84541-60G30-000 GLASS,RR DR WINDOW,R |
84541-60G30-000 |
US $124.38 |
||
|
13
|
13
84541-60G30-000 GLASS,RR DR WINDOW,RJS2GB31S T5102610~ |
84541-60G30-000 |
US $124.38 |
||
|
14
|
14
84546-60G10-000
ガラス,リヤドアウィンド,レフト(ブルー)
|
84546-60G10-000 |
— | ||
| replacement | |||||
|
14
|
14
84546-60G30-000 GLASS,RR DR WINDOW,L |
84546-60G30-000 |
US $124.38 |
||
|
14
|
14
84546-60G30-000 GLASS,RR DR WINDOW,LJS2GB31S T5102610~ |
84546-60G30-000 |
US $124.38 |
||
|
15
|
15
83681-60G00-000
ラン,リヤドアガラス,ライト
->83681-60G01,USED WITH 83663-50G00,95 MODEL,96 MODEL |
83681-60G00-000 |
— | ||
| replacements | |||||
|
15
|
15
83681-60G01-000 RUN,RR DOOR GLASS,R->83681-60G01,USED WITH 83663-50G00,95 MODEL,96 MODEL |
83681-60G01-000 |
US $126.96 |
||
|
15
|
15
83663-50G00-000
GUIDE,DR WINDOW GLASS
->83681-60G01,USED WITH 83663-50G00,95 MODEL,96 MODEL |
83663-50G00-000 |
— | ||
|
15
|
15
83681-60G01-000 RUN,RR DOOR GLASS,R97 MODEL |
83681-60G01-000 |
US $126.96 |
||
|
16
|
16
83685-60G00-000
ラン,リヤドアガラス,レフト
->83685-60G01,USED WITH 83663-50G00,95 MODEL,96 MODEL |
83685-60G00-000 |
— | ||
| replacements | |||||
|
16
|
16
83685-60G01-000 RUN,RR DOOR GLASS,L->83685-60G01,USED WITH 83663-50G00,95 MODEL,96 MODEL |
83685-60G01-000 |
US $115.18 |
||
|
16
|
16
83663-50G00-000
GUIDE,DR WINDOW GLASS
->83685-60G01,USED WITH 83663-50G00,95 MODEL,96 MODEL |
83663-50G00-000 |
— | ||
|
16
|
16
83685-60G01-000 RUN,RR DOOR GLASS,L97 MODEL |
83685-60G01-000 |
US $115.18 |
||
|
17
|
17
83663-50G00-000
GUIDE,DR WINDOW GLASS
|
83663-50G00-000 |
— | ||
|
18
|
18
81770-60G10-000 SASH,RR DOOR REAR LWR,R<-81770-60G00 |
81770-60G10-000 |
US $14.87 |
||
|
19
|
19
81780-60G10-000 SASH,RR DOOR REAR LWR,L<-81770-60G00 |
81780-60G10-000 |
US $14.87 |
||
|
20
|
20
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
20
|
20
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
21
|
21
83831-60G00-000 WEATHERSTRIP,RR DR OTR,R |
83831-60G00-000 |
US $91.26 |
||
|
22
|
22
83841-60G00-000 WEATHERSTRIP,RR DR OTR,L |
83841-60G00-000 |
US $91.26 |
||
|
23
|
23
09136-05058-000 SCREW(5X16) |
09136-05058-000 |
US $16.90 |
||
|
24
|
24
83682-60G01-000 MOLDING,RR DR FRAME,R |
83682-60G01-000 |
US $67.34 |
||
|
25
|
25
83686-60G01-000
MOLDING,RR DR FRAME,L
|
83686-60G01-000 |
— | ||
