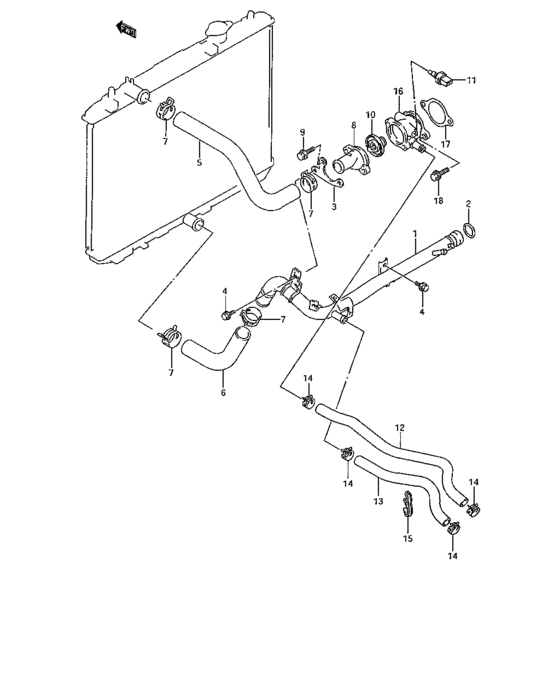

Water hose (WATER HOSE) Diagram Suzuki BALENO/ESTEEM
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17840-60G01-000
Pipe, water inlet
|
17840-60G01-000 |
— | ||
| replacement | |||||
|
1
|
1
17840-60G02-000 PIPE,WATER INLET |
17840-60G02-000 |
US $116.80 |
||
|
2
|
2
09280-28008-000 O RING(D:3.5,ID:27.7) |
09280-28008-000 |
from US $0.63 |
||
|
3
|
3
17891-60G00-000
BRACKET,WATER INLET PIPE
|
17891-60G00-000 |
— | ||
|
4
|
4
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
4
|
4
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
5
|
5
17852-60G20-000
ホース,ラジエータ,インレット
|
17852-60G20-000 |
— | ||
| replacement | |||||
|
5
|
5
17852-60G10-000 HOSE,RADIATOR INLET |
17852-60G10-000 |
from US $23.11 |
||
|
6
|
6
17854-60G00-000
ホース,ラジエータ,アウトレット
|
17854-60G00-000 |
— | ||
| replacement | |||||
|
6
|
6
17854-65G00-000 HOSE,RADIATOR OUTLET |
17854-65G00-000 |
from US $16 |
||
|
7
|
7
09401-30403-000
クリップ
|
09401-30403-000 |
— | ||
| replacement | |||||
|
7
|
7
09401-30405-000 CLIP |
09401-30405-000 |
from US $3.04 |
||
|
8
|
8
17561-60B00-000 CAP,WATER THERMOSTAT |
17561-60B00-000 |
US $31.20 |
||
|
9
|
9
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
9
|
9
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
10
|
10
17670-50G10-000
THERMOSTAT,WATER 88 DEG
|
17670-50G10-000 |
— | ||
| replacement | |||||
|
10
|
10
17670-50G11-000 THERMOSTAT |
17670-50G11-000 |
US $23.20 |
||
|
11
|
11
13650-50G00-000
センサ,ウォータテンパレチャ
->13650-50G01 |
13650-50G00-000 |
— | ||
| replacement | |||||
|
11
|
11
13650-50G01-000 Sensor,water Temp->13650-50G01 |
13650-50G01-000 |
from US $66.62 |
||
|
11
|
11
13650-50G01-000 Sensor,water TempJS2GB31S S5104200~ |
13650-50G01-000 |
from US $66.62 |
||
|
12
|
12
17871-60G01-000 HOSE,HEATER INLET |
17871-60G01-000 |
US $46.40 |
||
|
13
|
13
17872-60G01-000 HOSE,HEATER OUTLET |
17872-60G01-000 |
US $29.60 |
||
|
14
|
14
09401-18403-000 CLIPClip, heater hose |
09401-18403-000 |
US $1.92 |
||
|
15
|
15
09408-00117-000 CLAMP |
09408-00117-000 |
US $20.20 |
||
|
16
|
16
17690-60G10-000
ケース,サーモスタット
->17690-60G11,USED WITH 13650-50G01 |
17690-60G10-000 |
— | ||
| replacements | |||||
|
16
|
16
17690-60GV0-000 CASE,THERMOSTAT->17690-60G11,USED WITH 13650-50G01 |
17690-60GV0-000 |
US $84 |
||
|
16
|
16
13650-50G01-000 Sensor,water Temp->17690-60G11,USED WITH 13650-50G01 |
13650-50G01-000 |
from US $66.62 |
||
|
16
|
16
17690-60G11-000
ケース,サーモスタット
JS2GB31S S5104200~ |
17690-60G11-000 |
— | ||
| replacement | |||||
|
16
|
16
17690-60GV0-000 CASE,THERMOSTATJS2GB31S S5104200~ |
17690-60GV0-000 |
US $84 |
||
|
17
|
17
17699-60B02-000 GASKET,THERMO CASE |
17699-60B02-000 |
from US $3.94 |
||
|
18
|
18
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
18
|
18
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
