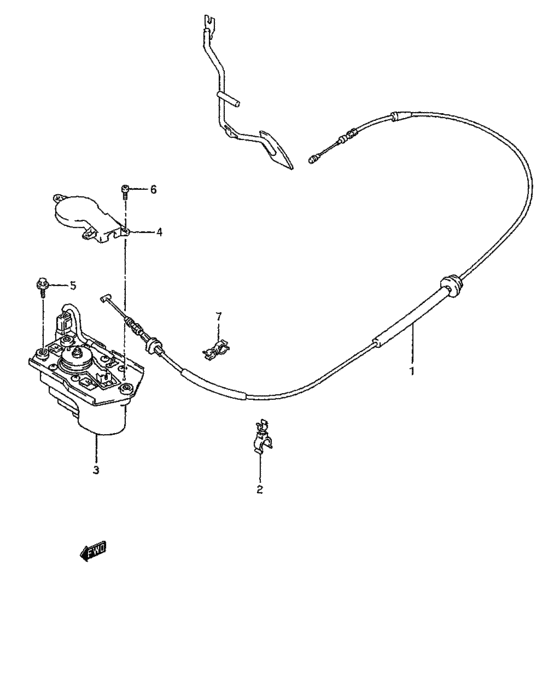

Auto cruise actuator (AUTO CRUISE ACTUATOR) Diagram Suzuki BALENO/ESTEEM
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
- grade
- GLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15950-60G01-000
Cable assy, auto cruise
|
15950-60G01-000 |
— | ||
|
2
|
2
15911-60G00-000
Clamp
|
15911-60G00-000 |
— | ||
|
3
|
3
15990-60G00-000
Actuator assy, auto cruise
|
15990-60G00-000 |
— | ||
|
4
|
4
15999-60G00-000
Cap, actuator
|
15999-60G00-000 |
— | ||
|
5
|
5
09136-06133-000 BOLT(6X16)Screw |
09136-06133-000 |
US $12.50 |
||
|
6
|
6
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
6
|
6
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
6
|
6
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
7
|
7
09408-00085-000 CLAMP |
09408-00085-000 |
from US $1.76 |
||
