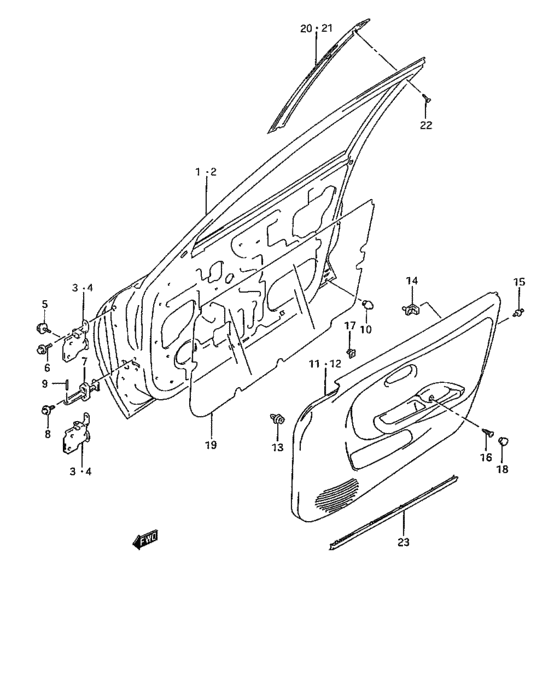

Fr dr panel (FR DR PANEL) Diagram Suzuki BALENO/ESTEEM
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-60G00-000
PANEL ASSY,FRONT DOOR,R
GL |
68001-60G00-000 |
— | ||
|
1
|
1
68001-60G10-000 PANEL ASSY,FRONT DOOR,RGLX |
68001-60G10-000 |
US $640.64 |
||
|
2
|
2
68002-60G00-000
PANEL ASSY,FRONT DOOR,L
GL |
68002-60G00-000 |
— | ||
|
2
|
2
68002-60G10-000 PANEL ASSY,FRONT DOOR,LGLX |
68002-60G10-000 |
US $640.64 |
||
|
3
|
3
69310-60G01-000 HINGE,FR DR NO.1UPPER RH,LOWER LH |
69310-60G01-000 |
US $41.60 |
||
|
4
|
4
69320-60G01-000 HINGE,FR DR NO.2UPPER LH,LOWER RH |
69320-60G01-000 |
US $41.60 |
||
|
5
|
5
09118-08156-000 BOLT(8X25) |
09118-08156-000 |
US $19.50 |
||
|
6
|
6
09118-08156-000 BOLT(8X25) |
09118-08156-000 |
US $19.50 |
||
|
7
|
7
81810-60G10-000
ストップ,ドアオープン
|
81810-60G10-000 |
— | ||
| replacement | |||||
|
7
|
7
81810-60G11-000 STOP,SIDE DOOR OPEN |
81810-60G11-000 |
US $31.83 |
||
|
8
|
8
09122-86004-000 SCREW(6X20) |
09122-86004-000 |
US $11.80 |
||
|
9
|
9
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY |
81831-70B00-000 |
US $1.60 |
||
|
10
|
10
82711-56B00-000 STOPPER,FR DOORStopper, fr dr lower |
82711-56B00-000 |
US $2.88 |
||
|
11
|
11
83710-60G82-D3F
Trim, fr door rh
95 MODEL:GL,<-83710-60G80-D3F |
83710-60G82-D3F |
— | ||
| replacement | |||||
|
11
|
11
83710-60G83-D3F
New Genuine Part
95 MODEL:GL,<-83710-60G80-D3F |
83710-60G83-D3F |
— | ||
|
11
|
11
83710-60G82-H0R
Trim, fr door rh
97 MODEL:GL |
83710-60G82-H0R |
— | ||
| replacement | |||||
|
11
|
11
83710-60G83-H0R
New Genuine Part
97 MODEL:GL |
83710-60G83-H0R |
— | ||
|
11
|
11
83710-60G72-D3H
Trim, fr door rh
95 MODEL:GLX,<-83710-60G70-D3H |
83710-60G72-D3H |
— | ||
| replacement | |||||
|
11
|
11
83710-60G73-D3H
Trim,front door,r
95 MODEL:GLX,<-83710-60G70-D3H |
83710-60G73-D3H |
— | ||
|
12
|
12
83720-60G82-D3F
Trim, fr door lh
95 MODEL:GL,<-83720-60G80-D3F |
83720-60G82-D3F |
— | ||
| replacement | |||||
|
12
|
12
83720-60G83-D3F
New Genuine Part
95 MODEL:GL,<-83720-60G80-D3F |
83720-60G83-D3F |
— | ||
|
12
|
12
83720-60G82-H0R
Trim, fr door lh
97 MODEL:GL |
83720-60G82-H0R |
— | ||
| replacement | |||||
|
12
|
12
83720-60G83-H0R
New Genuine Part
97 MODEL:GL |
83720-60G83-H0R |
— | ||
|
12
|
12
83720-60G60-D3H
Trim, fr door lh
95 MODEL:GLX,->83720-60G62-D3H,USED WITH 36756-60G61 |
83720-60G60-D3H |
— | ||
| replacement | |||||
|
12
|
12
83720-60G63-J4E
TRIM,FRONT DOOR,L
95 MODEL:GLX,->83720-60G62-D3H,USED WITH 36756-60G61 |
83720-60G63-J4E |
— | ||
|
12
|
12
83720-60G62-D3H
Trim, fr door lh
96 MODEL:GLX |
83720-60G62-D3H |
— | ||
| replacement | |||||
|
12
|
12
83720-60G63-J4E
TRIM,FRONT DOOR,L
96 MODEL:GLX |
83720-60G63-J4E |
— | ||
|
13
|
13
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
14
|
14
83791-60G00-000 BRACKET,FR DR TRIM |
83791-60G00-000 |
US $2.98 |
||
|
15
|
15
09409-07019-5PK CLIP(BLACK) |
09409-07019-5PK |
US $1.60 |
||
|
16
|
16
03241-06203-000
スクリュ
|
03241-06203-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-0620A-000 SCREW |
03241-0620A-000 |
US $0.80 |
||
|
17
|
17
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
18
|
18
84455-60G00-5ES
CAP,SIDE DR GRIP
|
84455-60G00-5ES |
— | ||
|
19
|
19
83911-60X50-000
カバー,ドアシーリング,600X1200
CUT AS REQUIRED |
83911-60X50-000 |
— | ||
| replacement | |||||
|
19
|
19
83911-60X52-000 COVER,DR SEALINGCUT AS REQUIRED |
83911-60X52-000 |
US $6.06 |
||
|
20
|
20
83671-60G00-000 GARNISH,FR DR CTR PLR,R |
83671-60G00-000 |
US $25.21 |
||
|
21
|
21
83672-60G00-000 GARNISH,FR DR CTR PLR,L |
83672-60G00-000 |
US $25.21 |
||
|
22
|
22
09136-04009-000 SCREW(4X10) |
09136-04009-000 |
US $19.10 |
||
|
23
|
23
84643-60G00-000 WEATHERSTRIP,FR DR DUST |
84643-60G00-000 |
US $32.69 |
||
