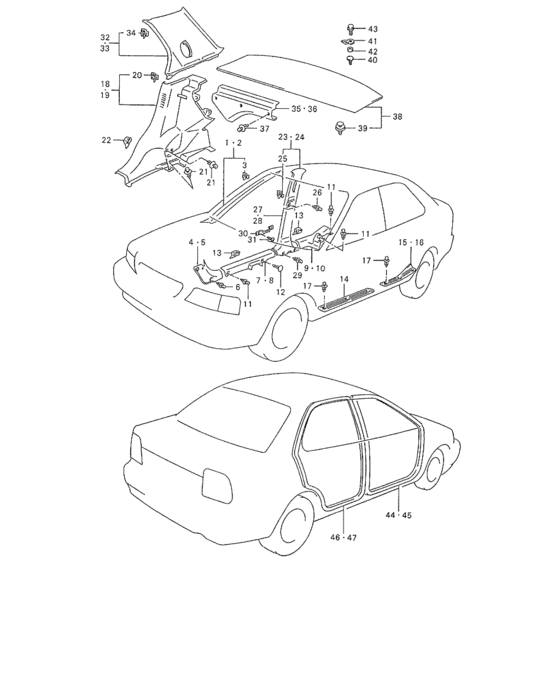

Interior trim (INTERIOR TRIM) Diagram Suzuki BALENO/ESTEEM
- Year
- -
- Sales region
- U.S.A.
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76110-60G01-5ES
TRIM,FR PILLAR,R
|
76110-60G01-5ES |
— | ||
|
2
|
2
76120-60G01-5ES
TRIM,FR PILLAR,L
|
76120-60G01-5ES |
— | ||
|
3
|
3
09409-10308-000 CLIP |
09409-10308-000 |
US $1.60 |
||
|
4
|
4
76131-60G00-5ES
TRIM,DASH SIDE,R
|
76131-60G00-5ES |
— | ||
|
5
|
5
76141-60G00-5ES
Trim,dash side,l(black)
|
76141-60G00-5ES |
— | ||
|
6
|
6
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $0.95 |
||
|
7
|
7
76151-60G00-5ES SCUFF,SIDE SILL FR,R |
76151-60G00-5ES |
US $19.32 |
||
|
8
|
8
76161-60G00-5ES SCUFF,SIDE SILL FR,L |
76161-60G00-5ES |
US $19.32 |
||
|
9
|
9
76152-60G00-5ES
SCUFF,SIDE SILL RR,R
|
76152-60G00-5ES |
— | ||
|
10
|
10
76162-60G00-5ES
Scuff,side sill rear,l(black)
|
76162-60G00-5ES |
— | ||
|
11
|
11
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $0.95 |
||
|
12
|
12
09409-10302-5PK CLIP(BLACK) |
09409-10302-5PK |
US $1.28 |
||
|
13
|
13
76153-60G00-000 CLIP,SIDE SILL SCUFF |
76153-60G00-000 |
US $2.36 |
||
|
14
|
14
76155-60G00-5ES SCUFF,SIDE SILL OUT FR(BLACK),GLX |
76155-60G00-5ES |
US $11.89 |
||
|
15
|
15
76156-60G00-5ES
SCUFF,SIDE SILL OUT RR,R(
(BLACK),GLX |
76156-60G00-5ES |
— | ||
|
16
|
16
76166-60G00-5ES
SCUFF,SIDE SILL OUT RR,L
(BLACK),GLX |
76166-60G00-5ES |
— | ||
|
17
|
17
09409-07308-5PK CLIP(BLACK)GLX |
09409-07308-5PK |
from US $0.95 |
||
|
18
|
18
76170-60G01-5ES
トリム,リヤシートバックサイド,ライト(ブラック)
(BLACK) |
76170-60G01-5ES |
— | ||
| replacement | |||||
|
18
|
18
76170-60G02-5ES
TRIM,RR SEAT BACK SIDE,R
(BLACK) |
76170-60G02-5ES |
— | ||
|
19
|
19
76180-60G01-5ES
トリム,リヤシートバックサイド,レフト(ブラック)
(BLACK) |
76180-60G01-5ES |
— | ||
| replacement | |||||
|
19
|
19
76180-60G02-5ES
TRIM,RR SEAT BACK SIDE,L
(BLACK) |
76180-60G02-5ES |
— | ||
|
20
|
20
09409-08325-000 CLIP |
09409-08325-000 |
from US $0.80 |
||
|
21
|
21
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $0.95 |
||
|
22
|
22
76153-60G00-000 CLIP,SIDE SILL SCUFF |
76153-60G00-000 |
US $2.36 |
||
|
23
|
23
76210-60G00-5ES
TRIM,CTR PLR INR UPR,R
RH (BLACK) |
76210-60G00-5ES |
— | ||
|
24
|
24
76220-60G00-5ES
TRIM,CTR PLR INR UPR,L
LH (BLACK) |
76220-60G00-5ES |
— | ||
|
25
|
25
09409-10308-000 CLIP |
09409-10308-000 |
US $1.60 |
||
|
26
|
26
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $0.95 |
||
|
27
|
27
76231-60G01-5ES
TRIM,CTR PLR INR LWR,R
RH (BLACK) |
76231-60G01-5ES |
— | ||
|
28
|
28
76241-60G01-5ES TRIM,CTR PLR INR LWR,LLH (BLACK) |
76241-60G01-5ES |
US $32.20 |
||
|
29
|
29
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $0.95 |
||
|
30
|
30
76236-64G00-000
HOLDER,CTR PILLAR TRIM
|
76236-64G00-000 |
— | ||
|
31
|
31
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
31
|
31
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
32
|
32
76250-60G01-5ES
TRIM,RR PILLAR INR,R
(BLACK) |
76250-60G01-5ES |
— | ||
|
33
|
33
76260-60G01-5ES
TRIM,RR PILLAR INNER,L
(BLACK) |
76260-60G01-5ES |
— | ||
|
34
|
34
09409-10308-000 CLIP |
09409-10308-000 |
US $1.60 |
||
|
35
|
35
76281-60G00-5ES
TRIM,PARTITION FRONT,R
|
76281-60G00-5ES |
— | ||
|
36
|
36
76282-60G00-5ES
TRIM,PARTITION FRONT,L
|
76282-60G00-5ES |
— | ||
|
37
|
37
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $0.95 |
||
|
38
|
38
76290-60G02-6DH
TRIM,PARTITION
CUT AS REQUIRED |
76290-60G02-6DH |
— | ||
|
39
|
39
09409-08310-000 CLIP |
09409-08310-000 |
US $1.76 |
||
|
40
|
40
76297-70C00-5PK
キャップ,チャイルドアンカレッジ(ブラック)
|
76297-70C00-5PK |
— | ||
| replacement | |||||
|
40
|
40
76297-70C00-P4Z CAP,CHILD ANCHORAGE |
76297-70C00-P4Z |
US $1.60 |
||
|
41
|
41
75481-70C00-000
Plate, tether anchor
Canada |
75481-70C00-000 |
— | ||
| replacements | |||||
|
41
|
41
75480-70C00-000
PLATE SET,TETHER ANCHORAGE
Canada |
75480-70C00-000 |
— | ||
|
41
|
41
75481-70C0V-000
PLATE,TETHER ANCHOR
Canada |
75481-70C0V-000 |
— | ||
|
42
|
42
75484-70C00-000
Spacer, tether anchor
Canada |
75484-70C00-000 |
— | ||
| replacement | |||||
|
42
|
42
75484-70C01-000 SPACER,TETHER ANCHORAGECanada |
75484-70C01-000 |
US $4.01 |
||
|
43
|
43
09103-08276-000 BOLT(8X25)Canada |
09103-08276-000 |
US $19.50 |
||
|
44
|
44
84641-60G00-000 WEATHERSTRIP,FR DR OPNG,R |
84641-60G00-000 |
US $116.29 |
||
|
45
|
45
84651-60G00-000 WEATHERSTRIP,FR DR OPNG,L |
84651-60G00-000 |
US $191.52 |
||
|
46
|
46
84661-60G00-000 WEATHERSTRIP,RR DR OPNG,R |
84661-60G00-000 |
US $111.87 |
||
|
47
|
47
84671-60G00-000 WEATHERSTRIP,RR DR OPNG,L |
84671-60G00-000 |
US $111.87 |
||
