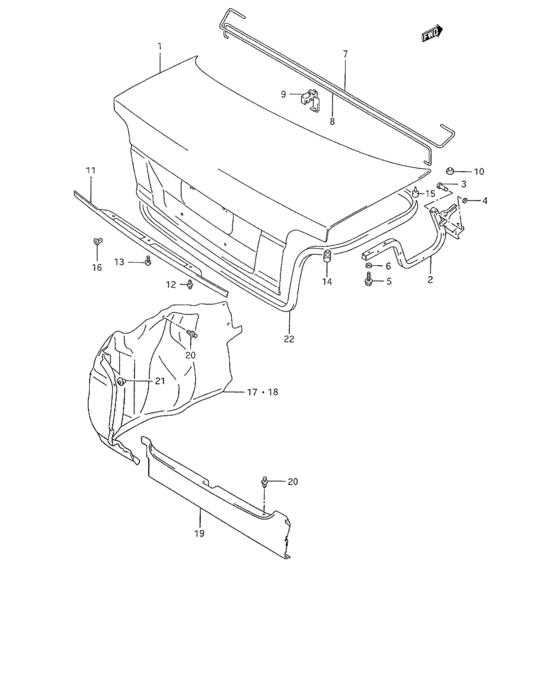

Trunk lid (TRUNK LID) Diagram Suzuki BALENO/ESTEEM
- Year
- -
- Sales region
- U.S.A.
- transmission
- AT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65700-60G00-000
Panel, trunk lid
->65700-60G01,USED WITH 02162-05123 |
65700-60G00-000 |
— | ||
| replacements | |||||
|
1
|
1
65700-60G04-000 PANEL,TRUNK LID->65700-60G01,USED WITH 02162-05123 |
65700-60G04-000 |
US $397.76 |
||
|
1
|
1
02162-0512A-000 SCREW->65700-60G01,USED WITH 02162-05123 |
02162-0512A-000 |
from US $0.80 |
||
|
1
|
1
09409-06322-5PK CLIP(BLACK)Clip (black) ->65700-60G01,USED WITH 02162-05123 |
09409-06322-5PK |
from US $1.58 |
||
|
1
|
1
02162-05123-000
Screw
->65700-60G01,USED WITH 02162-05123 |
02162-05123-000 |
— | ||
|
1
|
1
65700-60G01-000
Panel, trunk lid
JS2GB31S T5104699~ |
65700-60G01-000 |
— | ||
| replacements | |||||
|
1
|
1
65700-60G04-000 PANEL,TRUNK LIDJS2GB31S T5104699~ |
65700-60G04-000 |
US $397.76 |
||
|
1
|
1
09409-06322-5PK CLIP(BLACK)Clip (black) JS2GB31S T5104699~ |
09409-06322-5PK |
from US $1.58 |
||
|
2
|
2
65810-60G10-000
HINGE,TRUNK LID
|
65810-60G10-000 |
— | ||
|
3
|
3
09208-06005-000 PIN |
09208-06005-000 |
from US $4.64 |
||
|
4
|
4
08332-11043-000
E ring
|
08332-11043-000 |
— | ||
| replacements | |||||
|
4
|
4
08332-1104B-000 E RING |
08332-1104B-000 |
from US $0.80 |
||
|
4
|
4
08332-1104A-000 E RING |
08332-1104A-000 |
from US $0.76 |
||
|
5
|
5
01550-06353-000
Bolt
95 MODEL,96 MODEL |
01550-06353-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0635B-000 Bolt95 MODEL,96 MODEL |
01550-0635B-000 |
from US $0.91 |
||
|
5
|
5
01550-0635A-000 Bolt95 MODEL,96 MODEL |
01550-0635A-000 |
from US $0.96 |
||
|
5
|
5
09116-06171-000 BOLT(6X30)Bolt (6x30) 97 MODEL |
09116-06171-000 |
from US $4.22 |
||
|
6
|
6
09160-06013-000
Washer
95 MODEL,96 MODEL |
09160-06013-000 |
— | ||
| replacement | |||||
|
6
|
6
09160-06121-000 WASHER(6.5X18X2)95 MODEL,96 MODEL |
09160-06121-000 |
from US $5.10 |
||
|
7
|
7
65831-60G00-000
バー,トランクリッドヒンジトーション,ライト
|
65831-60G00-000 |
— | ||
| replacement | |||||
|
7
|
7
65831-60G01-000
Bar,trunk lid hinge torsion,r
|
65831-60G01-000 |
— | ||
|
8
|
8
65832-60G00-000
バー,トランクリッドヒンジトーション,レフト
|
65832-60G00-000 |
— | ||
| replacement | |||||
|
8
|
8
65832-60G01-000
BAR,TRUNK LID HINGE TORSION,L
|
65832-60G01-000 |
— | ||
|
9
|
9
76691-79E00-000 HOLDER,TRUNK OPENER SPR |
76691-79E00-000 |
US $1.60 |
||
|
10
|
10
09321-05021-000 CUSHION |
09321-05021-000 |
US $1.60 |
||
|
11
|
11
72810-60G00-5PK
ガーニッシュ,トランクリッド(ブラック)
|
72810-60G00-5PK |
— | ||
| replacement | |||||
|
11
|
11
72810-60G02-5PK GARNISH,TRUNK LID |
72810-60G02-5PK |
US $50.05 |
||
|
12
|
12
09409-06322-5PK CLIP(BLACK)Clip (black) |
09409-06322-5PK |
from US $1.58 |
||
|
13
|
13
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
13
|
13
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
13
|
13
03142-05163-000
Screw
JS2GB31S T5104699~ |
03142-05163-000 |
— | ||
| replacement | |||||
|
13
|
13
03141-0516A-000 SCREWJS2GB31S T5104699~ |
03141-0516A-000 |
from US $0.80 |
||
|
14
|
14
76683-70C00-000 CUSHION,TRUNK LID/BACK DR |
76683-70C00-000 |
US $1.92 |
||
|
15
|
15
77192-50E00-000 CUSHION |
77192-50E00-000 |
US $2.56 |
||
|
16
|
16
09148-05035-000 NUT |
09148-05035-000 |
US $12.90 |
||
|
17
|
17
76630-60G00-5ZJ
TRIM,TRUNK ROOM SIDE,R
|
76630-60G00-5ZJ |
— | ||
|
18
|
18
76640-60G00-5ZJ
Trim,trrunk room side,l(black)
|
76640-60G00-5ZJ |
— | ||
|
19
|
19
76661-60G00-5ZJ
TRIM,TRUNK ROOM REAR
|
76661-60G00-5ZJ |
— | ||
|
20
|
20
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $0.95 |
||
|
21
|
21
36990-60B60-5PK NUT,TRNK ROOM SIDE TRIM |
36990-60B60-5PK |
US $1.60 |
||
|
22
|
22
84681-70C11-000
WEATHERSTRIP,TRUNK LID OPNG
OPENING |
84681-70C11-000 |
— | ||
