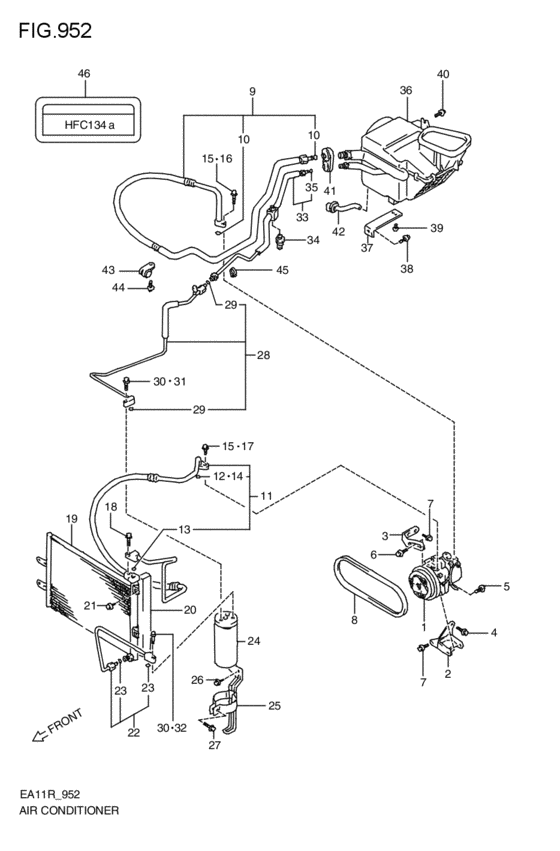

air-conditioner (1991-10-01~1995-05-01) Diagram Suzuki CAPPUCCINO
- Year
- 1991 - 1993
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- grade
- BA
- type
- T1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95200-80F10-000
Compressor & magneto clutch
T1; 1991-10-01~1993-08-01 |
95200-80F10-000 |
— | ||
|
2
|
2
95110-80F00-000
BRACKET,CPRSR
1991-10-01~1995-05-01 |
95110-80F00-000 |
— | ||
|
3
|
3
95121-80F00-000
ステー,コンプレッサアジャスト
1991-10-01~1995-05-01 |
95121-80F00-000 |
— | ||
|
4
|
4
01550-08303-000
Bolt
1991-10-01~1995-05-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0830B-000 Bolt1991-10-01~1995-05-01 |
01550-0830B-000 |
from US $1.06 |
||
|
4
|
4
01550-0830A-000 BOLTBolt, mount oil seal cover 1991-10-01~1995-05-01 |
01550-0830A-000 |
from US $1.12 |
||
|
5
|
5
01550-08163-000
Bolt, holder
1991-10-01~1995-05-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0816B-000 BOLT1991-10-01~1995-05-01 |
01550-0816B-000 |
from US $0.91 |
||
|
5
|
5
01550-0816A-000 BOLTBolt, rear 1991-10-01~1995-05-01 |
01550-0816A-000 |
from US $0.91 |
||
|
6
|
6
01550-08203-000
Bolt
1991-10-01~1995-05-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0820B-000 Bolt1991-10-01~1995-05-01 |
01550-0820B-000 |
from US $0.91 |
||
|
6
|
6
01550-0820A-000 BOLTBolt, funnel bracket 1991-10-01~1995-05-01 |
01550-0820A-000 |
from US $0.96 |
||
|
7
|
7
01550-08203-000
Bolt
1991-10-01~1995-05-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0820B-000 Bolt1991-10-01~1995-05-01 |
01550-0820B-000 |
from US $0.91 |
||
|
7
|
7
01550-0820A-000 BOLTBolt, funnel bracket 1991-10-01~1995-05-01 |
01550-0820A-000 |
from US $0.96 |
||
|
8
|
8
95141-60D01-000
Vベルト,L:762
1991-10-01~1995-05-01 |
95141-60D01-000 |
— | ||
| replacement | |||||
|
8
|
8
95141-60D03-000 V-BELT,7621991-10-01~1995-05-01 |
95141-60D03-000 |
US $17.60 |
||
|
9
|
9
95710-80F03-000 HOSE,SUCTT1; 1991-10-01~1993-08-01 |
95710-80F03-000 |
US $601.92 |
||
|
10
|
10
95897-60E00-000 O-RINGT1; 1991-10-01~1993-08-01 |
95897-60E00-000 |
US $30.50 |
||
|
11
|
11
95720-80F01-000 HOSE,DISCHARGET1; 1991-10-01~1993-08-01 |
95720-80F01-000 |
US $513.92 |
||
|
12
|
12
95894-60E00-000 O-RINGT1; 1991-10-01~1993-08-01 |
95894-60E00-000 |
US $1.28 |
||
|
13
|
13
09280-11007-000
Oリング,D:2.40,ID:11.0
T1; 1991-10-01~1993-08-01 |
09280-11007-000 |
— | ||
| replacements | |||||
|
13
|
13
95895-50G00-000 O-RING,D:2.4 ID:10.8T1; 1991-10-01~1993-08-01 |
95895-50G00-000 |
US $1.28 |
||
|
13
|
13
95895-60E00-000
New Genuine Part
T1; 1991-10-01~1993-08-01 |
95895-60E00-000 |
— | ||
|
15
|
15
01550-08203-000
Bolt
T1; 1991-10-01~1993-08-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0820B-000 BoltT1; 1991-10-01~1993-08-01 |
01550-0820B-000 |
from US $0.91 |
||
|
15
|
15
01550-0820A-000 BOLTBolt, funnel bracket T1; 1991-10-01~1993-08-01 |
01550-0820A-000 |
from US $0.96 |
||
|
18
|
18
01550-08253-000
Bolt, rear
T1; 1991-10-01~1993-08-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0825B-000 BOLTT1; 1991-10-01~1993-08-01 |
01550-0825B-000 |
from US $0.96 |
||
|
18
|
18
01550-0825A-000 BOLTT1; 1991-10-01~1993-08-01 |
01550-0825A-000 |
from US $1.06 |
||
|
19
|
19
95311-80F00-000 CONDENSERT1; 1991-10-01~1993-08-01 |
95311-80F00-000 |
US $461.12 |
||
|
20
|
20
95818-60F00-000
パッキング,コンデンサ
1991-10-01~1995-05-01 |
95818-60F00-000 |
— | ||
| replacement | |||||
|
20
|
20
95462-80F00-000 PACKING,AIR DAMPER1991-10-01~1995-05-01 |
95462-80F00-000 |
US $7.68 |
||
|
21
|
21
01550-06163-000
Bolt
1991-10-01~1995-05-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0616B-000 BOLT1991-10-01~1995-05-01 |
01550-0616B-000 |
from US $0.76 |
||
|
21
|
21
01550-0616A-000 BOLT1991-10-01~1995-05-01 |
01550-0616A-000 |
from US $0.76 |
||
|
22
|
22
95731-80F00-000 PIPE,CONDENSER OUTLETT1; 1991-10-01~1993-08-01 |
95731-80F00-000 |
US $43.20 |
||
|
23
|
23
95891-60E00-000 O-RINGT1; 1991-10-01~1993-08-01 |
95891-60E00-000 |
US $0.70 |
||
|
24
|
24
95330-60B10-000
レシーバドライヤ
T1; 1991-10-01~1993-08-01 |
95330-60B10-000 |
— | ||
| replacement | |||||
|
24
|
24
95330-60EG0-000
RECEIVER
T1; 1991-10-01~1993-08-01 |
95330-60EG0-000 |
— | ||
|
25
|
25
95350-80F00-000
ブラケット,レシーバ
1991-10-01~1995-05-01 |
95350-80F00-000 |
— | ||
| replacement | |||||
|
25
|
25
95350-80F01-000
BRACKET,RCVR
1991-10-01~1995-05-01 |
95350-80F01-000 |
— | ||
|
26
|
26
01550-06103-000
Bolt, front
1991-10-01~1995-05-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0610B-000 BoltBolt 1991-10-01~1995-05-01 |
01550-0610B-000 |
from US $0.80 |
||
|
26
|
26
01550-0610A-000 BOLT1991-10-01~1995-05-01 |
01550-0610A-000 |
from US $0.80 |
||
|
27
|
27
01550-06203-000
Bolt
1991-10-01~1995-05-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
27
|
27
01550-0620B-000 BOLTBolt, inspection cap 1991-10-01~1995-05-01 |
01550-0620B-000 |
from US $0.76 |
||
|
28
|
28
95732-80F00-000 PIPE,RECEIVER OUTLET NO.1T1; 1991-10-01~1993-08-01 |
95732-80F00-000 |
US $115.55 |
||
|
29
|
29
95891-60E00-000 O-RINGT1; 1991-10-01~1993-08-01 |
95891-60E00-000 |
US $0.70 |
||
|
30
|
30
01550-06253-000
Bolt (6x25)
T1; 1991-10-01~1995-05-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0625B-000 BOLTBolt, head cover T1; 1991-10-01~1995-05-01 |
01550-0625B-000 |
from US $0.91 |
||
|
30
|
30
01550-0625A-000 BOLTBolt T1; 1991-10-01~1995-05-01 |
01550-0625A-000 |
from US $0.96 |
||
|
33
|
33
95733-80F00-000
Pipe,rcvr out no.2
T1; 1991-10-01~1993-08-01 |
95733-80F00-000 |
— | ||
| replacement | |||||
|
33
|
33
95733-80F01-000 PIPE,RECEIVER OUTLET NO.2T1; 1991-10-01~1993-08-01 |
95733-80F01-000 |
US $209.76 |
||
|
34
|
34
95526-60C00-000
Switch comp,dual pressure
T1; 1991-10-01~1993-08-01 |
95526-60C00-000 |
— | ||
| replacement | |||||
|
34
|
34
95526-60C10-000 SWITCH,DUAL PRESSURET1; 1991-10-01~1993-08-01 |
95526-60C10-000 |
US $76.54 |
||
|
35
|
35
95891-60E00-000 O-RINGT1; 1991-10-01~1993-08-01 |
95891-60E00-000 |
US $0.70 |
||
|
36
|
36
95400-80F10-000
クーリングユニット
T1; 1991-10-01~1993-08-01 |
95400-80F10-000 |
— | ||
|
37
|
37
95491-80F00-000
BRACKET,HTR CONTROL BOX
1991-10-01~1995-05-01 |
95491-80F00-000 |
— | ||
|
38
|
38
01550-06103-000
Bolt, front
1991-10-01~1995-05-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
38
|
38
01550-0610B-000 BoltBolt 1991-10-01~1995-05-01 |
01550-0610B-000 |
from US $0.80 |
||
|
38
|
38
01550-0610A-000 BOLT1991-10-01~1995-05-01 |
01550-0610A-000 |
from US $0.80 |
||
|
39
|
39
03541-05103-000
Screw5 x 10
1991-10-01~1995-05-01 |
03541-05103-000 |
— | ||
| replacements | |||||
|
39
|
39
03541-0510B-000 SCREW1991-10-01~1995-05-01 |
03541-0510B-000 |
from US $0.80 |
||
|
39
|
39
03541-0510A-000 SCREWScrew, rr cover 1991-10-01~1995-05-01 |
03541-0510A-000 |
from US $0.68 |
||
|
40
|
40
01550-06163-000
Bolt
1991-10-01~1995-05-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
40
|
40
01550-0616B-000 BOLT1991-10-01~1995-05-01 |
01550-0616B-000 |
from US $0.76 |
||
|
40
|
40
01550-0616A-000 BOLT1991-10-01~1995-05-01 |
01550-0616A-000 |
from US $0.76 |
||
|
41
|
41
95833-50E01-000 GROMMET,JOINT PIPE1991-10-01~1995-05-01 |
95833-50E01-000 |
US $7.95 |
||
|
42
|
42
95481-80F10-000
Hose,drain
1991-10-01~1995-05-01 |
95481-80F10-000 |
— | ||
|
43
|
43
95772-70C51-000 CLAMP,SUCT HOSE1991-10-01~1995-05-01 |
95772-70C51-000 |
US $9.83 |
||
|
44
|
44
01550-06163-000
Bolt
1991-10-01~1995-05-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
44
|
44
01550-0616B-000 BOLT1991-10-01~1995-05-01 |
01550-0616B-000 |
from US $0.76 |
||
|
44
|
44
01550-0616A-000 BOLT1991-10-01~1995-05-01 |
01550-0616A-000 |
from US $0.76 |
||
|
45
|
45
09403-08321-000 CLAMP1991-10-01~1995-05-01 |
09403-08321-000 |
US $1.76 |
||
|
46
|
46
95955-72B00-000 LABEL,REFRIGERANTHFC134A; 1991-10-01~1995-05-01 |
95955-72B00-000 |
US $1.60 |
||
