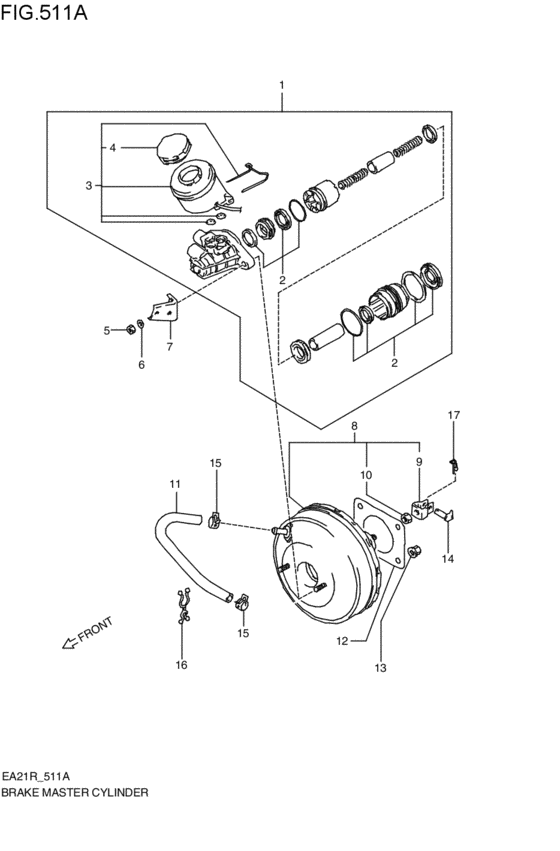

brakes master cylinder (1995-05-01~1997-07-01) Diagram Suzuki CAPPUCCINO
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-80F00-000
CYLINDER ASSY,BRAKE MASTER
STD; 1995-05-01~1997-07-01 |
51100-80F00-000 |
— | ||
|
2
|
2
51810-50E00-000
PISTON SET,BRAKE MASTER
1995-05-01~1997-07-01 |
51810-50E00-000 |
— | ||
|
3
|
3
51200-80F00-000
RESERVOIR ASSY,MASTER CYLINDER
1995-05-01~1997-07-01 |
51200-80F00-000 |
— | ||
|
4
|
4
51290-69D00-000 CAP SET,RESERVOIR1995-05-01~1997-07-01 |
51290-69D00-000 |
US $202.40 |
||
|
5
|
5
08310-00087-000 NUT1995-05-01~1997-07-01 |
08310-00087-000 |
from US $0.76 |
||
|
6
|
6
08321-01083-000
Lock washer
1995-05-01~1997-07-01 |
08321-01083-000 |
— | ||
| replacements | |||||
|
6
|
6
08321-0108B-000 WASHER,LOCK1995-05-01~1997-07-01 |
08321-0108B-000 |
from US $0.76 |
||
|
6
|
6
08321-0108A-000 WASHER,LOCK1995-05-01~1997-07-01 |
08321-0108A-000 |
from US $0.80 |
||
|
7
|
7
51199-80F00-000
BRACKET
1995-05-01~1997-07-01 |
51199-80F00-000 |
— | ||
|
8
|
8
51300-80F00-000
BOOSTER ASSY,BRAKE MASTER
1995-05-01~1997-07-01 |
51300-80F00-000 |
— | ||
|
9
|
9
51182-60D10-000 CLEVIS,CYLINDER PUSH ROD1995-05-01~1997-07-01 |
51182-60D10-000 |
US $14.32 |
||
|
10
|
10
08316-10103-000
Nut
1995-05-01~1997-07-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1010B-000 NUT1995-05-01~1997-07-01 |
08316-1010B-000 |
from US $0.80 |
||
|
11
|
11
51010-80F00-000 HOSE,BRAKE VACUUM1995-05-01~1997-07-01 |
51010-80F00-000 |
US $109.60 |
||
|
12
|
12
51132-82003-000 PACKING,BRAKE MASTER CYLINDER1995-05-01~1997-07-01 |
51132-82003-000 |
US $1.60 |
||
|
13
|
13
09159-08069-000
Nut
1995-05-01~1997-07-01 |
09159-08069-000 |
— | ||
| replacement | |||||
|
13
|
13
09159-08135-000 NUT1995-05-01~1997-07-01 |
09159-08135-000 |
from US $0.77 |
||
|
14
|
14
09200-08069-000 PIN1995-05-01~1997-07-01 |
09200-08069-000 |
US $21.70 |
||
|
15
|
15
09401-15404-000 CLIP1995-05-01~1997-07-01 |
09401-15404-000 |
from US $1.06 |
||
|
16
|
16
09408-00013-000 CLAMPClamp 1995-05-01~1997-07-01 |
09408-00013-000 |
US $1.92 |
||
|
17
|
17
09385-08007-000 PIN,SNAPClip 1995-05-01~1997-07-01 |
09385-08007-000 |
from US $1.09 |
||
