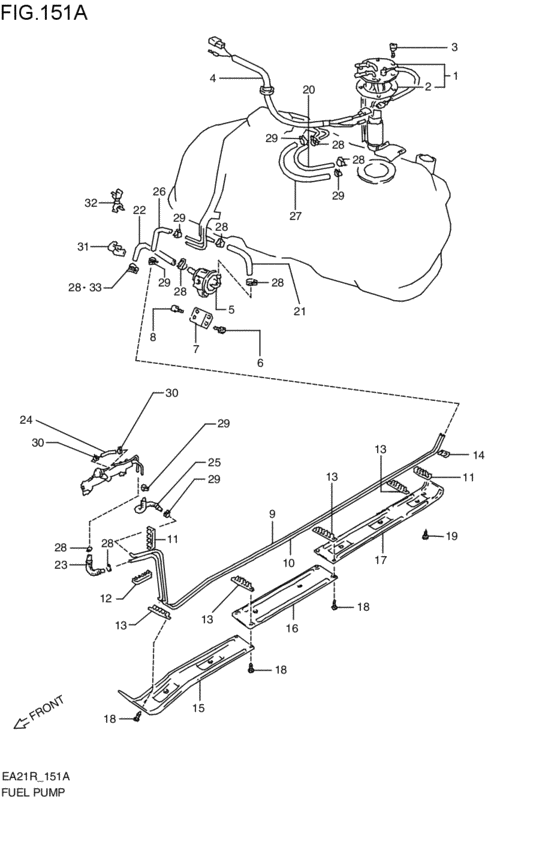

Fuel Pump (1995-05-01~1997-07-01) Diagram Suzuki CAPPUCCINO
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-80F50-000
PUMP ASSY, FUEL
1995-05-01~1997-07-01 |
15100-80F50-000 |
— | ||
|
2
|
2
15111-56F00-000 GASKET,FUEL PUMP1995-05-01~1997-07-01 |
15111-56F00-000 |
US $85.33 |
||
|
3
|
3
09136-05045-000 SCREW(5X10)1995-05-01~1997-07-01 |
09136-05045-000 |
US $0.96 |
||
|
4
|
4
15109-70G00-000
HARNESS,WIRING
1995-05-01~1997-07-01 |
15109-70G00-000 |
— | ||
|
5
|
5
15410-80F00-000 FILTER,FUEL1995-05-01~1997-07-01 |
15410-80F00-000 |
US $91.20 |
||
|
6
|
6
01550-08123-000
Bolt
1995-05-01~1997-07-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0812B-000 BoltPlug, drain 1995-05-01~1997-07-01 |
01550-0812B-000 |
from US $0.96 |
||
|
6
|
6
01550-0812A-000 BOLT1995-05-01~1997-07-01 |
01550-0812A-000 |
from US $0.91 |
||
|
7
|
7
15421-80F00-000
Bracket,fuel filter
1995-05-01~1997-07-01 |
15421-80F00-000 |
— | ||
|
8
|
8
01550-08123-000
Bolt
1995-05-01~1997-07-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0812B-000 BoltPlug, drain 1995-05-01~1997-07-01 |
01550-0812B-000 |
from US $0.96 |
||
|
8
|
8
01550-0812A-000 BOLT1995-05-01~1997-07-01 |
01550-0812A-000 |
from US $0.91 |
||
|
9
|
9
15811-80F00-000 PIPE,FUEL1995-05-01~1997-07-01 |
15811-80F00-000 |
US $180.80 |
||
|
10
|
10
15861-80F00-000
PIPE,FUEL RTN
1995-05-01~1997-07-01 |
15861-80F00-000 |
— | ||
|
11
|
11
15895-60A11-000 CLAMP,FUEL PIPE1995-05-01~1997-07-01 |
15895-60A11-000 |
US $2.56 |
||
|
12
|
12
15896-60A00-000
CLAMP,FUEL PIPE
1995-05-01~1997-07-01 |
15896-60A00-000 |
— | ||
|
13
|
13
15895-80F00-000 CLAMP,FUEL PIPE1995-05-01~1997-07-01 |
15895-80F00-000 |
US $3.04 |
||
|
14
|
14
15897-60A00-000
CLAMP,FUEL PIPE
1995-05-01~1997-07-01 |
15897-60A00-000 |
— | ||
|
15
|
15
15871-80F00-000 COVER,FUEL PIPE NO.11995-05-01~1997-07-01 |
15871-80F00-000 |
US $83.20 |
||
|
16
|
16
15872-80F00-000 COVER,FUEL PIPE NO.21995-05-01~1997-07-01 |
15872-80F00-000 |
US $64 |
||
|
17
|
17
15873-80F00-000 COVER,FUEL PIPE NO.31995-05-01~1997-07-01 |
15873-80F00-000 |
US $83.20 |
||
|
18
|
18
03541-05103-000
Screw5 x 10
1995-05-01~1997-07-01 |
03541-05103-000 |
— | ||
| replacements | |||||
|
18
|
18
03541-0510B-000 SCREW1995-05-01~1997-07-01 |
03541-0510B-000 |
from US $0.80 |
||
|
18
|
18
03541-0510A-000 SCREWScrew, rr cover 1995-05-01~1997-07-01 |
03541-0510A-000 |
from US $0.68 |
||
|
19
|
19
03541-06253-000
Screw, lower
1995-05-01~1997-07-01 |
03541-06253-000 |
— | ||
| replacement | |||||
|
19
|
19
03542-0625B-000 SCREW1995-05-01~1997-07-01 |
03542-0625B-000 |
US $0.80 |
||
|
20
|
20
09356-75137-600 HOSE(7.5X13.5X600)Hose (separator to filter) L:600>260; 1995-05-01~1997-07-01 |
09356-75137-600 |
from US $115.33 |
||
|
21
|
21
09356-75137-600 HOSE(7.5X13.5X600)Hose (separator to filter) L:600>170; 1995-05-01~1997-07-01 |
09356-75137-600 |
from US $115.33 |
||
|
22
|
22
09356-75137-600 HOSE(7.5X13.5X600)Hose (separator to filter) L:600>150; 1995-05-01~1997-07-01 |
09356-75137-600 |
from US $115.33 |
||
|
23
|
23
15815-80F50-000 HOSE,FUEL1995-05-01~1997-07-01 |
15815-80F50-000 |
US $118.40 |
||
|
24
|
24
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600>80; 1995-05-01~1997-07-01 |
09356-58127-600 |
from US $15.84 |
||
|
25
|
25
15880-80F50-000
ホース,フューエルリターン
1995-05-01~1997-07-01 |
15880-80F50-000 |
— | ||
| replacement | |||||
|
25
|
25
15880-83CV1-000 HOSE,FUEL1995-05-01~1997-07-01 |
15880-83CV1-000 |
US $15.20 |
||
|
26
|
26
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600>150; 1995-05-01~1997-07-01 |
09356-58127-600 |
from US $15.84 |
||
|
27
|
27
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600>290; 1995-05-01~1997-07-01 |
09356-58127-600 |
from US $15.84 |
||
|
28
|
28
09401-12404-000 CLIPClip 1995-05-01~1996-04-01 |
09401-12404-000 |
from US $1.52 |
||
|
29
|
29
09401-11407-000
CLIP
1995-05-01~1997-05-01 |
09401-11407-000 |
— | ||
| replacement | |||||
|
29
|
29
09401-11415-000 CLIP1995-05-01~1997-05-01 |
09401-11415-000 |
from US $1.06 |
||
|
29
|
29
09401-11415-000 CLIP1997-05-01~1997-07-01 |
09401-11415-000 |
from US $1.06 |
||
|
30
|
30
09401-11410-000
(ca) clip
1995-05-01~1997-07-01 |
09401-11410-000 |
— | ||
| replacement | |||||
|
30
|
30
09401-11413-000 CLIP1995-05-01~1997-07-01 |
09401-11413-000 |
from US $0.96 |
||
|
31
|
31
09408-00148-000 CLAMP1995-05-01~1997-07-01 |
09408-00148-000 |
US $25.80 |
||
|
32
|
32
09408-00050-000 CLAMP1995-05-01~1997-07-01 |
09408-00050-000 |
from US $1.28 |
||
|
33
|
33
09401-13418-000 CLIP1996-05-01~1997-07-01 |
09401-13418-000 |
US $27.20 |
||
