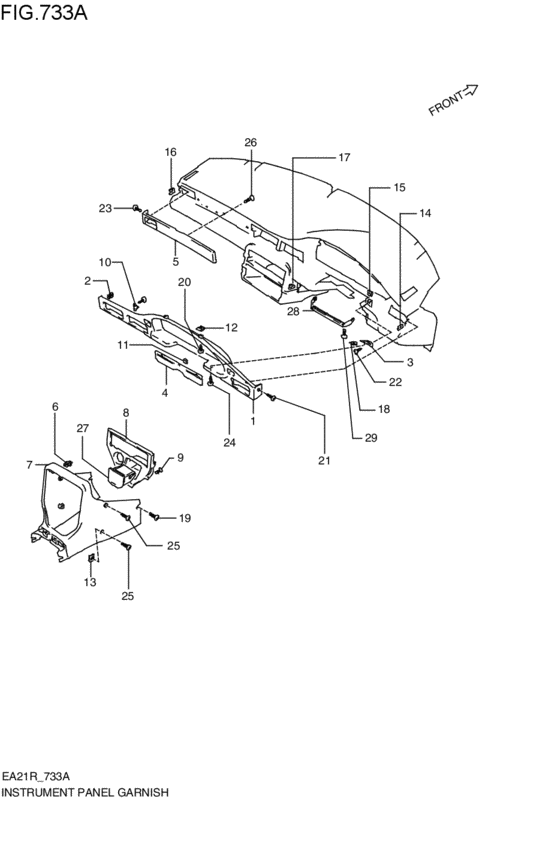

Облицовка приборной панели (1995-05-01~1997-07-01) Diagram Suzuki CAPPUCCINO
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73311-80F01-0CA
HOOD,METER CLUSTER
ブラック; 1995-05-01~1997-07-01 |
73311-80F01-0CA |
— | ||
|
2
|
2
73312-50F00-000 SPRING,METER CLUSTER1995-05-01~1997-07-01 |
73312-50F00-000 |
US $3.24 |
||
|
3
|
3
73312-80F00-000
BRACKET,METER CLUSTER
1995-05-01~1997-07-01 |
73312-80F00-000 |
— | ||
|
4
|
4
73313-80F00-000
Flap,steering column hole
1995-05-01~1997-07-01 |
73313-80F00-000 |
— | ||
|
5
|
5
73321-80F00-0CA
GARNISH,PNL,L
ブラック; 1995-05-01~1997-07-01 |
73321-80F00-0CA |
— | ||
|
6
|
6
73312-50F00-000 SPRING,METER CLUSTER1995-05-01~1997-07-01 |
73312-50F00-000 |
US $3.24 |
||
|
7
|
7
73331-80F01-5ES GARNISH,I/P CTRブラック; 1995-05-01~1997-07-01 |
73331-80F01-5ES |
US $101.94 |
||
|
8
|
8
73332-80F02-0CA
PANEL,I/P CTR GARNISH
ブラック; 1995-05-01~1997-07-01 |
73332-80F02-0CA |
— | ||
|
9
|
9
03541-04103-000
Screw
1995-05-01~1997-07-01 |
03541-04103-000 |
— | ||
| replacement | |||||
|
9
|
9
03541-0410A-000 SCREW1995-05-01~1997-07-01 |
03541-0410A-000 |
from US $0.80 |
||
|
10
|
10
73612-50E00-000
HOLDER,METER HOOD
1995-05-01~1997-07-01 |
73612-50E00-000 |
— | ||
|
11
|
11
09148-03003-000 NUT1995-05-01~1997-07-01 |
09148-03003-000 |
from US $1.28 |
||
|
12
|
12
09148-04034-000 NUT1995-05-01~1997-07-01 |
09148-04034-000 |
US $12.90 |
||
| replacement | |||||
|
12
|
12
09148-04015-000 NUT1995-05-01~1997-07-01 |
09148-04015-000 |
from US $1.60 |
||
|
13
|
13
09148-05003-000 NUT1995-05-01~1997-07-01 |
09148-05003-000 |
US $1.28 |
||
|
14
|
14
09148-05013-000 NUT1995-05-01~1997-07-01 |
09148-05013-000 |
from US $0.91 |
||
|
15
|
15
09148-05013-000 NUT1995-05-01~1997-07-01 |
09148-05013-000 |
from US $0.91 |
||
|
16
|
16
09148-05013-000 NUT1995-05-01~1997-07-01 |
09148-05013-000 |
from US $0.91 |
||
|
17
|
17
09148-05013-000 NUT1995-05-01~1997-07-01 |
09148-05013-000 |
from US $0.91 |
||
|
18
|
18
09148-05013-000 NUT1995-05-01~1997-07-01 |
09148-05013-000 |
from US $0.91 |
||
|
19
|
19
02142-05123-000
Screw 5x12
1995-05-01~1997-07-01 |
02142-05123-000 |
— | ||
| replacement | |||||
|
19
|
19
02142-0512A-000 SCREWScrew, lower 1995-05-01~1997-07-01 |
02142-0512A-000 |
from US $0.80 |
||
|
20
|
20
03141-04123-000
Screw
1995-05-01~1997-07-01 |
03141-04123-000 |
— | ||
| replacement | |||||
|
20
|
20
03142-0412B-000 SCREW1995-05-01~1997-07-01 |
03142-0412B-000 |
from US $0.80 |
||
|
21
|
21
03141-05123-000
Screw 5 x 12
1995-05-01~1997-07-01 |
03141-05123-000 |
— | ||
| replacement | |||||
|
21
|
21
03141-0512A-000 SCREWScrew, belt cooling duct 1995-05-01~1997-07-01 |
03141-0512A-000 |
from US $0.76 |
||
|
22
|
22
03141-05123-000
Screw 5 x 12
1995-05-01~1997-07-01 |
03141-05123-000 |
— | ||
| replacement | |||||
|
22
|
22
03141-0512A-000 SCREWScrew, belt cooling duct 1995-05-01~1997-07-01 |
03141-0512A-000 |
from US $0.76 |
||
|
23
|
23
03141-05123-000
Screw 5 x 12
1995-05-01~1997-07-01 |
03141-05123-000 |
— | ||
| replacement | |||||
|
23
|
23
03141-0512A-000 SCREWScrew, belt cooling duct 1995-05-01~1997-07-01 |
03141-0512A-000 |
from US $0.76 |
||
|
24
|
24
03141-05123-000
Screw 5 x 12
1995-05-01~1997-07-01 |
03141-05123-000 |
— | ||
| replacement | |||||
|
24
|
24
03141-0512A-000 SCREWScrew, belt cooling duct 1995-05-01~1997-07-01 |
03141-0512A-000 |
from US $0.76 |
||
|
25
|
25
03141-05163-000
Screw
1995-05-01~1997-07-01 |
03141-05163-000 |
— | ||
| replacement | |||||
|
25
|
25
03141-0516A-000 SCREW1995-05-01~1997-07-01 |
03141-0516A-000 |
from US $0.80 |
||
|
26
|
26
03541-05123-000
Screw
1995-05-01~1997-07-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
26
|
26
03541-0512B-000 SCREW1995-05-01~1997-07-01 |
03541-0512B-000 |
from US $0.76 |
||
|
27
|
27
73710-80F00-0CA
CASE,ASHTRAY
ブラック; 1995-05-01~1997-07-01 |
73710-80F00-0CA |
— | ||
|
28
|
28
73851-80F00-000
BRACKET,RADIO
1995-05-01~1997-07-01 |
73851-80F00-000 |
— | ||
|
29
|
29
02142-05123-000
Screw 5x12
1995-05-01~1997-07-01 |
02142-05123-000 |
— | ||
| replacement | |||||
|
29
|
29
02142-0512A-000 SCREWScrew, lower 1995-05-01~1997-07-01 |
02142-0512A-000 |
from US $0.80 |
||
