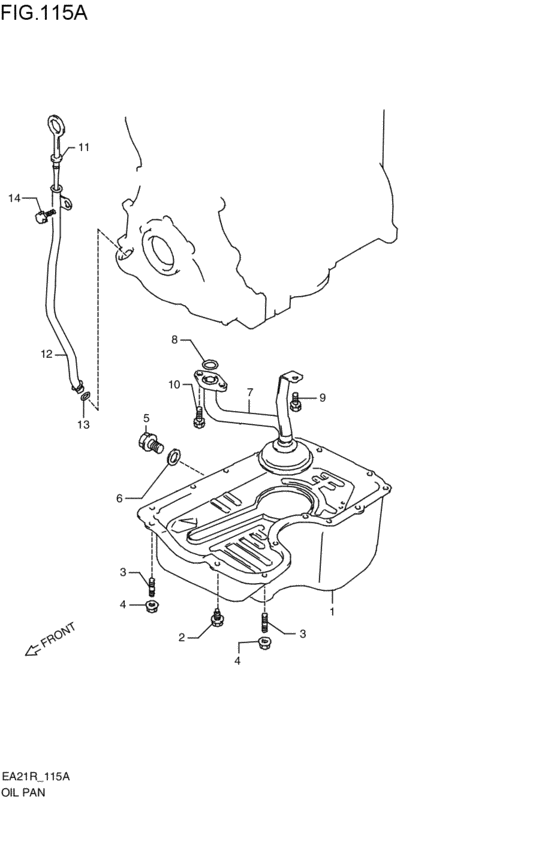

oil pan (1995-05-01~1997-07-01) Diagram Suzuki CAPPUCCINO
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-80F51-000
パン,オイル
1995-05-01~1997-01-01 |
11510-80F51-000 |
— | ||
|
1
|
1
11510-80F52-000
パン,オイル
1997-01-01~1997-07-01 |
11510-80F52-000 |
— | ||
|
2
|
2
09117-06033-000 BOLT(6X12)1995-05-01~1997-01-01 |
09117-06033-000 |
US $1.06 |
||
|
2
|
2
09117-06062-000 BOLT(6X16)1997-01-01~1997-07-01 |
09117-06062-000 |
US $15.80 |
||
|
3
|
3
01411-06123-000
Bolt, stud
1997-01-01~1997-07-01 |
01411-06123-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0612A-000 BOLT,STUD1997-01-01~1997-07-01 |
01411-0612A-000 |
from US $0.67 |
||
|
3
|
3
09108-06113-000 BOLT,STUD1995-05-01~1997-01-01 |
09108-06113-000 |
US $13.60 |
||
|
4
|
4
08316-10063-000
Nut
1995-05-01~1997-01-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1006B-000 NUT1995-05-01~1997-01-01 |
08316-1006B-000 |
from US $0.76 |
||
|
5
|
5
09247-14027-000 PLUG(14X11.5)Plug, oil drain 1995-05-01~1997-07-01 |
09247-14027-000 |
from US $1.76 |
||
| replacement | |||||
|
5
|
5
09247-14044-000 DRAIN PLUG (M14x1.5)1995-05-01~1997-07-01 |
09247-14044-000 |
from US $1.33 |
||
|
6
|
6
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union 1995-05-01~1997-07-01 |
09168-14015-000 |
from US $1.17 |
||
|
7
|
7
16520-80F00-000
STRAINER,OIL PUMP
1995-05-01~1997-01-01 |
16520-80F00-000 |
— | ||
|
7
|
7
16520-80F01-000
ストレーナ,オイルポンプ
1997-01-01~1997-07-01 |
16520-80F01-000 |
— | ||
|
8
|
8
09280-16005-000 O RING(D:2.4,ID:15.8)O ring, exhaust pipe 1995-05-01~1997-07-01 |
09280-16005-000 |
from US $1.40 |
||
|
9
|
9
01550-06103-000
Bolt, front
1995-05-01~1997-07-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0610B-000 BoltBolt 1995-05-01~1997-07-01 |
01550-0610B-000 |
from US $0.80 |
||
|
9
|
9
01550-0610A-000 BOLT1995-05-01~1997-07-01 |
01550-0610A-000 |
from US $0.80 |
||
|
10
|
10
01570-06163-000
Bolt
1995-05-01~1997-07-01 |
01570-06163-000 |
— | ||
| replacements | |||||
|
10
|
10
01570-0616B-000 Bolt1995-05-01~1997-07-01 |
01570-0616B-000 |
from US $0.80 |
||
|
10
|
10
01570-0616A-000 Bolt1995-05-01~1997-07-01 |
01570-0616A-000 |
from US $0.80 |
||
|
11
|
11
16910-80F51-000
ゲージ,オイルレベル
1995-05-01~1997-01-01 |
16910-80F51-000 |
— | ||
|
11
|
11
16910-80F52-000
ゲージ,オイルレベル
1997-01-01~1997-05-01 |
16910-80F52-000 |
— | ||
| replacements | |||||
|
11
|
11
16910-80F53-000
ゲージ,オイルレベル
1997-01-01~1997-05-01 |
16910-80F53-000 |
— | ||
|
11
|
11
16930-83C52-000
ガイド,オイルレベルゲージ
1997-01-01~1997-05-01 |
16930-83C52-000 |
— | ||
|
11
|
11
16910-80F53-000
ゲージ,オイルレベル
1997-05-01~1997-07-01 |
16910-80F53-000 |
— | ||
|
12
|
12
16930-80F50-000
ガイド,オイルレベルゲージ
1995-05-01~1997-01-01 |
16930-80F50-000 |
— | ||
|
12
|
12
16930-83C52-000
ガイド,オイルレベルゲージ
1997-01-01~1997-07-01 |
16930-83C52-000 |
— | ||
|
13
|
13
09280-10016-000 O RING(D:1.9,ID:9.8)O ring 1995-05-01~1997-07-01 |
09280-10016-000 |
from US $1.52 |
||
|
14
|
14
01550-06123-000
Bolt
1995-05-01~1997-07-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0612B-000 BOLTBolt, clamp 1995-05-01~1997-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
14
|
14
01550-0612A-000 BOLT1995-05-01~1997-07-01 |
01550-0612A-000 |
from US $0.76 |
||
