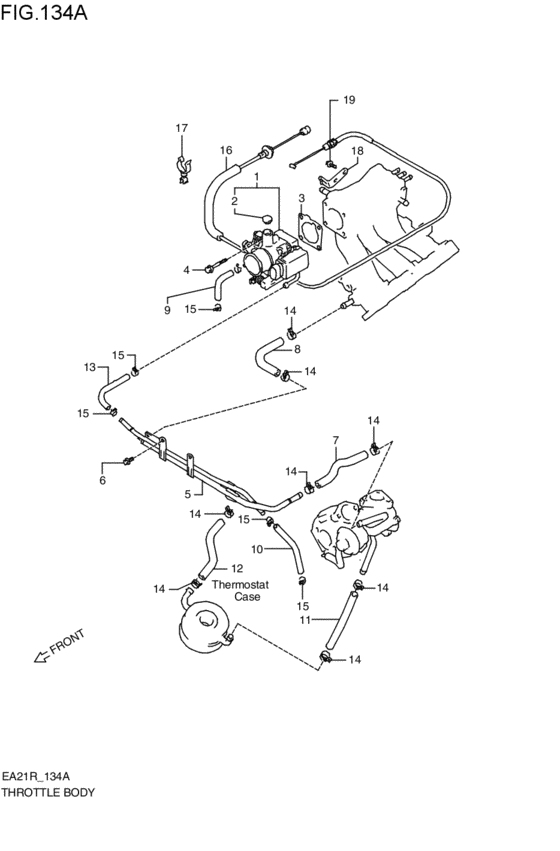

throttle body (1995-05-01~1997-07-01) Diagram Suzuki CAPPUCCINO
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-80F60-000
Throttle body
1995-05-01~1997-07-01 |
13400-80F60-000 |
— | ||
|
2
|
2
13296-86500-000
CAP
1995-05-01~1997-07-01 |
13296-86500-000 |
— | ||
|
3
|
3
13421-73G01-000
GASKET,THROTTLE BODY
1995-05-01~1997-07-01 |
13421-73G01-000 |
— | ||
|
4
|
4
01550-06503-000
Bolt
1995-05-01~1997-07-01 |
01550-06503-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0650B-000 Bolt1995-05-01~1997-07-01 |
01550-0650B-000 |
US $15.50 |
||
|
4
|
4
01550-0650A-000 BOLTBolt (6x50) 1995-05-01~1997-07-01 |
01550-0650A-000 |
from US $0.96 |
||
|
5
|
5
17960-80F50-000
パイプ,ターボ/オイルクーラ
1995-05-01~1996-11-01 |
17960-80F50-000 |
— | ||
| replacement | |||||
|
5
|
5
17960-80F5V-000
パイプ,ターボ/オイルクーラ
1995-05-01~1996-11-01 |
17960-80F5V-000 |
— | ||
|
5
|
5
17960-80F51-000
パイプ,ターボ/オイルクーラ
1995-10-01~1996-11-01 |
17960-80F51-000 |
— | ||
| replacement | |||||
|
5
|
5
17960-80F5V-000
パイプ,ターボ/オイルクーラ
1995-10-01~1996-11-01 |
17960-80F5V-000 |
— | ||
|
6
|
6
01550-06123-000
Bolt
1995-05-01~1997-07-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0612B-000 BOLTBolt, clamp 1995-05-01~1997-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
6
|
6
01550-0612A-000 BOLT1995-05-01~1997-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
7
|
7
17856-80F50-000
ホース,パイプツーターボ
1995-05-01~1997-07-01 |
17856-80F50-000 |
— | ||
| replacements | |||||
|
7
|
7
09401-14404-000 CLIP1995-05-01~1997-07-01 |
09401-14404-000 |
from US $3.59 |
||
|
7
|
7
17856-80F51-000
ホース,パイプツーターボ
1995-05-01~1997-07-01 |
17856-80F51-000 |
— | ||
|
8
|
8
17859-80F50-000
ホース,マニホールドツーパイプ
1995-05-01~1997-07-01 |
17859-80F50-000 |
— | ||
| replacements | |||||
|
8
|
8
09401-14404-000 CLIP1995-05-01~1997-07-01 |
09401-14404-000 |
from US $3.59 |
||
|
8
|
8
17972-78A50-000
ホース,パイプツーインレットケース
1995-05-01~1997-07-01 |
17972-78A50-000 |
— | ||
|
9
|
9
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>150; 1995-05-01~1997-07-01 |
09352-70121-600 |
from US $4.84 |
||
|
10
|
10
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>100; 1995-05-01~1997-07-01 |
09352-70121-600 |
from US $4.84 |
||
|
11
|
11
17858-80F60-000
ホース,ターボツーオイルクーラ
1996-04-01~1997-07-01 |
17858-80F60-000 |
— | ||
| replacements | |||||
|
11
|
11
09401-14404-000 CLIP1996-04-01~1997-07-01 |
09401-14404-000 |
from US $3.59 |
||
|
11
|
11
17858-80F70-000
ホース,9X14X600
1996-04-01~1997-07-01 |
17858-80F70-000 |
— | ||
|
11
|
11
09352-90141-600 HOSE(9X14X600)L:600>160; 1995-05-01~1996-02-01 |
09352-90141-600 |
US $26.40 |
||
|
12
|
12
17858-80F50-000
ホース,オイルクーラツーパイプ
1995-05-01~1997-07-01 |
17858-80F50-000 |
— | ||
| replacements | |||||
|
12
|
12
09401-14404-000 CLIP1995-05-01~1997-07-01 |
09401-14404-000 |
from US $3.59 |
||
|
12
|
12
17858-80F51-000
ホース,オイルクーラツーパイプ
1995-05-01~1997-07-01 |
17858-80F51-000 |
— | ||
|
13
|
13
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>180; 1995-05-01~1997-07-01 |
09352-70121-600 |
from US $4.84 |
||
|
14
|
14
09401-13417-000 CLIP1995-05-01~1997-07-01 |
09401-13417-000 |
from US $1.60 |
||
|
15
|
15
09401-11407-000
CLIP
1995-05-01~1997-02-01 |
09401-11407-000 |
— | ||
| replacement | |||||
|
15
|
15
09401-11415-000 CLIP1995-05-01~1997-02-01 |
09401-11415-000 |
from US $1.06 |
||
|
15
|
15
09401-11415-000 CLIP1997-03-01~1997-07-01 |
09401-11415-000 |
from US $1.06 |
||
|
16
|
16
15910-80F00-000 CABLE ASSY,ACCEL1995-05-01~1997-07-01 |
15910-80F00-000 |
US $172.80 |
||
|
17
|
17
09408-00079-000 CLAMP1995-05-01~1997-07-01 |
09408-00079-000 |
US $1.92 |
||
|
18
|
18
15919-73B51-000
GUIDE,ACCEL CABLE
1995-05-01~1997-07-01 |
15919-73B51-000 |
— | ||
|
19
|
19
01550-06123-000
Bolt
1995-05-01~1997-07-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0612B-000 BOLTBolt, clamp 1995-05-01~1997-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
19
|
19
01550-0612A-000 BOLT1995-05-01~1997-07-01 |
01550-0612A-000 |
from US $0.76 |
||
