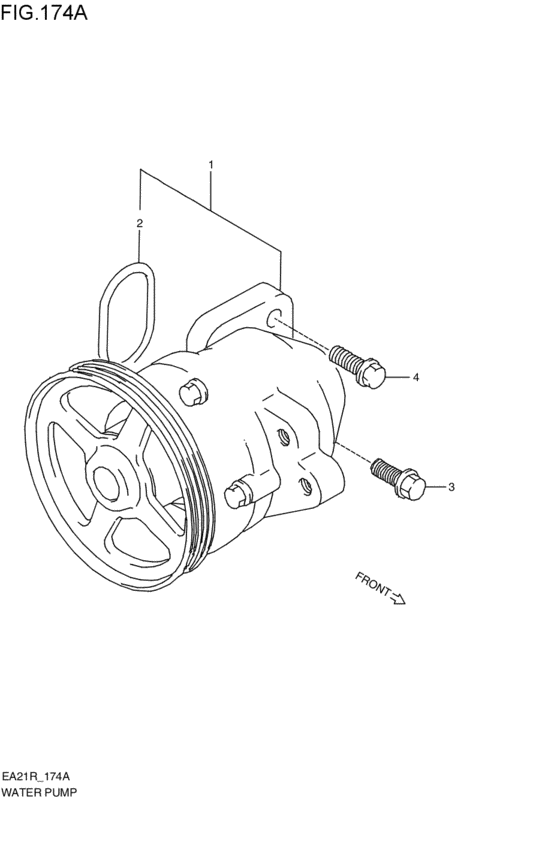

water pump (1995-05-01~1997-07-01) Diagram Suzuki CAPPUCCINO
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-80811-000
ポンプセット,ウォータ
1995-05-01~1997-07-01 |
17400-80811-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-80815-000
PUMP SET,WATER
1995-05-01~1997-07-01 |
17400-80815-000 |
— | ||
|
2
|
2
17611-73G00-000
O ring
1995-05-01~1997-07-01 |
17611-73G00-000 |
— | ||
| replacement | |||||
|
2
|
2
17611-73G03-000 O-RING,WATER PUMP1995-05-01~1997-07-01 |
17611-73G03-000 |
US $4.95 |
||
|
3
|
3
01550-08403-000
Bolt
1995-05-01~1997-07-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0840B-000 Bolt1995-05-01~1997-07-01 |
01550-0840B-000 |
from US $1.12 |
||
|
3
|
3
01550-0840A-000 BOLT1995-05-01~1997-07-01 |
01550-0840A-000 |
from US $1.12 |
||
|
4
|
4
01550-08303-000
Bolt
1995-05-01~1997-07-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0830B-000 Bolt1995-05-01~1997-07-01 |
01550-0830B-000 |
from US $1.06 |
||
|
4
|
4
01550-0830A-000 BOLTBolt, mount oil seal cover 1995-05-01~1997-07-01 |
01550-0830A-000 |
from US $1.12 |
||
