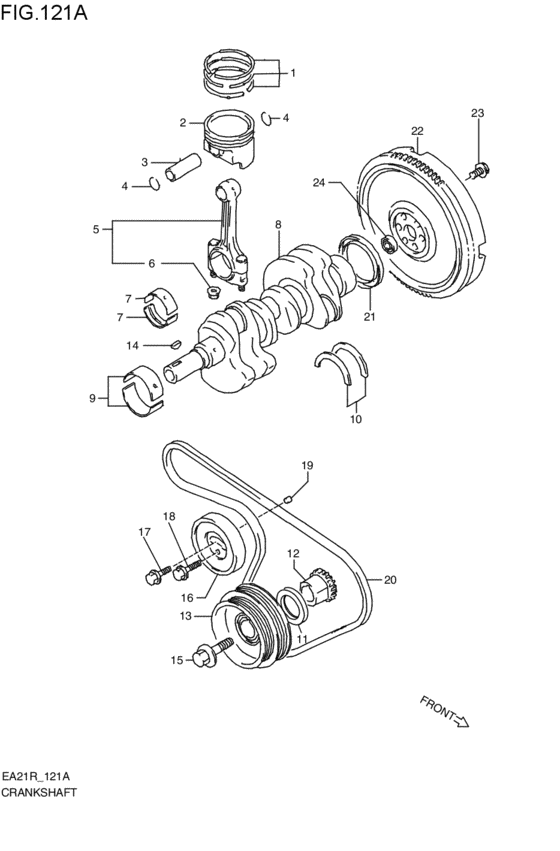

crankshaft (1995-05-01~1997-07-01) Diagram Suzuki CAPPUCCINO
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- grade
- BA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12140-73G00-000
リングセット,ピストン,STD
1995-05-01~1996-08-01 |
12140-73G00-000 |
— | ||
|
1
|
1
12140-73G01-000 RING SET,PISTON STD1996-09-01~1997-07-01 |
12140-73G01-000 |
from US $51.62 |
||
|
2
|
2
12111-73G00-0A0
ピストン,STD,マーク 1
マ-ク 1; 1995-05-01~1996-08-01 |
12111-73G00-0A0 |
— | ||
| replacements | |||||
|
2
|
2
12111-73G01-0A0
PISTON,STD MARK 1
マ-ク 1; 1995-05-01~1996-08-01 |
12111-73G01-0A0 |
— | ||
|
2
|
2
12140-73G01-000 RING SET,PISTON STDマ-ク 1; 1995-05-01~1996-08-01 |
12140-73G01-000 |
from US $51.62 |
||
|
2
|
2
12111-73G00-0B0
ピストン,STD,マーク 2
マ-ク 2; 1995-05-01~1996-08-01 |
12111-73G00-0B0 |
— | ||
| replacements | |||||
|
2
|
2
12111-73G01-0B0
ピストン,STD,マーク 2
マ-ク 2; 1995-05-01~1996-08-01 |
12111-73G01-0B0 |
— | ||
|
2
|
2
12140-73G01-000 RING SET,PISTON STDマ-ク 2; 1995-05-01~1996-08-01 |
12140-73G01-000 |
from US $51.62 |
||
|
2
|
2
12111-73G01-0A0
PISTON,STD MARK 1
マ-ク 1; 1996-09-01~1997-07-01 |
12111-73G01-0A0 |
— | ||
|
2
|
2
12111-73G01-0B0
ピストン,STD,マーク 2
マ-ク 2; 1996-09-01~1997-07-01 |
12111-73G01-0B0 |
— | ||
|
3
|
3
12151-54A50-000 PIN,PISTON1995-05-01~1997-07-01 |
12151-54A50-000 |
from US $7.92 |
||
|
4
|
4
09381-18005-000 CIRCLIPNHK; 1995-05-01~1997-07-01 |
09381-18005-000 |
from US $1.12 |
||
|
5
|
5
12160-73G00-000
CONNROD ASSY
1995-05-01~1997-07-01 |
12160-73G00-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-73G01-000 CONNROD ASSY1995-05-01~1997-07-01 |
12160-73G01-000 |
from US $117.20 |
||
|
6
|
6
09159-08033-000 NUT1995-05-01~1997-07-01 |
09159-08033-000 |
from US $1.34 |
||
|
7
|
7
12181-54A50-0A0 BEARING,CONNRODBearing, connrod 1995-05-01~1997-07-01 |
12181-54A50-0A0 |
from US $15.91 |
||
| replacement | |||||
|
7
|
7
12181-81051-000
BEARING,CONNROD std
1995-05-01~1997-07-01 |
12181-81051-000 |
— | ||
|
8
|
8
12221-73G01-000
クランクシャフト
1995-05-01~1997-01-01 |
12221-73G01-000 |
— | ||
|
8
|
8
12221-73G60-000
クランクシャフト
1997-01-01~1997-07-01 |
12221-73G60-000 |
— | ||
| replacement | |||||
|
8
|
8
12221-73G70-000 CRANKSHAFT1997-01-01~1997-07-01 |
12221-73G70-000 |
US $1,362.20 |
||
|
9
|
9
12340-82000-0A0 BEARING SET,CRANKSHAFT STD (Green)カラー:グリーン; 1995-05-01~1997-07-01 |
12340-82000-0A0 |
US $47.20 |
||
|
9
|
9
12340-82000-0B0 BEARING SET,CRANKSHAFT STD (Black)カラー:ブラック; 1995-05-01~1997-07-01 |
12340-82000-0B0 |
US $57.60 |
||
|
9
|
9
12340-82000-0C0 BEARING SET,CRANKSHAFT STD (None)カラー:ナシ; 1995-05-01~1997-07-01 |
12340-82000-0C0 |
US $57.60 |
||
|
9
|
9
12340-82000-0D0 BEARING SET,CRANKSHAFT STD (Yellow)カラー:イエロー; 1995-05-01~1997-07-01 |
12340-82000-0D0 |
US $47.20 |
||
|
9
|
9
12340-82000-0E0 BEARING SET,CRANKSHAFT STD (Blue)カラー:ブルー; 1995-05-01~1997-07-01 |
12340-82000-0E0 |
US $47.20 |
||
|
10
|
10
12300-82820-000
Bearing set, crank thrust (STD)
1995-05-01~1997-07-01 |
12300-82820-000 |
— | ||
| replacement | |||||
|
10
|
10
12300-60840-000 BEARING SET,CRANK THRUST (STD)1995-05-01~1997-07-01 |
12300-60840-000 |
from US $9.70 |
||
|
10
|
10
12300-82820-012
Bearing set, crank thrust (OS:0.125)
1995-05-01~1997-07-01 |
12300-82820-012 |
— | ||
| replacement | |||||
|
10
|
10
12300-60840-012 BEARING SET,CRANK THRUST (OS:0.125)1995-05-01~1997-07-01 |
12300-60840-012 |
from US $9.36 |
||
|
11
|
11
09283-35047-000 SEAL,OIL(35X47X6)Seal, oil 1995-05-01~1997-07-01 |
09283-35047-000 |
from US $8.66 |
||
|
12
|
12
12631-73G00-000
スプロケット,クランクシャフトタイミング
1995-05-01~1997-01-01 |
12631-73G00-000 |
— | ||
|
12
|
12
12631-73G60-000
Sprocket, crank timing
1997-01-01~1997-07-01 |
12631-73G60-000 |
— | ||
| replacement | |||||
|
12
|
12
12631-58J00-000 SPROCKET,CRANKSHAFT TIMING1997-01-01~1997-07-01 |
12631-58J00-000 |
from US $31.32 |
||
|
13
|
13
12611-80F51-000
プーリ,クランクシャフト
1995-05-01~1997-01-01 |
12611-80F51-000 |
— | ||
|
13
|
13
12611-80F52-000
プーリ,クランクシャフト
1997-01-01~1997-07-01 |
12611-80F52-000 |
— | ||
|
14
|
14
09420-04008-000 KEY1997-01-01~1997-07-01 |
09420-04008-000 |
from US $1.76 |
||
|
14
|
14
08341-31059-000 KEYKey 1995-05-01~1997-01-01 |
08341-31059-000 |
from US $1.49 |
||
|
15
|
15
12619-73G00-000
Bolt
1995-05-01~1997-07-01 |
12619-73G00-000 |
— | ||
| replacement | |||||
|
15
|
15
12619-69G10-000 BOLT,CRANK PULLEY1995-05-01~1997-07-01 |
12619-69G10-000 |
from US $8.01 |
||
|
16
|
16
17540-80F50-000
テンショナアッシ,ウォータポンプベルト
1995-05-01~1997-07-01 |
17540-80F50-000 |
— | ||
| replacement | |||||
|
16
|
16
17540-80F51-000 TENSIONER ASSY,WATER PUMP BELT1995-05-01~1997-07-01 |
17540-80F51-000 |
from US $114.91 |
||
|
17
|
17
07120-08253-000
Bolt, front
1995-05-01~1997-07-01 |
07120-08253-000 |
— | ||
| replacement | |||||
|
17
|
17
07120-0825B-000 BOLT1995-05-01~1997-07-01 |
07120-0825B-000 |
from US $1.28 |
||
|
18
|
18
07120-08303-000
Bolt
1995-05-01~1997-07-01 |
07120-08303-000 |
— | ||
| replacement | |||||
|
18
|
18
07120-0830A-000 Bolt1995-05-01~1997-07-01 |
07120-0830A-000 |
from US $1.44 |
||
|
19
|
19
04211-11129-000 PIN1995-05-01~1997-07-01 |
04211-11129-000 |
from US $0.95 |
||
|
20
|
20
17521-80F51-000
ベルト,ウォータポンプ,4PK1035 R34ー7
1995-05-01~1997-07-01 |
17521-80F51-000 |
— | ||
| replacement | |||||
|
20
|
20
17521-80F52-000 BELT,WATER PUMP 4PK10301995-05-01~1997-07-01 |
17521-80F52-000 |
US $45.60 |
||
|
21
|
21
09283-60005-000
OIL SEAL
1995-05-01~1997-01-01 |
09283-60005-000 |
— | ||
| replacement | |||||
|
21
|
21
09283-60009-000 SEAL,OIL(60X80X8)1995-05-01~1997-01-01 |
09283-60009-000 |
from US $17.91 |
||
|
21
|
21
09283-79001-000
Seal, oil (78x99x8)
1997-01-01~1997-07-01 |
09283-79001-000 |
— | ||
| replacement | |||||
|
21
|
21
09283-79002-000 SEAL,OIL(79X99X8)1997-01-01~1997-07-01 |
09283-79002-000 |
from US $34.61 |
||
|
22
|
22
12620-80F03-000 FLYWHEEL5MT; 1995-05-01~1997-01-01 |
12620-80F03-000 |
US $429.44 |
||
|
22
|
22
12620-80F04-000
フライホイール
5MT; 1997-01-01~1997-07-01 |
12620-80F04-000 |
— | ||
|
23
|
23
09103-10097-000 BOLT(10X17)5MT; 1995-05-01~1997-01-01 |
09103-10097-000 |
US $1.12 |
||
|
23
|
23
09103-10282-000 BOLT(10X18.5)5MT; 1997-01-01~1997-07-01 |
09103-10282-000 |
US $2.08 |
||
|
24
|
24
12623-70B00-000 BEARING,INPUT SHAFT5MT; 1995-05-01~1997-07-01 |
12623-70B00-000 |
US $15.96 |
||
