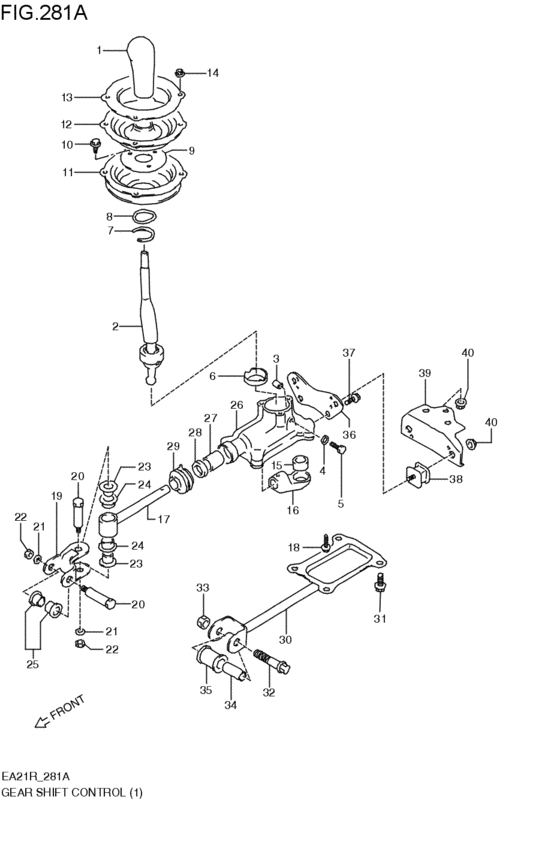

gearlever control (5MT; 1995-05-01~1997-07-01) Diagram Suzuki CAPPUCCINO
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- grade
- BA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28113-80F00-5PK
KNOB,GR SHF CONT LEVER
ブラック; 5MT; 1995-05-01~1997-07-01 |
28113-80F00-5PK |
— | ||
|
2
|
2
28110-80F01-000 LEVER,GEAR SHF CONT5MT; 1995-05-01~1997-07-01 |
28110-80F01-000 |
US $520.96 |
||
|
3
|
3
28115-80F00-000 BUSH,GEAR SELECT5MT; 1995-05-01~1997-07-01 |
28115-80F00-000 |
US $4 |
||
|
4
|
4
09162-08008-000 WASHER,LOCKLock washer 5MT; 1995-05-01~1997-07-01 |
09162-08008-000 |
from US $0.80 |
||
|
5
|
5
09135-08006-000 BOLT(8X20)5MT; 1995-05-01~1997-07-01 |
09135-08006-000 |
US $2.24 |
||
|
6
|
6
28117-82C00-000
シート,ギヤコントロール,ロア
5MT; 1995-05-01~1997-07-01 |
28117-82C00-000 |
— | ||
| replacement | |||||
|
6
|
6
28117-82C02-000 SEAT,GEAR CONTROL LOWER5MT; 1995-05-01~1997-07-01 |
28117-82C02-000 |
US $15.36 |
||
|
7
|
7
28118-80F00-006 SHIM,GEAR SHIFT LEVER T:0.6CHKK; 5MT; 1995-05-01~1997-07-01 |
28118-80F00-006 |
US $17.60 |
||
|
8
|
8
28119-80F00-000 SPRING,GEAR SHF CONT LVR SEAT5MT; 1995-05-01~1997-07-01 |
28119-80F00-000 |
US $14.88 |
||
|
9
|
9
25125-69001-000
COVER,LEVER CASE
5MT; 1995-05-01~1997-07-01 |
25125-69001-000 |
— | ||
|
10
|
10
01550-06123-000
Bolt
5MT; 1995-05-01~1997-07-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BOLTBolt, clamp 5MT; 1995-05-01~1997-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 BOLT5MT; 1995-05-01~1997-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
28135-80F00-000
BOOT,GR SHF CONT LEVER LOWER
5MT; 1995-05-01~1997-07-01 |
28135-80F00-000 |
— | ||
|
12
|
12
28136-80F00-000
BOOT,GR SHF CONT LEVER UPPER
5MT; 1995-05-01~1997-07-01 |
28136-80F00-000 |
— | ||
|
13
|
13
28137-80F00-000
COVER,GEAR SHF CONT BOOT
5MT; 1995-05-01~1997-07-01 |
28137-80F00-000 |
— | ||
|
14
|
14
08316-10063-000
Nut
5MT; 1995-05-01~1997-07-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1006B-000 NUT5MT; 1995-05-01~1997-07-01 |
08316-1006B-000 |
from US $0.76 |
||
|
15
|
15
25551-60A02-000 BUSH,GEAR CONT LEVER5MT; 1995-05-01~1997-07-01 |
25551-60A02-000 |
US $2.40 |
||
|
16
|
16
25541-80F00-000
ARM,GEAR SHIFT RR
5MT; 1995-05-01~1997-07-01 |
25541-80F00-000 |
— | ||
|
17
|
17
28270-80F00-000
Shaft,gr shf rear
5MT; 1995-05-01~1997-07-01 |
28270-80F00-000 |
— | ||
|
18
|
18
25542-80F00-000
ボルト,ギヤシフトリヤアーム
5MT; 1995-05-01~1997-07-01 |
25542-80F00-000 |
— | ||
| replacement | |||||
|
18
|
18
25542-81AV0-000 BOLT,GEAR SHF RR ARM5MT; 1995-05-01~1997-07-01 |
25542-81AV0-000 |
US $3.02 |
||
|
19
|
19
28271-60B01-000 JOINT,GEAR SHF CONT5MT; 1995-05-01~1997-07-01 |
28271-60B01-000 |
US $7.40 |
||
|
20
|
20
28256-60B00-000
ボルト,コントロールシャフトレバー
5MT; 1995-05-01~1997-07-01 |
28256-60B00-000 |
— | ||
| replacement | |||||
|
20
|
20
09111-08089-000 BOLT(8X51)5MT; 1995-05-01~1997-07-01 |
09111-08089-000 |
US $50.80 |
||
|
21
|
21
09162-08008-000 WASHER,LOCKLock washer 5MT; 1995-05-01~1997-07-01 |
09162-08008-000 |
from US $0.80 |
||
|
22
|
22
09140-08021-000 NUT5MT; 1995-05-01~1997-07-01 |
09140-08021-000 |
from US $3.59 |
||
|
23
|
23
09306-12009-000 BUSH5MT; 1995-05-01~1997-07-01 |
09306-12009-000 |
US $1.92 |
||
|
24
|
24
09320-14018-000 CUSHION5MT; 1995-05-01~1997-07-01 |
09320-14018-000 |
US $2.24 |
||
|
25
|
25
28231-60D00-000 BUSH,GEAR SHIFT CONTROL5MT; 1995-05-01~1997-07-01 |
28231-60D00-000 |
US $2.88 |
||
|
26
|
26
28241-80F00-000 CASE,GEAR SHIFT LEVER,RR5MT; 1995-05-01~1997-07-01 |
28241-80F00-000 |
US $918.72 |
||
|
27
|
27
28243-80F00-000 BEARING,GR SHF LINER BALL5MT; 1995-05-01~1997-07-01 |
28243-80F00-000 |
US $36.80 |
||
|
28
|
28
25517-80F00-000 SEAL,GEAR SHIFT CONT SHAFT RR5MT; 1995-05-01~1997-07-01 |
25517-80F00-000 |
US $14.88 |
||
|
29
|
29
25651-74B00-000 BOOT,SHIFT&SELECT SFT OIL5MT; 1995-05-01~1997-07-01 |
25651-74B00-000 |
US $6.56 |
||
|
30
|
30
28280-80F00-000
ロッド,エクステンション
5MT; 1995-05-01~1997-07-01 |
28280-80F00-000 |
— | ||
|
31
|
31
01550-08203-000
Bolt
5MT; 1995-05-01~1997-07-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
31
|
31
01550-0820B-000 Bolt5MT; 1995-05-01~1997-07-01 |
01550-0820B-000 |
from US $0.91 |
||
|
31
|
31
01550-0820A-000 BOLTBolt, funnel bracket 5MT; 1995-05-01~1997-07-01 |
01550-0820A-000 |
from US $0.96 |
||
|
32
|
32
09103-10235-000 BOLT(10X50)Bolt (10x50) 5MT; 1995-05-01~1997-07-01 |
09103-10235-000 |
from US $2.24 |
||
|
33
|
33
08316-10103-000
Nut
5MT; 1995-05-01~1997-07-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
33
|
33
08316-1010B-000 NUT5MT; 1995-05-01~1997-07-01 |
08316-1010B-000 |
from US $0.80 |
||
|
34
|
34
09180-10141-000
スペーサ,10.2X14X33
5MT; 1995-05-01~1997-07-01 |
09180-10141-000 |
— | ||
| replacement | |||||
|
34
|
34
09180-10141-XC0 SPACER(10.2X14X33)5MT; 1995-05-01~1997-07-01 |
09180-10141-XC0 |
US $2.40 |
||
|
35
|
35
09305-14006-000 BUSH5MT; 1995-05-01~1997-07-01 |
09305-14006-000 |
US $1.98 |
||
|
36
|
36
29621-80F00-000 BRACKET,SHF CASE MTG NO.15MT; 1995-05-01~1997-07-01 |
29621-80F00-000 |
US $5.41 |
||
|
37
|
37
01550-08203-000
Bolt
5MT; 1995-05-01~1997-07-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
37
|
37
01550-0820B-000 Bolt5MT; 1995-05-01~1997-07-01 |
01550-0820B-000 |
from US $0.91 |
||
|
37
|
37
01550-0820A-000 BOLTBolt, funnel bracket 5MT; 1995-05-01~1997-07-01 |
01550-0820A-000 |
from US $0.96 |
||
|
38
|
38
29610-80F00-000
マウンチング,チェンジコントロール
5MT; 1995-05-01~1997-07-01 |
29610-80F00-000 |
— | ||
| replacement | |||||
|
38
|
38
29610-81A00-000 MOUNTING CHANGE CONTROL5MT; 1995-05-01~1997-07-01 |
29610-81A00-000 |
from US $61.96 |
||
|
39
|
39
29622-80F01-000
BRACKET,SHF CASE MTG NO.2
5MT; 1995-05-01~1997-07-01 |
29622-80F01-000 |
— | ||
|
40
|
40
08316-10083-000
Nut
5MT; 1995-05-01~1997-07-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
40
|
40
08316-1008B-000 NUT5MT; 1995-05-01~1997-07-01 |
08316-1008B-000 |
from US $0.76 |
||
