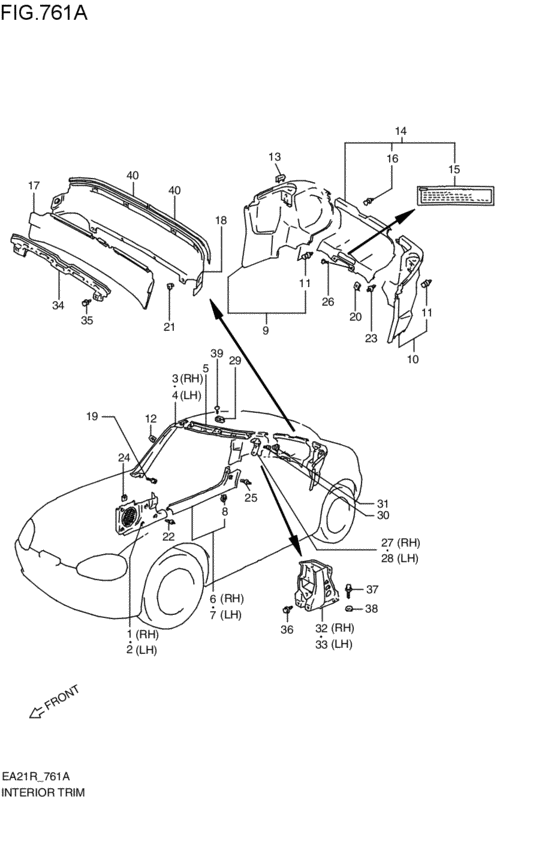

i trim interior (1995-05-01~1997-07-01) Diagram Suzuki CAPPUCCINO
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- grade
- BA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76121-80F00-5ES
Trim,dash side,r
ブラック; 1995-05-01~1997-07-01 |
76121-80F00-5ES |
— | ||
|
2
|
2
76131-80F00-5ES
Trim,dash side,l
ブラック; 1995-05-01~1997-07-01 |
76131-80F00-5ES |
— | ||
|
3
|
3
76141-80F00-5ES
トリム,フロントピラー,ライト(ブラック)
ブラック; 1995-05-01~1997-07-01 |
76141-80F00-5ES |
— | ||
|
4
|
4
76151-80F00-5ES
トリム,フロントピラー,レフト(ブラック)
ブラック; 1995-05-01~1997-07-01 |
76151-80F00-5ES |
— | ||
|
5
|
5
76161-80F01-5ES TRIM,HEADER UPPERブラック; 1995-05-01~1997-07-01 |
76161-80F01-5ES |
US $53.36 |
||
|
6
|
6
76170-80F00-5ES
SCUFF,SIDE SILL,R
ブラック; 1995-05-01~1997-07-01 |
76170-80F00-5ES |
— | ||
|
7
|
7
76180-80F00-5ES
SCUFF,SIDE SILL,L
ブラック; 1995-05-01~1997-07-01 |
76180-80F00-5ES |
— | ||
|
8
|
8
09409-10308-000 CLIP1995-05-01~1997-07-01 |
09409-10308-000 |
US $1.60 |
||
|
9
|
9
76210-80F00-5ES
TRIM,SEAT BELT TOWER,R
ブラック; 1995-05-01~1997-07-01 |
76210-80F00-5ES |
— | ||
|
10
|
10
76220-80F00-5ES
TRIM,SEAT BELT TOWER,L
ブラック; 1995-05-01~1997-07-01 |
76220-80F00-5ES |
— | ||
|
11
|
11
09409-08310-000 CLIP1995-05-01~1997-07-01 |
09409-08310-000 |
US $1.76 |
||
|
12
|
12
09409-10308-000 CLIP1995-05-01~1997-07-01 |
09409-10308-000 |
US $1.60 |
||
|
13
|
13
76213-80F00-0TC HOLDER,BELT TOWER TRIMブラック; 1995-05-01~1997-07-01 |
76213-80F00-0TC |
US $2.72 |
||
|
14
|
14
76230-80F01-5ES
TRIM,CABIN BACK
ブラック; 1995-05-01~1997-07-01 |
76230-80F01-5ES |
— | ||
|
15
|
15
79121-80F01-000 LABEL,RR PILLAR CAUTION1995-05-01~1997-07-01 |
79121-80F01-000 |
US $6.40 |
||
|
16
|
16
09409-08310-000 CLIP1995-05-01~1997-07-01 |
09409-08310-000 |
US $1.76 |
||
|
17
|
17
76240-80F00-5FE TRIM,PARTITION,FRONTブラック; 1995-05-01~1997-07-01 |
76240-80F00-5FE |
US $87.95 |
||
|
18
|
18
76251-80F00-5ES TRIM,RAPTITION REARブラック; 1995-05-01~1997-07-01 |
76251-80F00-5ES |
US $312.80 |
||
|
19
|
19
09111-06061-000
Bolt,6x16.5
1995-05-01~1997-07-01 |
09111-06061-000 |
— | ||
| replacement | |||||
|
19
|
19
09111-06094-000 BOLT(6X16.5)1995-05-01~1997-07-01 |
09111-06094-000 |
from US $0.96 |
||
|
20
|
20
09148-05019-000 NUT1995-05-01~1997-07-01 |
09148-05019-000 |
from US $0.96 |
||
|
21
|
21
09148-05037-000 CLIP1995-05-01~1997-07-01 |
09148-05037-000 |
from US $1.24 |
||
|
22
|
22
09409-07308-5PK CLIP(BLACK)ブラック; 1995-05-01~1997-07-01 |
09409-07308-5PK |
from US $0.95 |
||
|
23
|
23
09409-07308-5PK CLIP(BLACK)ブラック; 1995-05-01~1997-07-01 |
09409-07308-5PK |
from US $0.95 |
||
|
24
|
24
09148-04020-000 NUTNut 1995-05-01~1997-07-01 |
09148-04020-000 |
US $13.20 |
||
|
25
|
25
09409-07308-5PK CLIP(BLACK)ブラック; 1995-05-01~1997-07-01 |
09409-07308-5PK |
from US $0.95 |
||
|
26
|
26
03141-05163-000
Screw
1995-05-01~1997-07-01 |
03141-05163-000 |
— | ||
| replacement | |||||
|
26
|
26
03141-0516A-000 SCREW1995-05-01~1997-07-01 |
03141-0516A-000 |
from US $0.80 |
||
|
27
|
27
76415-80F00-000
Hook,front side lock,r
1995-05-01~1997-07-01 |
76415-80F00-000 |
— | ||
|
28
|
28
76416-80F00-000
Hook,front side lock,l
1995-05-01~1997-07-01 |
76416-80F00-000 |
— | ||
|
29
|
29
76417-80F00-000
FEMALE,CTR ROOF LOCATE
1995-05-01~1997-07-01 |
76417-80F00-000 |
— | ||
|
30
|
30
76418-80F00-000 SCREW,FRONT SIDE HOOK1995-05-01~1997-07-01 |
76418-80F00-000 |
US $2.76 |
||
|
31
|
31
76419-80F00-000 CAP,FR SIDE HOOK1995-05-01~1997-07-01 |
76419-80F00-000 |
US $3.16 |
||
|
32
|
32
76420-80F00-000
TOWER,SEAT BELT,R
1995-05-01~1997-07-01 |
76420-80F00-000 |
— | ||
|
33
|
33
76430-80F00-000
TOWER,SEAT BELT,L
1995-05-01~1997-07-01 |
76430-80F00-000 |
— | ||
|
34
|
34
76441-80F00-000
ブレース,シートベルトタワー
1995-05-01~1997-07-01 |
76441-80F00-000 |
— | ||
|
35
|
35
01550-06103-000
Bolt, front
1995-05-01~1997-07-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
35
|
35
01550-0610B-000 BoltBolt 1995-05-01~1997-07-01 |
01550-0610B-000 |
from US $0.80 |
||
|
35
|
35
01550-0610A-000 BOLT1995-05-01~1997-07-01 |
01550-0610A-000 |
from US $0.80 |
||
|
36
|
36
01550-10163-000
Bolt
1995-05-01~1997-07-01 |
01550-10163-000 |
— | ||
| replacements | |||||
|
36
|
36
01550-1016B-000 BoltPlug, oil gallery 1995-05-01~1997-07-01 |
01550-1016B-000 |
from US $0.96 |
||
|
36
|
36
01550-1016A-000 BoltPlug, oil gallery 1995-05-01~1997-07-01 |
01550-1016A-000 |
from US $4.96 |
||
|
37
|
37
01550-10253-000
Bolt
1995-05-01~1997-07-01 |
01550-10253-000 |
— | ||
| replacements | |||||
|
37
|
37
01550-1025B-000 BoltBolt, rr swgarm bracket, l 1995-05-01~1997-07-01 |
01550-1025B-000 |
from US $5.59 |
||
|
37
|
37
01550-1025A-000 BOLTBolt, drive gear 1995-05-01~1997-07-01 |
01550-1025A-000 |
from US $1.06 |
||
|
38
|
38
09160-12012-000
Rr shk absr up
1995-05-01~1997-07-01 |
09160-12012-000 |
— | ||
| replacement | |||||
|
38
|
38
09160-12082-000 WASHER(12.5X24X3.2)1995-05-01~1997-07-01 |
09160-12082-000 |
from US $1.76 |
||
|
39
|
39
02142-06163-000
Screw
1995-05-01~1997-07-01 |
02142-06163-000 |
— | ||
| replacement | |||||
|
39
|
39
02142-0616A-000 SCREW1995-05-01~1997-07-01 |
02142-0616A-000 |
from US $0.76 |
||
|
40
|
40
76461-80F02-000 TAPE,PARTITION PANEL UPPER1995-05-01~1997-07-01 |
76461-80F02-000 |
US $47.47 |
||
