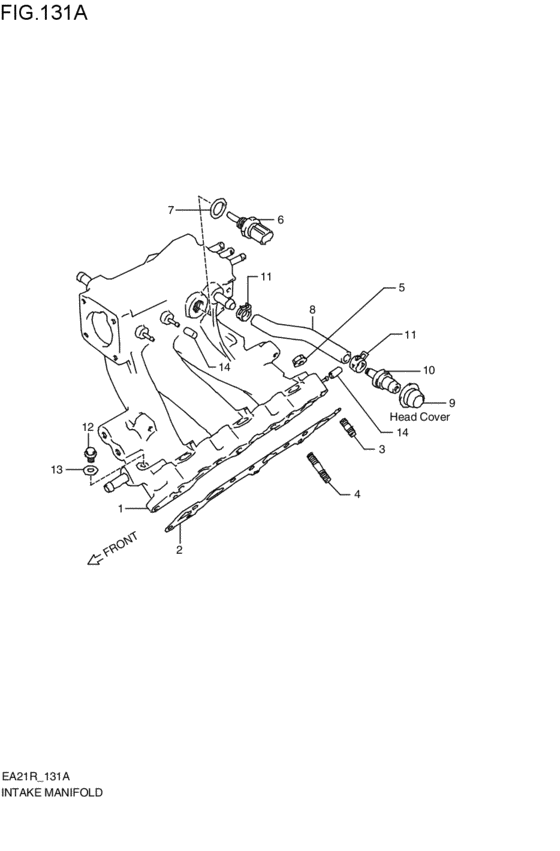

intake manifold (1995-05-01~1997-07-01) Diagram Suzuki CAPPUCCINO
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- grade
- BA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-80F50-000
マニホールド,インテーク
1995-05-01~1995-10-01 |
13110-80F50-000 |
— | ||
| replacements | |||||
|
1
|
1
13110-80F53-000
マニホールド,インテーク
1995-05-01~1995-10-01 |
13110-80F53-000 |
— | ||
|
1
|
1
07130-0510B-000 BOLTBolt, sensor 1995-05-01~1995-10-01 |
07130-0510B-000 |
from US $0.96 |
||
|
1
|
1
09250-04003-000 PLUG(OD:8)Plug (od:8) 1995-05-01~1995-10-01 |
09250-04003-000 |
US $1.12 |
||
|
1
|
1
13110-80F52-000
マニホールド,インテーク
1995-10-01~1996-11-01 |
13110-80F52-000 |
— | ||
| replacements | |||||
|
1
|
1
13110-80F53-000
マニホールド,インテーク
1995-10-01~1996-11-01 |
13110-80F53-000 |
— | ||
|
1
|
1
07130-0510B-000 BOLTBolt, sensor 1995-10-01~1996-11-01 |
07130-0510B-000 |
from US $0.96 |
||
|
1
|
1
09250-04003-000 PLUG(OD:8)Plug (od:8) 1995-10-01~1996-11-01 |
09250-04003-000 |
US $1.12 |
||
|
1
|
1
13110-80F53-000
マニホールド,インテーク
1997-01-01~1997-07-01 |
13110-80F53-000 |
— | ||
|
2
|
2
13119-73G02-000 GASKET, INTAKE MANIFOLD1995-05-01~1997-07-01 |
13119-73G02-000 |
US $24.80 |
||
|
3
|
3
01411-06203-000
New Genuine Part
1995-05-01~1996-11-01 |
01411-06203-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0620A-000 BOLT,STUD1995-05-01~1996-11-01 |
01411-0620A-000 |
US $0.91 |
||
|
4
|
4
01411-06353-000
Stud bolt
1995-05-01~1997-07-01 |
01411-06353-000 |
— | ||
| replacement | |||||
|
4
|
4
01411-0635A-000 BOLT,STUD1995-05-01~1997-07-01 |
01411-0635A-000 |
US $9.90 |
||
|
5
|
5
08316-10063-000
Nut
1995-05-01~1996-11-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT1995-05-01~1996-11-01 |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
13650-73G00-000
SENSOR,AIR TEMP
1995-05-01~1997-07-01 |
13650-73G00-000 |
— | ||
|
7
|
7
09168-12016-000 GASKET(12.2X21X0.8)1995-05-01~1997-07-01 |
09168-12016-000 |
from US $1.12 |
||
|
8
|
8
09354-80153-600 HOSE(8X15X600)1995-05-01~1997-07-01 |
09354-80153-600 |
from US $19.60 |
||
|
9
|
9
11198-58B00-000 SEAL,PCV VALVESeal, pcv valve 1995-05-01~1997-07-01 |
11198-58B00-000 |
US $5.20 |
||
| replacement | |||||
|
9
|
9
11198-98L00-000 Seal,pcv Valve1995-05-01~1997-07-01 |
11198-98L00-000 |
from US $2.74 |
||
|
10
|
10
18118-58B00-000 VALVE,PCV1995-05-01~1997-07-01 |
18118-58B00-000 |
US $26.40 |
||
|
11
|
11
09401-13417-000 CLIP1995-05-01~1997-07-01 |
09401-13417-000 |
from US $1.60 |
||
|
12
|
12
09360-06007-000 UNIONBolt, air duct 1995-05-01~1997-07-01 |
09360-06007-000 |
from US $1.76 |
||
|
13
|
13
09168-06018-000 GASKET(6.2X13X1.2)Gasket, oil check bolt 1995-05-01~1997-07-01 |
09168-06018-000 |
from US $1.06 |
||
|
14
|
14
09250-04003-000 PLUG(OD:8)Plug (od:8) 1995-05-01~1997-07-01 |
09250-04003-000 |
US $1.12 |
||
