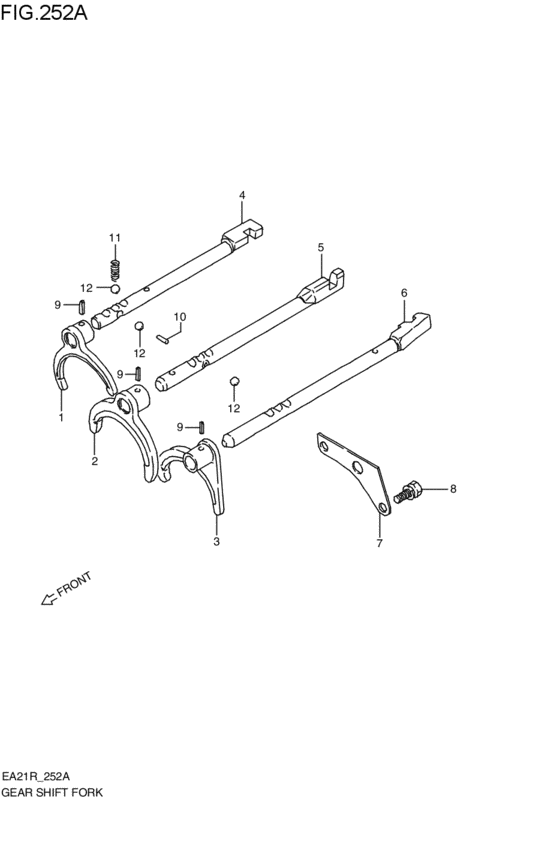

mt - gearlever fork (5MT; 1995-05-01~1997-07-01) Diagram Suzuki CAPPUCCINO
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- grade
- BA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25210-77D00-000
Fork,low speed gear shf
5MT; 1995-05-01~1997-07-01 |
25210-77D00-000 |
— | ||
| replacement | |||||
|
1
|
1
25210-78A20-000 FORK,LOW SPEED GEAR SHIFT5MT; 1995-05-01~1997-07-01 |
25210-78A20-000 |
US $36.48 |
||
|
2
|
2
25220-77D00-000 FORK,HIGH SPEED GEAR SHF5MT; 1995-05-01~1997-07-01 |
25220-77D00-000 |
US $36.43 |
||
|
3
|
3
25250-82C00-000
Fork,5th & rev gear shf
5MT; 1995-05-01~1997-07-01 |
25250-82C00-000 |
— | ||
| replacement | |||||
|
3
|
3
25250-82C01-000 FORK,5TH&REV GEAR SHF5MT; 1995-05-01~1997-07-01 |
25250-82C01-000 |
US $79.20 |
||
|
4
|
4
25410-80F00-000
SHAFT,LOW SPEED GEAR SHF
5MT; 1995-05-01~1997-07-01 |
25410-80F00-000 |
— | ||
|
5
|
5
25420-80F02-000
SHAFT,HIGH SPEED GEAR SHIFT
5MT; 1995-05-01~1997-07-01 |
25420-80F02-000 |
— | ||
|
6
|
6
25450-80F00-000
SHAFT,5TH&REV GEAR SHIFT
5MT; 1995-05-01~1997-07-01 |
25450-80F00-000 |
— | ||
|
7
|
7
25481-72001-000 PLATE,SHAFT STOP5MT; 1995-05-01~1997-07-01 |
25481-72001-000 |
US $3.42 |
||
|
8
|
8
09117-08007-000 BOLT(8X18)5MT; 1995-05-01~1997-07-01 |
09117-08007-000 |
US $11.80 |
||
|
9
|
9
09205-04003-000 PIN,SPRING(4.5X18)5MT; 1995-05-01~1997-07-01 |
09205-04003-000 |
US $1.60 |
||
|
10
|
10
09261-03002-000 PIN(3X9.8)5MT; 1995-05-01~1997-07-01 |
09261-03002-000 |
US $0.96 |
||
|
11
|
11
25415-80F00-000
スプリング,ギヤシフトフロントシャフトロケート
CHKK; 5MT; 1995-05-01~1997-07-01 |
25415-80F00-000 |
— | ||
| replacement | |||||
|
11
|
11
25415-77D00-000 SPRING,GEAR SHF LOCATINGCHKK; 5MT; 1995-05-01~1997-07-01 |
25415-77D00-000 |
US $1.92 |
||
|
12
|
12
06111-10003-000 BALL5MT; 1995-05-01~1997-07-01 |
06111-10003-000 |
from US $0.80 |
||
