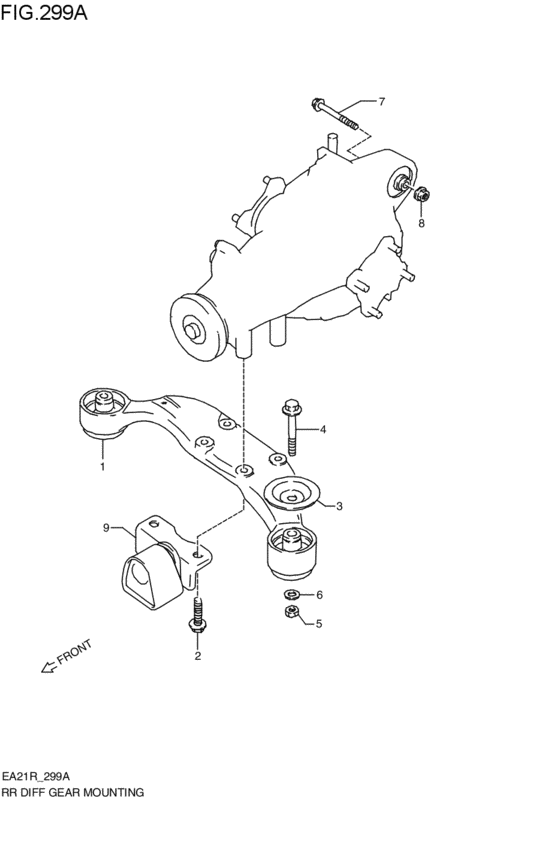

リヤデファレンシャルマウンチング (1995-05-01~1997-07-01) Diagram Suzuki CAPPUCCINO
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- grade
- BA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29650-80F00-000 ARM,DIFF MOUNT1995-05-01~1997-07-01 |
29650-80F00-000 |
US $425.92 |
||
|
2
|
2
09103-10235-000 BOLT(10X50)Bolt (10x50) 1995-05-01~1996-05-01 |
09103-10235-000 |
from US $2.24 |
||
|
2
|
2
01550-10553-000
Bolt
1996-05-01~1997-07-01 |
01550-10553-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-1055B-000 Bolt1996-05-01~1997-07-01 |
01550-1055B-000 |
from US $1.44 |
||
|
3
|
3
29657-80F00-000 STOPPER,DIFF MOUNT1995-05-01~1997-07-01 |
29657-80F00-000 |
US $32.02 |
||
|
4
|
4
01550-12753-000
ボルト
1995-05-01~1997-07-01 |
01550-12753-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-1275A-000 BOLT1995-05-01~1997-07-01 |
01550-1275A-000 |
US $1.92 |
||
|
5
|
5
08310-00123-000
Nut
1995-05-01~1997-07-01 |
08310-00123-000 |
— | ||
| replacement | |||||
|
5
|
5
08310-0012A-000 NUT1995-05-01~1997-07-01 |
08310-0012A-000 |
from US $0.76 |
||
|
6
|
6
08321-01123-000
Washer
1995-05-01~1997-07-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-0112A-000 WASHER,LOCK1995-05-01~1997-07-01 |
08321-0112A-000 |
from US $0.76 |
||
|
7
|
7
01550-10753-000
Bolt
1995-05-01~1997-07-01 |
01550-10753-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-1075A-000 Bolt1995-05-01~1997-07-01 |
01550-1075A-000 |
US $1.60 |
||
|
8
|
8
08316-10103-000
Nut
1995-05-01~1997-07-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1010B-000 NUT1995-05-01~1997-07-01 |
08316-1010B-000 |
from US $0.80 |
||
|
9
|
9
29659-80F30-000
ダンパディファレンシャルマウントブラケット
1996-05-01~1997-07-01 |
29659-80F30-000 |
— | ||
