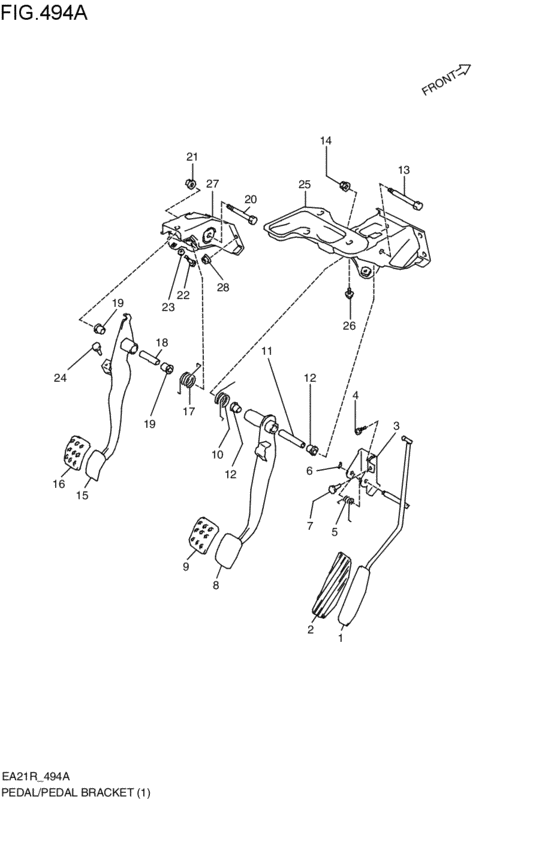

pedal / pedal bracket (5MT; 1995-05-01~1997-07-01) Diagram Suzuki CAPPUCCINO
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- grade
- BA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-80F10-000
Pedal,accelerator
5MT; 1995-05-01~1997-07-01 |
49410-80F10-000 |
— | ||
|
2
|
2
49451-80F00-000
PAD,ACCELERATOR PEDAL
5MT; 1995-05-01~1997-07-01 |
49451-80F00-000 |
— | ||
|
3
|
3
49511-70G00-000 BRACKET,ACCELERATOR PEDAL5MT; 1995-05-01~1997-07-01 |
49511-70G00-000 |
US $14.87 |
||
|
4
|
4
02112-36123-000
Screw
5MT; 1995-05-01~1997-07-01 |
02112-36123-000 |
— | ||
| replacements | |||||
|
4
|
4
02112-3612B-000 SCREW5MT; 1995-05-01~1997-07-01 |
02112-3612B-000 |
US $13.60 |
||
|
4
|
4
02112-3612A-000 SCREW5MT; 1995-05-01~1997-07-01 |
02112-3612A-000 |
from US $0.80 |
||
|
5
|
5
09448-15016-000 SPRING5MT; 1995-05-01~1997-07-01 |
09448-15016-000 |
US $30.20 |
||
|
6
|
6
08332-11075-000
E ring
5MT; 1995-05-01~1997-07-01 |
08332-11075-000 |
— | ||
| replacement | |||||
|
6
|
6
08332-1107A-000 E RING5MT; 1995-05-01~1997-07-01 |
08332-1107A-000 |
from US $0.96 |
||
|
7
|
7
09321-06026-000 CUSHION5MT; 1995-05-01~1997-07-01 |
09321-06026-000 |
from US $1.60 |
||
|
8
|
8
49610-80F00-000
Pedal comp,brake
5MT; 1995-05-01~1997-07-01 |
49610-80F00-000 |
— | ||
|
9
|
9
49751-79001-000
Pad, pedal
5MT; 1995-05-01~1997-07-01 |
49751-79001-000 |
— | ||
| replacement | |||||
|
9
|
9
49751-58J00-000 PAD,PEDAL5MT; 1995-05-01~1997-07-01 |
49751-58J00-000 |
from US $2.59 |
||
|
10
|
10
49691-80F00-000
SPRING,BRAKE PEDAL
5MT; 1995-05-01~1997-07-01 |
49691-80F00-000 |
— | ||
|
11
|
11
09180-10017-000 SPACER(10X13X66.6)5MT; 1995-05-01~1997-07-01 |
09180-10017-000 |
US $19.10 |
||
|
12
|
12
09306-13004-000 BUSH5MT; 1995-05-01~1997-07-01 |
09306-13004-000 |
US $14.40 |
||
| replacement | |||||
|
12
|
12
09307-13005-000 BUSHBushing 5MT; 1995-05-01~1997-07-01 |
09307-13005-000 |
from US $2.72 |
||
|
13
|
13
09103-10214-000
ボルト,10X80
5MT; 1995-05-01~1997-07-01 |
09103-10214-000 |
— | ||
| replacement | |||||
|
13
|
13
09103-10341-000 BOLT(10X80)5MT; 1995-05-01~1997-07-01 |
09103-10341-000 |
US $2.56 |
||
|
14
|
14
08316-10103-000
Nut
5MT; 1995-05-01~1997-07-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1010B-000 NUT5MT; 1995-05-01~1997-07-01 |
08316-1010B-000 |
from US $0.80 |
||
|
15
|
15
49810-80F01-000
PEDAL,CLUTCH
5MT; 1995-05-01~1997-07-01 |
49810-80F01-000 |
— | ||
|
16
|
16
49751-79001-000
Pad, pedal
5MT; 1995-05-01~1997-07-01 |
49751-79001-000 |
— | ||
| replacement | |||||
|
16
|
16
49751-58J00-000 PAD,PEDAL5MT; 1995-05-01~1997-07-01 |
49751-58J00-000 |
from US $2.59 |
||
|
17
|
17
49891-80F01-000 SPRING,CLUTCH PEDAL5MT; 1995-05-01~1997-07-01 |
49891-80F01-000 |
US $7.03 |
||
|
18
|
18
49871-80F00-000 SPACER,PEDAL SHAFT5MT; 1995-05-01~1997-07-01 |
49871-80F00-000 |
US $4.20 |
||
|
19
|
19
09306-13004-000 BUSH5MT; 1995-05-01~1997-07-01 |
09306-13004-000 |
US $14.40 |
||
| replacement | |||||
|
19
|
19
09307-13005-000 BUSHBushing 5MT; 1995-05-01~1997-07-01 |
09307-13005-000 |
from US $2.72 |
||
|
20
|
20
49881-80F00-000
Bolt, pedal shaft
5MT; 1995-05-01~1997-07-01 |
49881-80F00-000 |
— | ||
| replacement | |||||
|
20
|
20
09100-10304-000 BOLT(10X65)5MT; 1995-05-01~1997-07-01 |
09100-10304-000 |
US $35.30 |
||
|
21
|
21
08316-10103-000
Nut
5MT; 1995-05-01~1997-07-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
21
|
21
08316-1010B-000 NUT5MT; 1995-05-01~1997-07-01 |
08316-1010B-000 |
from US $0.80 |
||
|
22
|
22
09100-06088-000 BOLT(6X30)5MT; 1995-05-01~1997-07-01 |
09100-06088-000 |
US $22.40 |
||
|
23
|
23
08310-00063-000
Nut
5MT; 1995-05-01~1997-07-01 |
08310-00063-000 |
— | ||
| replacements | |||||
|
23
|
23
08310-0006B-000 NUTNut gear shift link rod 5MT; 1995-05-01~1997-07-01 |
08310-0006B-000 |
from US $0.76 |
||
|
23
|
23
08310-0006A-000 NUT5MT; 1995-05-01~1997-07-01 |
08310-0006A-000 |
from US $0.76 |
||
|
24
|
24
09321-06026-000 CUSHION5MT; 1995-05-01~1997-07-01 |
09321-06026-000 |
from US $1.60 |
||
|
25
|
25
49710-80F00-000
ブラケット,ブレーキペダル
5MT; 1995-05-01~1997-07-01 |
49710-80F00-000 |
— | ||
|
26
|
26
01550-08163-000
Bolt, holder
5MT; 1995-05-01~1997-07-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0816B-000 BOLT5MT; 1995-05-01~1997-07-01 |
01550-0816B-000 |
from US $0.91 |
||
|
26
|
26
01550-0816A-000 BOLTBolt, rear 5MT; 1995-05-01~1997-07-01 |
01550-0816A-000 |
from US $0.91 |
||
|
27
|
27
49720-80F00-000 BRACKET,CLUTCH PEDAL5MT; 1995-05-01~1997-07-01 |
49720-80F00-000 |
US $81.70 |
||
|
28
|
28
09159-08069-000
Nut
5MT; 1995-05-01~1997-07-01 |
09159-08069-000 |
— | ||
| replacement | |||||
|
28
|
28
09159-08135-000 NUT5MT; 1995-05-01~1997-07-01 |
09159-08135-000 |
from US $0.77 |
||
