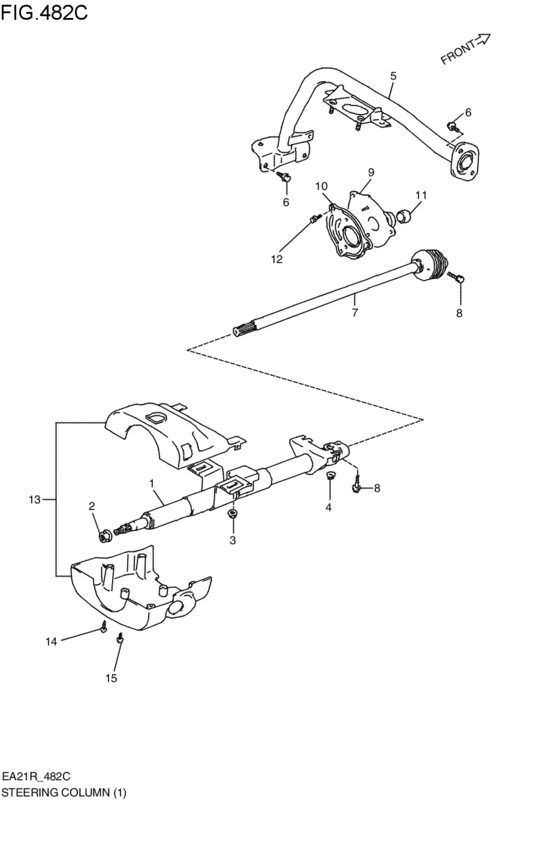

steering column (5MT; 1995-05-01~1997-07-01) Diagram Suzuki CAPPUCCINO
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- grade
- BA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-80F30-000
コラムアッシ,コラプシブルステアリング
ABS,エアバックシヨウ; 5MT:BA; 1995-05-01~1997-07-01 |
48200-80F30-000 |
— | ||
|
2
|
2
09159-12025-000 NUT5MT; 1995-05-01~1997-07-01 |
09159-12025-000 |
US $1.82 |
||
|
3
|
3
09159-08069-000
Nut
5MT; 1995-05-01~1997-07-01 |
09159-08069-000 |
— | ||
| replacement | |||||
|
3
|
3
09159-08135-000 NUT5MT; 1995-05-01~1997-07-01 |
09159-08135-000 |
US $1.12 |
||
|
4
|
4
08316-10083-000
Nut
5MT; 1995-05-01~1997-07-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1008B-000 NUT5MT; 1995-05-01~1997-07-01 |
08316-1008B-000 |
from US $0.76 |
||
|
5
|
5
75420-80F10-000
MEMBER,STRG SUPPORT
5MT; 1995-05-01~1997-07-01 |
75420-80F10-000 |
— | ||
|
6
|
6
01550-08163-000
Bolt, holder
5MT; 1995-05-01~1997-07-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0816B-000 BOLT5MT; 1995-05-01~1997-07-01 |
01550-0816B-000 |
from US $0.91 |
||
|
6
|
6
01550-0816A-000 BOLTBolt, rear 5MT; 1995-05-01~1997-07-01 |
01550-0816A-000 |
from US $0.91 |
||
|
7
|
7
48220-80F00-000 JOINT,STRG SHAFT5MT; 1995-05-01~1997-07-01 |
48220-80F00-000 |
US $682.88 |
||
|
8
|
8
09117-08053-000 BOLT(8X30)5MT; 1995-05-01~1997-07-01 |
09117-08053-000 |
US $20.20 |
||
|
9
|
9
48481-80F00-000
BOOT,STRG MDL SHAFT
5MT; 1995-05-01~1997-07-01 |
48481-80F00-000 |
— | ||
|
10
|
10
48482-80F00-000
プレート,ステアリングミドルシャフトブーツ
5MT; 1995-05-01~1997-07-01 |
48482-80F00-000 |
— | ||
|
11
|
11
48483-80F00-000
Bush,strg mdl shaft boot
5MT; 1995-05-01~1997-07-01 |
48483-80F00-000 |
— | ||
|
12
|
12
01550-06123-000
Bolt
5MT; 1995-05-01~1997-07-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0612B-000 BOLTBolt, clamp 5MT; 1995-05-01~1997-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
12
|
12
01550-0612A-000 BOLT5MT; 1995-05-01~1997-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
13
|
13
48400-80F22-5ES
Cover assy,strg clmn(black)
ブラック; 5MT; 1995-05-01~1997-07-01 |
48400-80F22-5ES |
— | ||
|
14
|
14
02112-05123-000
Screw 5x12
5MT; 1995-05-01~1997-07-01 |
02112-05123-000 |
— | ||
| replacement | |||||
|
14
|
14
02112-0512A-000 SCREW5MT; 1995-05-01~1997-07-01 |
02112-0512A-000 |
from US $0.80 |
||
|
15
|
15
03211-05123-000
Screw
5MT; 1995-05-01~1997-07-01 |
03211-05123-000 |
— | ||
| replacement | |||||
|
15
|
15
03211-0512A-000 SCREW5MT; 1995-05-01~1997-07-01 |
03211-0512A-000 |
US $0.80 |
||
