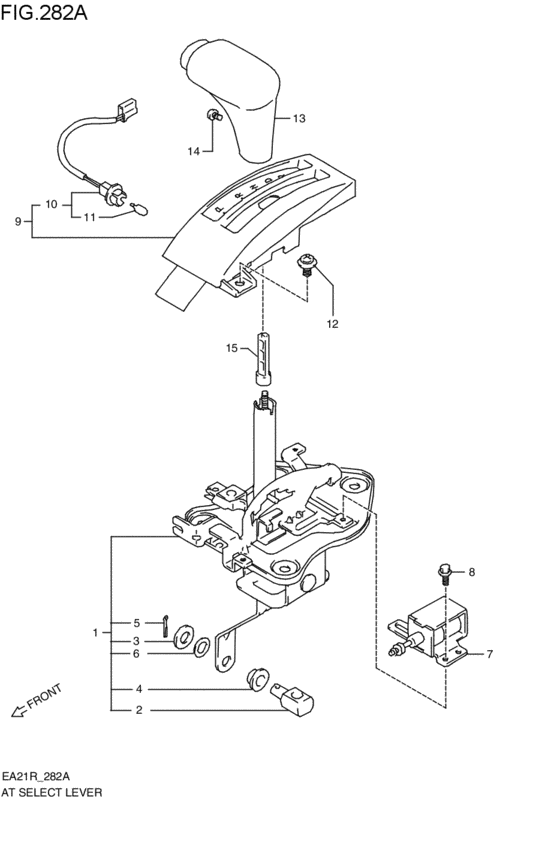

select lever (3AT; 1995-05-01~1997-07-01) Diagram Suzuki CAPPUCCINO
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 3AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-80F30-000
レバーアッシ,セレクト
3AT; 1995-05-01~1997-07-01 |
28110-80F30-000 |
— | ||
| replacement | |||||
|
1
|
1
28110-80F31-000
レバーアッシ,セレクト
3AT; 1995-05-01~1997-07-01 |
28110-80F31-000 |
— | ||
|
2
|
2
28291-85600-000 JOINT,T/F GR SHIFT3AT; 1995-05-01~1997-07-01 |
28291-85600-000 |
US $2.72 |
||
|
3
|
3
09160-08094-000 Washer 8x22x3Washer (8.2x20x1.6) 3AT; 1995-05-01~1997-07-01 |
09160-08094-000 |
US $1.47 |
||
| replacements | |||||
|
3
|
3
09160-08054-000 WASHER(8.5X20X1.6)3AT; 1995-05-01~1997-07-01 |
09160-08054-000 |
from US $0.91 |
||
|
3
|
3
09160-08124-000 WASHER(8.5X20X1.6)3AT; 1995-05-01~1997-07-01 |
09160-08124-000 |
from US $1.37 |
||
|
4
|
4
09305-08011-000 BUSH3AT; 1995-05-01~1997-07-01 |
09305-08011-000 |
US $1.60 |
||
|
5
|
5
04111-25208-000
25 x 20 cotter
3AT; 1995-05-01~1997-07-01 |
04111-25208-000 |
— | ||
| replacement | |||||
|
5
|
5
04111-2520A-000 PIN3AT; 1995-05-01~1997-07-01 |
04111-2520A-000 |
from US $0.80 |
||
|
6
|
6
09162-10008-000 WASHER,LOCKLock washer, rod end 3AT; 1995-05-01~1997-07-01 |
09162-10008-000 |
from US $1.28 |
||
|
7
|
7
28610-80F30-000
ソレノイド,シフトロック
3AT; 1995-05-01~1997-07-01 |
28610-80F30-000 |
— | ||
|
8
|
8
01580-05083-000 Bolt3AT; 1995-05-01~1997-07-01 |
01580-05083-000 |
US $13.20 |
||
|
9
|
9
28150-80F31-000
インジケータアッシ
3AT; 1995-05-01~1997-07-01 |
28150-80F31-000 |
— | ||
|
10
|
10
28180-51F00-000
LAMP ASSY
3AT; 1995-05-01~1997-07-01 |
28180-51F00-000 |
— | ||
|
11
|
11
09471-12077-000 BULB(12V1.7W,T10,WB121)STANLEY,WB121; 3AT; 1995-05-01~1997-07-01 |
09471-12077-000 |
from US $1.52 |
||
|
12
|
12
02142-05103-000
Screw 5x10
3AT; 1995-05-01~1997-07-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0510B-000 SCREWBolt 3AT; 1995-05-01~1997-07-01 |
02142-0510B-000 |
from US $0.76 |
||
|
13
|
13
28160-62B00-5ES
ノブアッシ,セレクタレバー(ブラック)
ブラック; 3AT; 1995-05-01~1995-10-01 |
28160-62B00-5ES |
— | ||
| replacements | |||||
|
13
|
13
28160-62B10-000
KNOB ASSY,SEL LEVER
ブラック; 3AT; 1995-05-01~1995-10-01 |
28160-62B10-000 |
— | ||
|
13
|
13
28164-62B10-000 GUIDE,RELEASE RODブラック; 3AT; 1995-05-01~1995-10-01 |
28164-62B10-000 |
US $5.81 |
||
|
13
|
13
28160-62B11-000 KNOB ASSY,SEL LEVERブラック; 3AT; 1995-05-01~1995-10-01 |
28160-62B11-000 |
US $30.91 |
||
|
13
|
13
28160-62B10-5PK
ノブアッシ,セレクタレバー(ブラック)
ブラック; 3AT; 1995-11-01~1997-07-01 |
28160-62B10-5PK |
— | ||
| replacements | |||||
|
13
|
13
28160-62B10-000
KNOB ASSY,SEL LEVER
ブラック; 3AT; 1995-11-01~1997-07-01 |
28160-62B10-000 |
— | ||
|
13
|
13
28160-62B11-000 KNOB ASSY,SEL LEVERブラック; 3AT; 1995-11-01~1997-07-01 |
28160-62B11-000 |
US $30.91 |
||
|
14
|
14
09125-05117-000 SCREW(5X6)Screw (5x6) 3AT; 1995-05-01~1997-07-01 |
09125-05117-000 |
from US $0.96 |
||
|
15
|
15
28164-62B10-000 GUIDE,RELEASE ROD3AT; 1995-05-01~1997-07-01 |
28164-62B10-000 |
US $5.81 |
||
