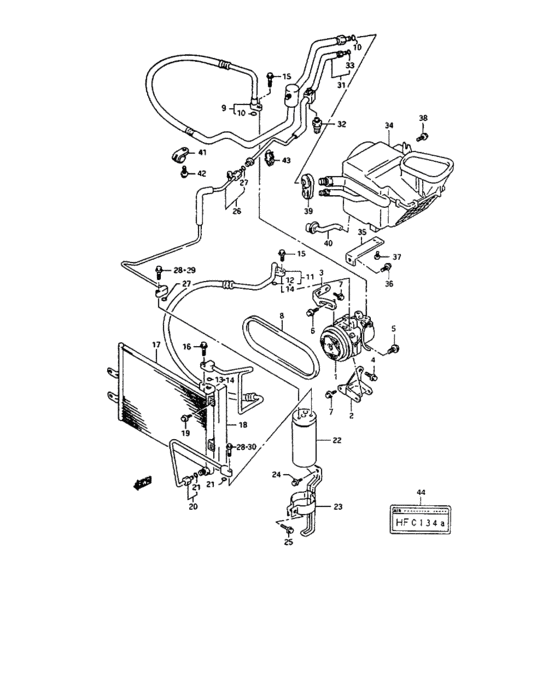

Air conditioner (AIR CONDITIONER) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95200-80F10-000
Compressor & magneto clutch
TYPE 1 |
95200-80F10-000 |
— | ||
|
1
|
1
95200-72B10-000
コンプレッサ/マグネトクラッチ
TYPE 2 |
95200-72B10-000 |
— | ||
| replacements | |||||
|
1
|
1
01550-0625B-000 BOLTBolt, head cover TYPE 2 |
01550-0625B-000 |
from US $0.91 |
||
|
1
|
1
95720-80F51-000
HOSE,DISCHARGE
TYPE 2 |
95720-80F51-000 |
— | ||
|
1
|
1
01550-0625A-000 BOLTBolt TYPE 2 |
01550-0625A-000 |
from US $0.96 |
||
|
1
|
1
01550-06253-000
Bolt (6x25)
TYPE 2 |
01550-06253-000 |
— | ||
|
2
|
2
95110-80F00-000
BRACKET,CPRSR
|
95110-80F00-000 |
— | ||
|
3
|
3
95121-80F00-000
ステー,コンプレッサアジャスト
|
95121-80F00-000 |
— | ||
|
4
|
4
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
4
|
4
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
5
|
5
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
5
|
5
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
6
|
6
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
6
|
6
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
7
|
7
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
7
|
7
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
8
|
8
95141-60D01-000
Vベルト,L:762
|
95141-60D01-000 |
— | ||
| replacement | |||||
|
8
|
8
95141-60D03-000 V-BELT,762 |
95141-60D03-000 |
US $17.60 |
||
|
9
|
9
95710-80F03-000 HOSE,SUCTTYPE 1 |
95710-80F03-000 |
US $601.92 |
||
|
9
|
9
95710-80F50-000
ホース,サクション
TYPE 2 |
95710-80F50-000 |
— | ||
|
10
|
10
09280-14012-000
Oリング,D:1.78,ID:14.0
TYPE 1 |
09280-14012-000 |
— | ||
| replacement | |||||
|
10
|
10
95897-60E00-000 O-RINGTYPE 1 |
95897-60E00-000 |
US $30.50 |
||
|
10
|
10
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) TYPE 2 |
95896-50G00-000 |
US $1.28 |
||
|
11
|
11
95720-80F01-000 HOSE,DISCHARGETYPE 1 |
95720-80F01-000 |
US $513.92 |
||
|
11
|
11
95720-80F50-000
ホース,ディスチャージ
TYPE 2 |
95720-80F50-000 |
— | ||
|
12
|
12
09280-11006-000
Oリング,D:1.78,ID:10.8
TYPE 1 |
09280-11006-000 |
— | ||
| replacement | |||||
|
12
|
12
95894-60E00-000 O-RINGTYPE 1 |
95894-60E00-000 |
US $1.28 |
||
|
13
|
13
09280-11007-000
Oリング,D:2.40,ID:11.0
TYPE 1 |
09280-11007-000 |
— | ||
| replacements | |||||
|
13
|
13
95895-50G00-000 O-RING,D:2.4 ID:10.8TYPE 1 |
95895-50G00-000 |
US $1.28 |
||
|
13
|
13
95895-60E00-000
New Genuine Part
TYPE 1 |
95895-60E00-000 |
— | ||
|
14
|
14
95895-50G00-000 O-RING,D:2.4 ID:10.8TYPE 2 |
95895-50G00-000 |
US $1.28 |
||
|
15
|
15
01550-08203-000
Bolt
TYPE 1 |
01550-08203-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0820B-000 BoltTYPE 1 |
01550-0820B-000 |
from US $0.91 |
||
|
15
|
15
01550-0820A-000 BOLTBolt, funnel bracket TYPE 1 |
01550-0820A-000 |
from US $0.96 |
||
|
15
|
15
01550-06203-000
Bolt
TYPE 2 |
01550-06203-000 |
— | ||
| replacement | |||||
|
15
|
15
01550-0620B-000 BOLTBolt, inspection cap TYPE 2 |
01550-0620B-000 |
from US $0.76 |
||
|
16
|
16
01550-08253-000
Bolt, rear
TYPE 1 |
01550-08253-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0825B-000 BOLTTYPE 1 |
01550-0825B-000 |
from US $0.96 |
||
|
16
|
16
01550-0825A-000 BOLTTYPE 1 |
01550-0825A-000 |
from US $1.06 |
||
|
16
|
16
01550-06253-000
Bolt (6x25)
TYPE 2 |
01550-06253-000 |
— | ||
|
17
|
17
95311-80F00-000 CONDENSERTYPE 1 |
95311-80F00-000 |
US $461.12 |
||
|
17
|
17
95311-80F50-000 CONDENSERTYPE 2 |
95311-80F50-000 |
US $510.40 |
||
|
18
|
18
95814-70B00-000
パッキング,コンデンサ
|
95814-70B00-000 |
— | ||
| replacement | |||||
|
18
|
18
95462-80F00-000 PACKING,AIR DAMPER |
95462-80F00-000 |
US $7.68 |
||
|
19
|
19
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
19
|
19
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
20
|
20
95731-80F00-000 PIPE,CONDENSER OUTLETTYPE 1 |
95731-80F00-000 |
US $43.20 |
||
|
20
|
20
95731-80F50-000 PIPE,CONDENSER OUTLETTYPE 2 |
95731-80F50-000 |
US $106.72 |
||
|
21
|
21
09280-07005-000
Oリング,D:1.42,ID:6.8
TYPE 1 |
09280-07005-000 |
— | ||
| replacement | |||||
|
21
|
21
95891-60E00-000 O-RINGTYPE 1 |
95891-60E00-000 |
US $0.70 |
||
|
21
|
21
95891-50G00-000 O-RING,D:1.8 ID:6.7TYPE 2 |
95891-50G00-000 |
from US $0.96 |
||
|
22
|
22
95330-60B10-000
レシーバドライヤ
TYPE 1 |
95330-60B10-000 |
— | ||
| replacement | |||||
|
22
|
22
95330-60EG0-000
RECEIVER
TYPE 1 |
95330-60EG0-000 |
— | ||
|
22
|
22
95330-72B00-000 RECEIVER DRYERTYPE 2 |
95330-72B00-000 |
US $107.24 |
||
|
23
|
23
95350-80F00-000
ブラケット,レシーバ
|
95350-80F00-000 |
— | ||
| replacement | |||||
|
23
|
23
95350-80F01-000
BRACKET,RCVR
|
95350-80F01-000 |
— | ||
|
24
|
24
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
24
|
24
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
25
|
25
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
25
|
25
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
26
|
26
95732-80F00-000 PIPE,RECEIVER OUTLET NO.1TYPE 1 |
95732-80F00-000 |
US $115.55 |
||
|
26
|
26
95732-80F50-000 PIPE,RECEIVER OUTLET NO.1TYPE 2 |
95732-80F50-000 |
US $59.20 |
||
|
27
|
27
09280-07005-000
Oリング,D:1.42,ID:6.8
TYPE 1 |
09280-07005-000 |
— | ||
| replacement | |||||
|
27
|
27
95891-60E00-000 O-RINGTYPE 1 |
95891-60E00-000 |
US $0.70 |
||
|
27
|
27
95891-50G00-000 O-RING,D:1.8 ID:6.7TYPE 2 |
95891-50G00-000 |
from US $0.96 |
||
|
28
|
28
01550-06253-000
Bolt (6x25)
TYPE 1 |
01550-06253-000 |
— | ||
|
29
|
29
01550-06203-000
Bolt
TYPE 2 |
01550-06203-000 |
— | ||
| replacement | |||||
|
29
|
29
01550-0620B-000 BOLTBolt, inspection cap TYPE 2 |
01550-0620B-000 |
from US $0.76 |
||
|
30
|
30
01550-06253-000
Bolt (6x25)
TYPE 2 |
01550-06253-000 |
— | ||
|
31
|
31
95733-80F00-000
Pipe,rcvr out no.2
TYPE 1 |
95733-80F00-000 |
— | ||
| replacement | |||||
|
31
|
31
95733-80F01-000 PIPE,RECEIVER OUTLET NO.2TYPE 1 |
95733-80F01-000 |
US $209.76 |
||
|
31
|
31
95733-80F50-000
パイプ,レシーバアウト,NO.2
TYPE 2 |
95733-80F50-000 |
— | ||
| replacement | |||||
|
31
|
31
95733-80F52-000 PIPE,RECEIVER OUTLET NO.2TYPE 2 |
95733-80F52-000 |
US $220.80 |
||
|
32
|
32
95526-60C00-000
Switch comp,dual pressure
TYPE 1 |
95526-60C00-000 |
— | ||
| replacement | |||||
|
32
|
32
95526-60C10-000 SWITCH,DUAL PRESSURETYPE 1 |
95526-60C10-000 |
US $76.54 |
||
|
32
|
32
95526-50G10-000
Switch, dual pressure
TYPE 2 |
95526-50G10-000 |
— | ||
| replacement | |||||
|
32
|
32
95526-50G30-000 SWITCH,DUAL PRESSURETYPE 2 |
95526-50G30-000 |
US $44.84 |
||
|
33
|
33
09280-07005-000
Oリング,D:1.42,ID:6.8
TYPE 1 |
09280-07005-000 |
— | ||
| replacement | |||||
|
33
|
33
95891-60E00-000 O-RINGTYPE 1 |
95891-60E00-000 |
US $0.70 |
||
|
33
|
33
95891-50G00-000 O-RING,D:1.8 ID:6.7TYPE 2 |
95891-50G00-000 |
from US $0.96 |
||
|
34
|
34
95400-80F10-000
クーリングユニット
TYPE 1 |
95400-80F10-000 |
— | ||
|
34
|
34
95400-80F50-000
Unit, evaporator
TYPE 2 |
95400-80F50-000 |
— | ||
| replacement | |||||
|
34
|
34
95400-80F60-000
COOLING UNIT
TYPE 2 |
95400-80F60-000 |
— | ||
|
35
|
35
95491-80F00-000
BRACKET,HTR CONTROL BOX
|
95491-80F00-000 |
— | ||
|
36
|
36
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
36
|
36
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
36
|
36
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
37
|
37
03541-05103-000
Screw5 x 10
|
03541-05103-000 |
— | ||
| replacements | |||||
|
37
|
37
03541-0510B-000 SCREW |
03541-0510B-000 |
from US $0.80 |
||
|
37
|
37
03541-0510A-000 SCREWScrew, rr cover |
03541-0510A-000 |
from US $0.68 |
||
|
38
|
38
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
38
|
38
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
38
|
38
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
39
|
39
95833-50E01-000 GROMMET,JOINT PIPE |
95833-50E01-000 |
US $7.95 |
||
|
40
|
40
95481-80F00-000
Hose, drain
|
95481-80F00-000 |
— | ||
| replacement | |||||
|
40
|
40
95481-80F10-000
Hose,drain
|
95481-80F10-000 |
— | ||
|
41
|
41
95772-70C51-000 CLAMP,SUCT HOSE |
95772-70C51-000 |
US $9.83 |
||
|
42
|
42
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
42
|
42
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
42
|
42
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
43
|
43
09403-08321-000 CLAMP |
09403-08321-000 |
US $1.76 |
||
|
44
|
44
95955-72B00-000 LABEL,REFRIGERANT |
95955-72B00-000 |
US $1.60 |
||
