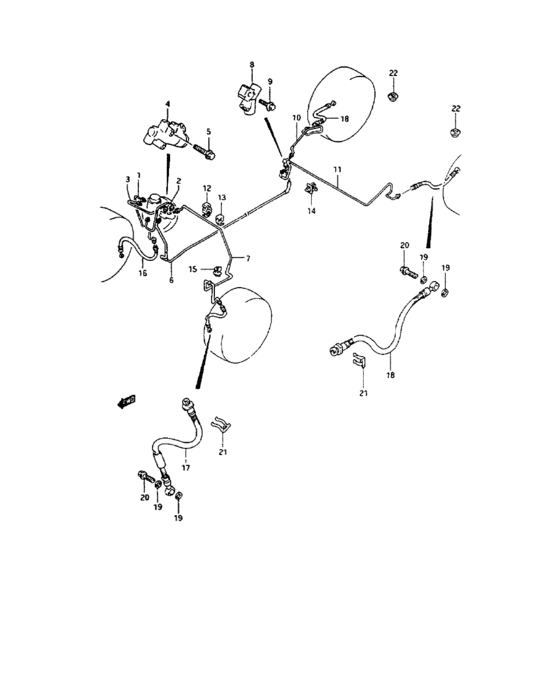

Brake piping Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51420-80F00-000 PIPE,MA PRI TO BK HOSE R |
51420-80F00-000 |
US $16.12 |
||
|
2
|
2
51410-80F20-000
Pipe, master primary to valve
|
51410-80F20-000 |
— | ||
|
3
|
3
51440-80F20-000
Pipe, master secondary to valv,e
|
51440-80F20-000 |
— | ||
|
4
|
4
51920-80F00-000
Valve assy, p & b
|
51920-80F00-000 |
— | ||
|
5
|
5
01550-06403-000
Bolt (green)
|
01550-06403-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0640B-000 Bolt |
01550-0640B-000 |
from US $0.96 |
||
|
5
|
5
01550-0640A-000 BoltBolt (l:40) |
01550-0640A-000 |
from US $3.83 |
||
|
6
|
6
51450-80F20-000
Pipe,valve to joint
|
51450-80F20-000 |
— | ||
|
7
|
7
51430-80F20-000 PIPE,VALVE TO FR BK HOSE L |
51430-80F20-000 |
US $33.49 |
||
|
8
|
8
51620-60B00-000
JOINT,3WAY BRAKE
|
51620-60B00-000 |
— | ||
|
9
|
9
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
9
|
9
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
10
|
10
51460-80F00-000
PIPE,JOINT TO RR BK HOSE R
|
51460-80F00-000 |
— | ||
|
11
|
11
51470-80F00-000 PIPE,JOINT TO RR BK HOSE L |
51470-80F00-000 |
US $30.54 |
||
|
12
|
12
51751-60B00-000 CLAMP,BRAKE PIPE |
51751-60B00-000 |
US $1.60 |
||
|
13
|
13
51752-70B00-000 CLAMP,BK PIPE |
51752-70B00-000 |
US $1.60 |
||
|
14
|
14
51771-60B00-000 CLAMP,BRAKE PIPE |
51771-60B00-000 |
US $2.13 |
||
|
15
|
15
51781-60B00-000
CLAMP,BRAKE PIPE COVER
|
51781-60B00-000 |
— | ||
|
16
|
16
51550-80F00-000
Hose, front disc flexible rh
|
51550-80F00-000 |
— | ||
| replacement | |||||
|
16
|
16
51560-80F00-000 HOSE,FR DISK FLEXIBLE |
51560-80F00-000 |
US $34.21 |
||
|
17
|
17
51560-80F00-000 HOSE,FR DISK FLEXIBLE |
51560-80F00-000 |
US $34.21 |
||
|
18
|
18
51570-80F00-000 HOSE,RR DISC FLEXIBLE |
51570-80F00-000 |
US $29.65 |
||
|
19
|
19
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
|
20
|
20
09360-10026-000 Union bolt |
09360-10026-000 |
from US $1.85 |
||
|
21
|
21
09383-13001-000 E RING |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
21
|
21
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.60 |
||
|
22
|
22
09250-16015-000 PLUG(OD:24.5)Cap, fr wheel house |
09250-16015-000 |
US $15.50 |
||
