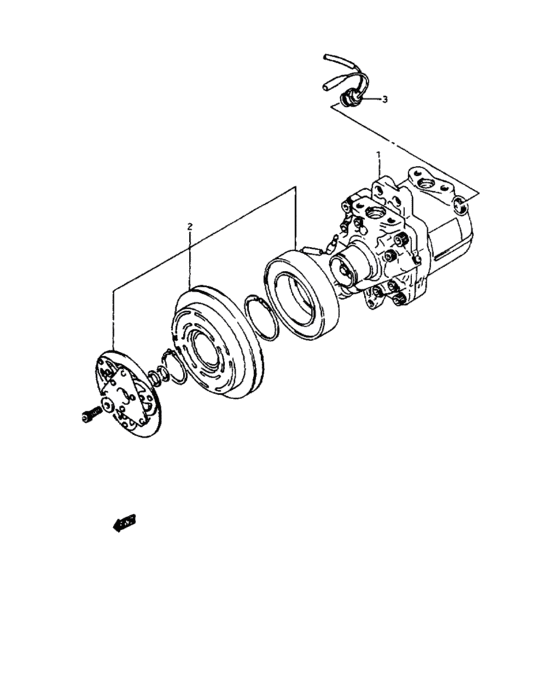

Compressor (COMPRESSOR) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95200-72B10-000
コンプレッサ/マグネトクラッチ
TYPE 2 |
95200-72B10-000 |
— | ||
| replacements | |||||
|
|
01550-0625B-000 BOLTBolt, head cover TYPE 2 |
01550-0625B-000 |
from US $0.91 |
||
|
|
95720-80F51-000
HOSE,DISCHARGE
TYPE 2 |
95720-80F51-000 |
— | ||
|
|
01550-0625A-000 BOLTBolt TYPE 2 |
01550-0625A-000 |
from US $0.96 |
||
|
|
01550-06253-000
Bolt (6x25)
TYPE 2 |
01550-06253-000 |
— | ||
|
|
95200-80F10-000
Compressor & magneto clutch
TYPE 1 |
95200-80F10-000 |
— | ||
|
1
|
1
95230-55C02-000
Compressor
TYPE 1 |
95230-55C02-000 |
— | ||
|
1
|
1
95230-72B10-000
Compressor
TYPE 2 |
95230-72B10-000 |
— | ||
|
2
|
2
95210-78B01-000
Clutch, magnet
|
95210-78B01-000 |
— | ||
| replacement | |||||
|
2
|
2
95210-78B03-000 CLUTCH,MAGNET |
95210-78B03-000 |
US $422.40 |
||
|
3
|
3
95527-70B02-000 SWITCH,THERMALTYPE 1 |
95527-70B02-000 |
US $48.21 |
||
|
3
|
3
95527-72B00-000 SWITCH,THERMALTYPE 2 |
95527-72B00-000 |
US $22.40 |
||
