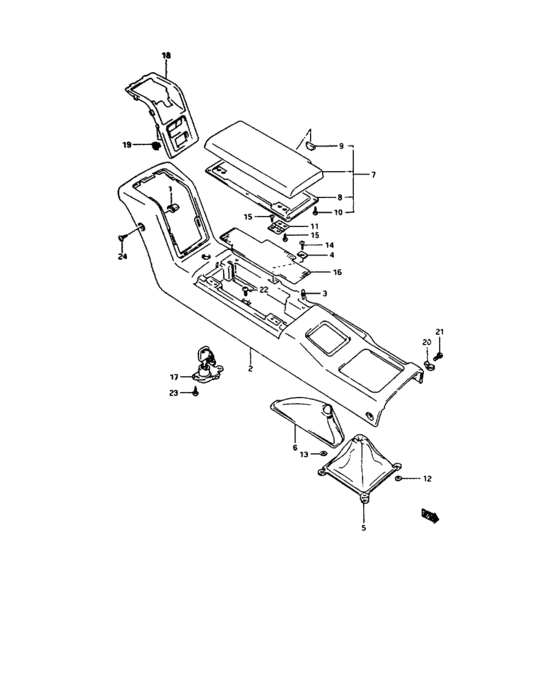

Console box (CONSOLE BOX) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72113-86000-000
NUT,RADIATOR GRILLE CTR
|
72113-86000-000 |
— | ||
|
2
|
2
75810-80F00-5ES
ボックス,フロアコンソール(ブラック)
|
75810-80F00-5ES |
— | ||
| replacement | |||||
|
2
|
2
75810-80F02-5ES BOX,FLOOR CONSOLE |
75810-80F02-5ES |
US $450.56 |
||
|
3
|
3
75813-80F00-000 CUSHION |
75813-80F00-000 |
US $2.47 |
||
|
4
|
4
75814-80F00-000 PLATE,STOPPER |
75814-80F00-000 |
US $3.02 |
||
|
5
|
5
75820-80F00-6PT
BOOT,GR SHIFT
|
75820-80F00-6PT |
— | ||
|
6
|
6
75830-80F00-6PT
BOOT,PARKING BRAKE
|
75830-80F00-6PT |
— | ||
|
7
|
7
75840-80F00-5FE
LID,FLOOR CSL
|
75840-80F00-5FE |
— | ||
|
8
|
8
75844-80F00-000
COVER,FL CONSOLE LID
|
75844-80F00-000 |
— | ||
|
9
|
9
75850-80F00-000
Stopper comp,console lid
|
75850-80F00-000 |
— | ||
|
10
|
10
03521-04103-000
スクリュ
|
03521-04103-000 |
— | ||
| replacement | |||||
|
10
|
10
03521-0410A-000 SCREW |
03521-0410A-000 |
US $10.30 |
||
|
11
|
11
75870-80F00-000 HINGE,FLOOR CONSOLE LID |
75870-80F00-000 |
US $14.61 |
||
|
12
|
12
09148-03010-000 NUT |
09148-03010-000 |
from US $1.28 |
||
|
13
|
13
09148-03010-000 NUT |
09148-03010-000 |
from US $1.28 |
||
|
14
|
14
03521-04103-000
スクリュ
|
03521-04103-000 |
— | ||
| replacement | |||||
|
14
|
14
03521-0410A-000 SCREW |
03521-0410A-000 |
US $10.30 |
||
|
15
|
15
03521-04103-000
スクリュ
|
03521-04103-000 |
— | ||
| replacement | |||||
|
15
|
15
03521-0410A-000 SCREW |
03521-0410A-000 |
US $10.30 |
||
|
16
|
16
75817-80F00-5PK
SHEET,CONSOLE BOX
|
75817-80F00-5PK |
— | ||
|
17
|
17
75800-80810-5PK
Lock assy, console lid
TYPE 1 |
75800-80810-5PK |
— | ||
| replacement | |||||
|
17
|
17
75800-80811-5PK
Lock assy,console lid
TYPE 1 |
75800-80811-5PK |
— | ||
|
17
|
17
75800-80811-5PK
Lock assy,console lid
TYPE 2 |
75800-80811-5PK |
— | ||
|
18
|
18
75815-80F00-5ES
GARNISH,FL CSL
|
75815-80F00-5ES |
— | ||
|
19
|
19
73512-50F00-000
Clip, floor console
|
73512-50F00-000 |
— | ||
|
20
|
20
09251-12001-5ES CAP(BLACK) |
09251-12001-5ES |
US $23.20 |
||
|
21
|
21
02112-05163-000
Screw
|
02112-05163-000 |
— | ||
| replacements | |||||
|
21
|
21
02112-0516B-000 SCREW |
02112-0516B-000 |
from US $0.80 |
||
|
21
|
21
02112-0516A-000 SCREW |
02112-0516A-000 |
from US $0.80 |
||
|
22
|
22
02142-05163-000
Bolt
|
02142-05163-000 |
— | ||
| replacements | |||||
|
22
|
22
02142-0516B-000 SCREW |
02142-0516B-000 |
from US $0.80 |
||
|
22
|
22
02142-0516A-000 SCREWScrew |
02142-0516A-000 |
from US $0.76 |
||
|
23
|
23
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
23
|
23
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
24
|
24
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
24
|
24
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
