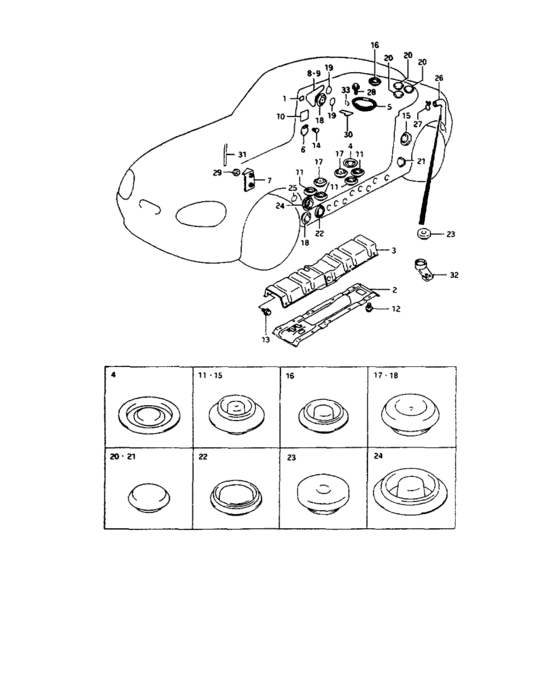

Cover and cap (COVER AND CAP) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75551-55F00-000
シール,140X190
|
75551-55F00-000 |
— | ||
| replacement | |||||
|
1
|
1
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
from US $6.72 |
||
|
2
|
2
75411-80F00-000 COVER,FL TUNNEL,LWR |
75411-80F00-000 |
US $202.40 |
||
|
3
|
3
75412-80F00-000 INSULATOR,FLOOR TUNNEL |
75412-80F00-000 |
US $211.60 |
||
|
4
|
4
75441-80F00-000
キャップ,メインフロアドレーン
|
75441-80F00-000 |
— | ||
|
5
|
5
75460-80F00-000
リッド,フューエルタンクサービスホール
|
75460-80F00-000 |
— | ||
|
6
|
6
75471-80F00-000
Valve,quarter inner
|
75471-80F00-000 |
— | ||
|
7
|
7
75491-80F00-5PK PEDAL,FOOTREST |
75491-80F00-5PK |
US $13.21 |
||
|
8
|
8
76261-80F00-000
Seal, qtr inner rh
|
76261-80F00-000 |
— | ||
| replacement | |||||
|
8
|
8
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
from US $6.72 |
||
|
9
|
9
76262-80F00-000
Seal, qtr inner lh
|
76262-80F00-000 |
— | ||
| replacement | |||||
|
9
|
9
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
from US $6.72 |
||
|
10
|
10
75551-55F00-000
シール,140X190
|
75551-55F00-000 |
— | ||
| replacement | |||||
|
10
|
10
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
from US $6.72 |
||
|
11
|
11
83919-82000-000 PLUG,DOOR INNER REARCap, floor drain |
83919-82000-000 |
from US $0.74 |
||
|
12
|
12
09118-08149-000
ボルト
|
09118-08149-000 |
— | ||
| replacement | |||||
|
12
|
12
01580-0816A-000 Bolt |
01580-0816A-000 |
from US $0.96 |
||
|
13
|
13
09118-08149-000
ボルト
|
09118-08149-000 |
— | ||
| replacement | |||||
|
13
|
13
01580-0816A-000 Bolt |
01580-0816A-000 |
from US $0.96 |
||
|
14
|
14
09229-04019-000 RIVETRivet, lower cover 1 |
09229-04019-000 |
US $14.40 |
||
|
15
|
15
83919-82000-000 PLUG,DOOR INNER REARCap, floor drain |
83919-82000-000 |
from US $0.74 |
||
|
16
|
16
09250-25007-000 CAP(OD:25.0) |
09250-25007-000 |
from US $1.31 |
||
|
17
|
17
09250-30015-000
Cap
|
09250-30015-000 |
— | ||
| replacement | |||||
|
17
|
17
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
|
18
|
18
09250-30015-000
Cap
|
09250-30015-000 |
— | ||
| replacement | |||||
|
18
|
18
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
|
19
|
19
75551-55F00-000
シール,140X190
|
75551-55F00-000 |
— | ||
| replacement | |||||
|
19
|
19
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
from US $6.72 |
||
|
20
|
20
09250-40002-000 CAP(OD:52) |
09250-40002-000 |
from US $1.37 |
||
|
21
|
21
09250-40002-000 CAP(OD:52) |
09250-40002-000 |
from US $1.37 |
||
|
22
|
22
09250-55001-000 CAP(OD:63.5) |
09250-55001-000 |
US $19.10 |
||
|
23
|
23
09308-14008-000 GROMMET |
09308-14008-000 |
US $59.60 |
||
|
24
|
24
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
|
25
|
25
77181-70B00-000
シール,ロケーシヨンホール
|
77181-70B00-000 |
— | ||
| replacement | |||||
|
25
|
25
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
from US $6.72 |
||
|
26
|
26
09352-12163-600
HOSE(12X16X600)
L : 600->550 |
09352-12163-600 |
— | ||
| replacement | |||||
|
26
|
26
09352-12164-600 Hose(12X16X600)L : 600->550 |
09352-12164-600 |
US $13.38 |
||
|
27
|
27
09401-14401-000 CLIP |
09401-14401-000 |
from US $3.47 |
||
|
28
|
28
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.96 |
||
|
28
|
28
01550-0610A-000 Bolt |
01550-0610A-000 |
from US $0.96 |
||
|
29
|
29
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
29
|
29
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
30
|
30
75551-55F00-000
シール,140X190
|
75551-55F00-000 |
— | ||
| replacement | |||||
|
30
|
30
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
from US $6.72 |
||
|
31
|
31
76281-80F00-000
フィルム,インストゥルメントパネル
|
76281-80F00-000 |
— | ||
|
32
|
32
75482-80F00-000 HOLDER,FUEL DRAIN HOSE |
75482-80F00-000 |
US $3.64 |
||
|
33
|
33
75551-55F00-000
シール,140X190
|
75551-55F00-000 |
— | ||
| replacement | |||||
|
33
|
33
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
from US $6.72 |
||
