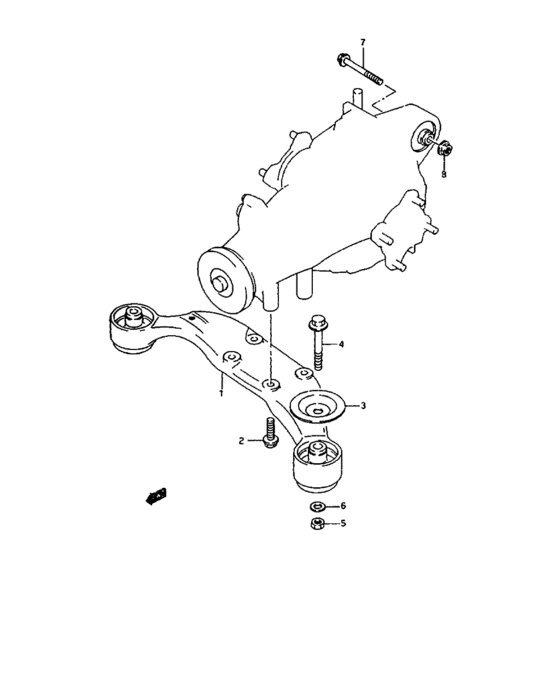

Defferential gear mounting (DEFFERENTIAL GEAR MOUNTING) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29650-80F00-000 ARM,DIFF MOUNT |
29650-80F00-000 |
US $425.92 |
||
|
2
|
2
09103-10235-000 BOLT(10X50)Bolt (10x50) |
09103-10235-000 |
from US $2.24 |
||
|
3
|
3
29657-80F00-000 STOPPER,DIFF MOUNT |
29657-80F00-000 |
US $32.02 |
||
|
4
|
4
01550-12753-000
BOLT
|
01550-12753-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-1275A-000 Bolt |
01550-1275A-000 |
from US $2.08 |
||
|
5
|
5
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
5
|
5
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
6
|
6
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
7
|
7
01550-10753-000
Bolt
|
01550-10753-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-1075A-000 Bolt |
01550-1075A-000 |
US $1.76 |
||
|
8
|
8
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
